SHOP MANUAL MT26-31 - 06.2005
Engine
Tier-3 710655-
Ch 1 page 78

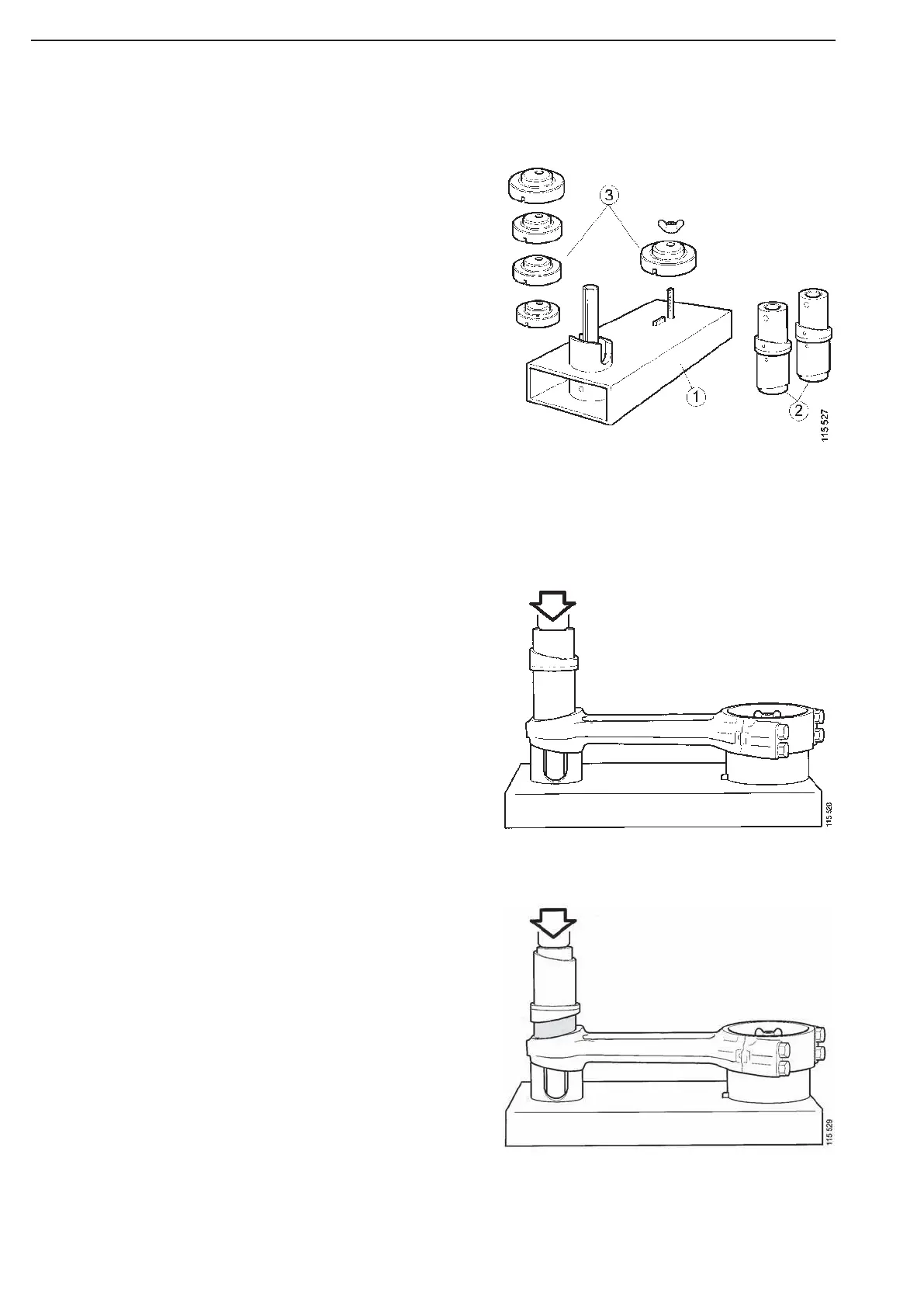

Use tool 512564 when renewing the bearing
bushing.
The tool comprises three parts:
1. Pressplate with guide pin
2. Press drift
3. Supports
There are different supports, depending on the
engine type.
The support marked with a D should be used for
the 12engine.
Important!
Before carrying out this
procedure, the connecting rod should be
checked for straightness in accordance
with Checking connecting rods
Work description
1.
Fit the correct support on the pressplate and
place the connecting rod so that the wide
end of the connecting rod is resting against
the support. Turn the press drift with the
smaller diameter against the bearing
bushing and press it out.
2.
Turn over the press drift and mount a new
bearing bushing onto it. Press in the bearing
bushing.
Renewal of bearing bushing in connecting rod
