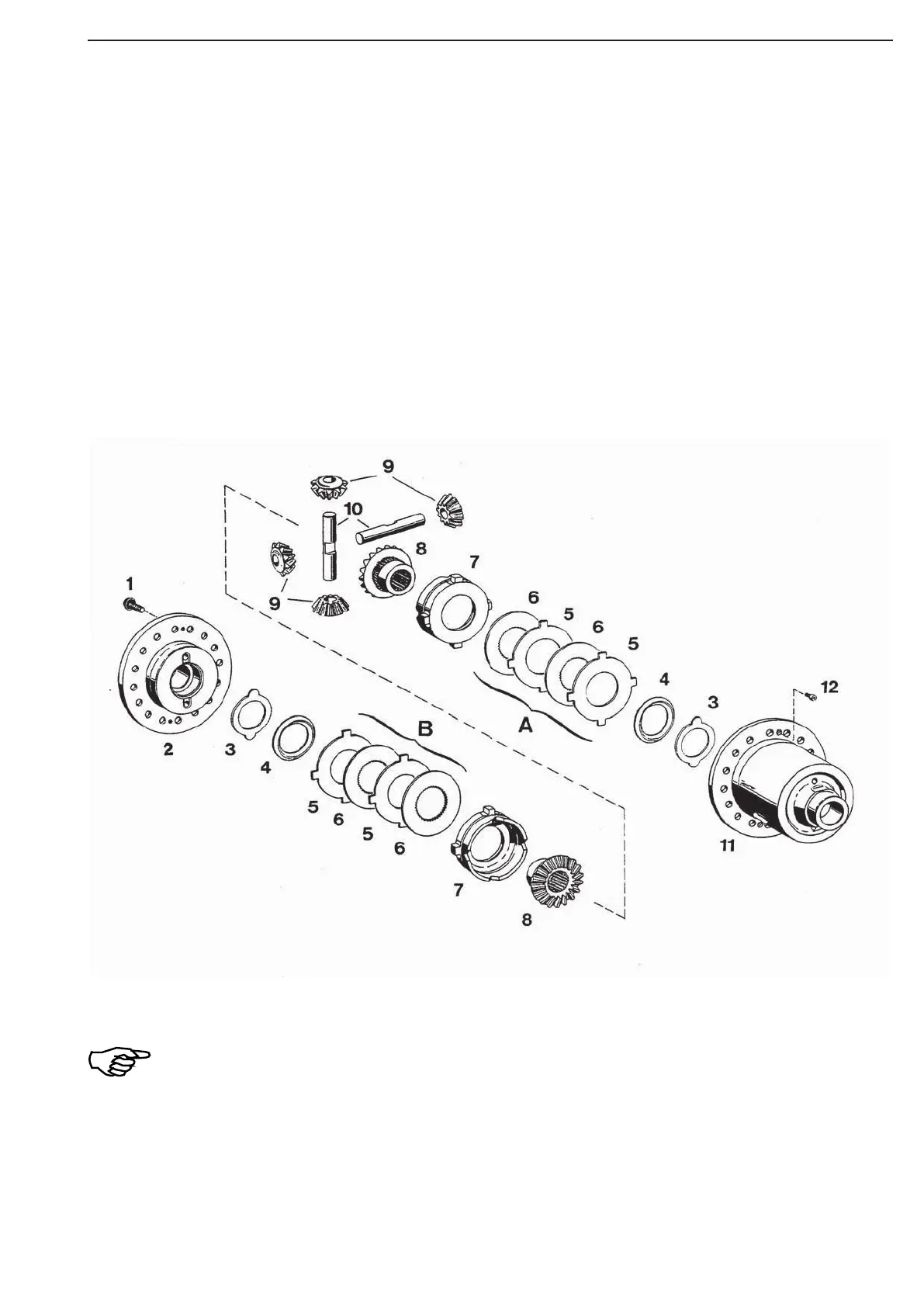

The following Perspective Illustration shows the components of the differential and its installation position.
1 = Socket head screws (2x) 7 = Thrust ring
2 = Housing cover 8 = Side gear
3 = Thrust washer (steel) 9 = Differential bevel gear
4 = Thrust washer (brass) 10 = Differential axle
5 = Outer plate (optional) 11 = Differential housing
6 = Inner plate
For the adjustment of the assembly play of the internal components (Figure 600 ...
Example), outer plates of different thickness are available (s = 2,7 ... 3,3 mm) !
The outer plates must be selected in such a way that the height of the plate packs A and B
is identical on both sides !
Differential DL-2400, Interlock value 45%
