Mode of Operation, continuation
00002629a

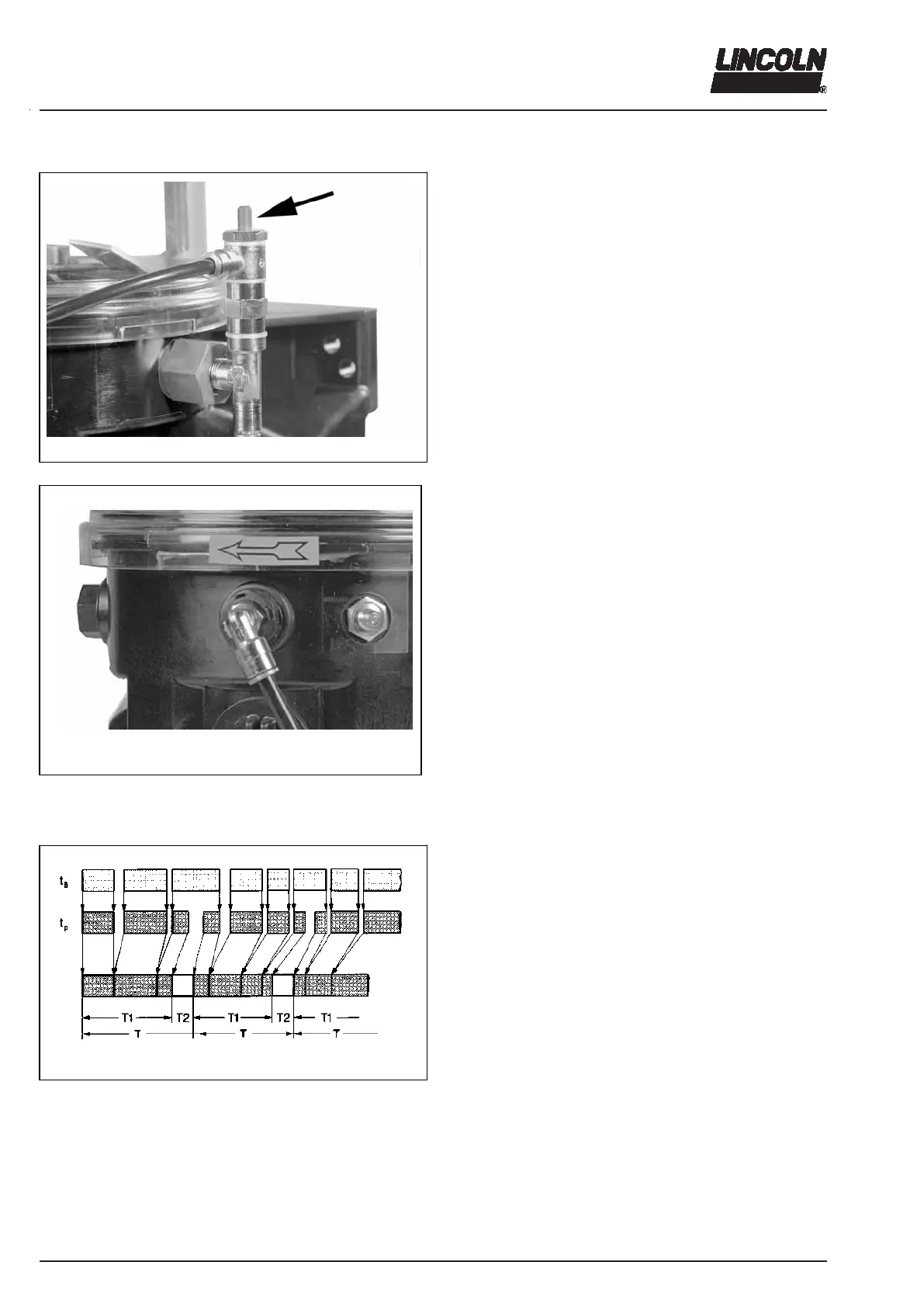

Fig. 18 Fault indication in the case of a blockage
Pressure relief valve with grease return (optional),
continuation
Fault indication
In the case of a blockage in the system, the grease
pushes out the red pin at the pressure relief valve, thus
indicating that there is a fault.
10032618
Fig. 19 Return line connection
Return Line Connection
The lubricant quantities, which cannot be dispensed by
the metering device, must be returned to the pump via the
return line connection.
Control p.c.b. with or without data memory
1059a95
Fig. 20 Time sequence diagram
t
B
- working hours T - lubrication cycle
t
P
- individual pause time T1 - stored pause time
T2 - operating times
The control p.c.b. controls the sequence of the pause and
operating times of the 223 and 233 centralized lubrication
pumps as a function of the vehicle or machine working
hours t
B
(see fig. 20).
The sequence of the pause and operating times is acti-
vated when the machine contact or driving switch is
switched on, i.e. the centralized lubrication pump is ready
for operation.
A lubrication cycle consists of one pause time and one
operating time. Once the pause time has elapsed, the op-
erating time starts to run. This lubrication cycle is re-
peated permanently after the machine or vehicle has been
put into operation.
During the operating time the pump element dispenses
the lubricant to the lubrication points via progressive me-
tering devices.
