Moxy MT 31 - Disassemble Multi-Disc Clutches

SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 172 Ch 2 page 173
TRANSMISSION
TRANSMISSION
Ch 2 page 172 Ch 2 page 173
TRANSMISSION
Figure 175
Figure 178
Figure 177
Figure 176

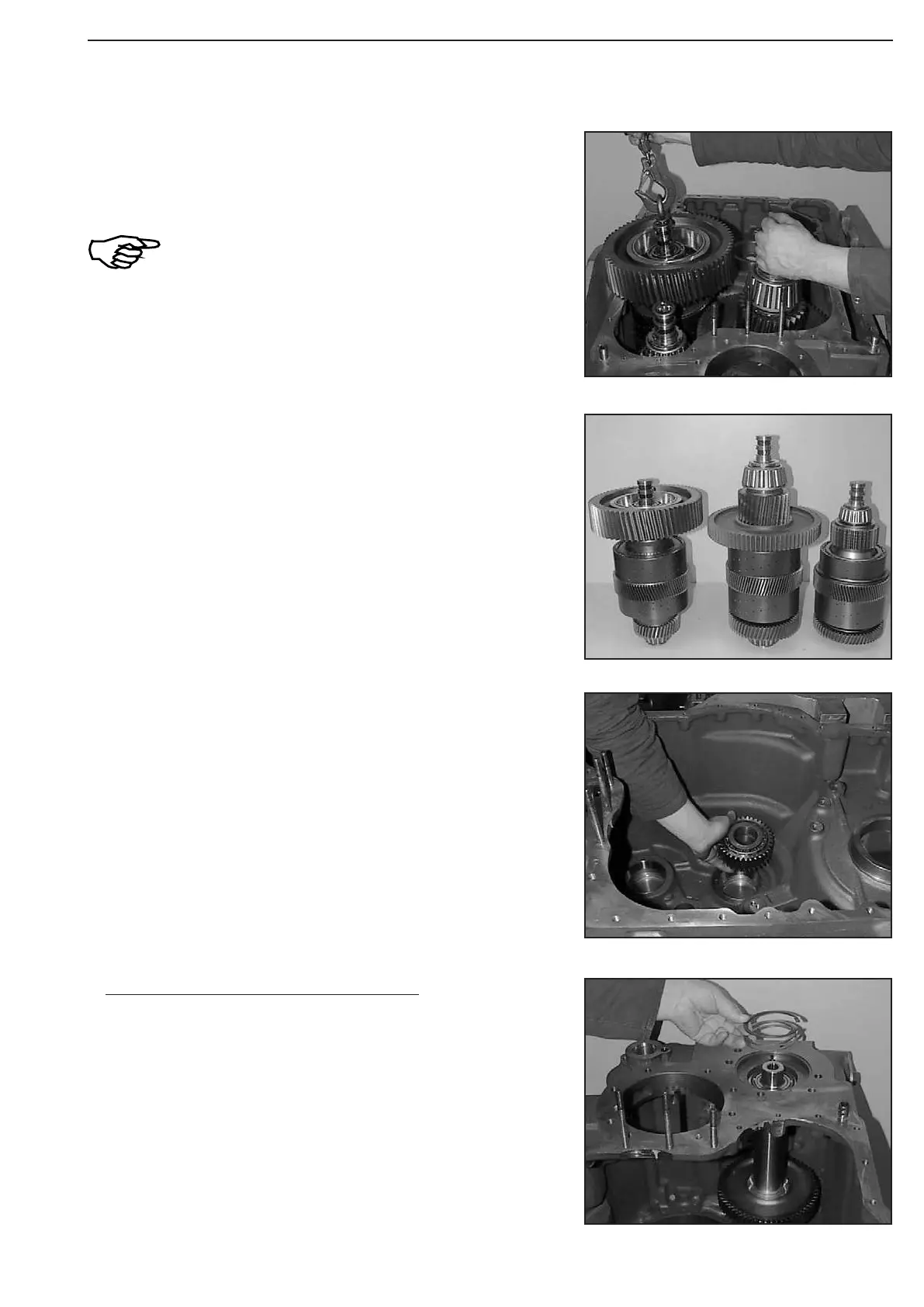

Disassemble clutch K4/K3, KR/K2 and KV/K1 by means of lifting
device.
At the disassembly of the clutch K4/K3,
slightly lift clutch KR/K2 and displace it in
arrow direction, see figure on the left!
(S) Set of eye bolts 504182
Disassemble and dismantle power take-off
Squeeze out circlip and remove shims.
Remove countershaft gear.
The figure on the left shows the clutches in disassembled
condition.
Disassemble Multi-disc clutches
KR
K4
K3
KV
K1
K2
