SHOP MANUAL MT26-31 - 06.2005
Engine
Tier-3 710655-
Ch 1 page 120

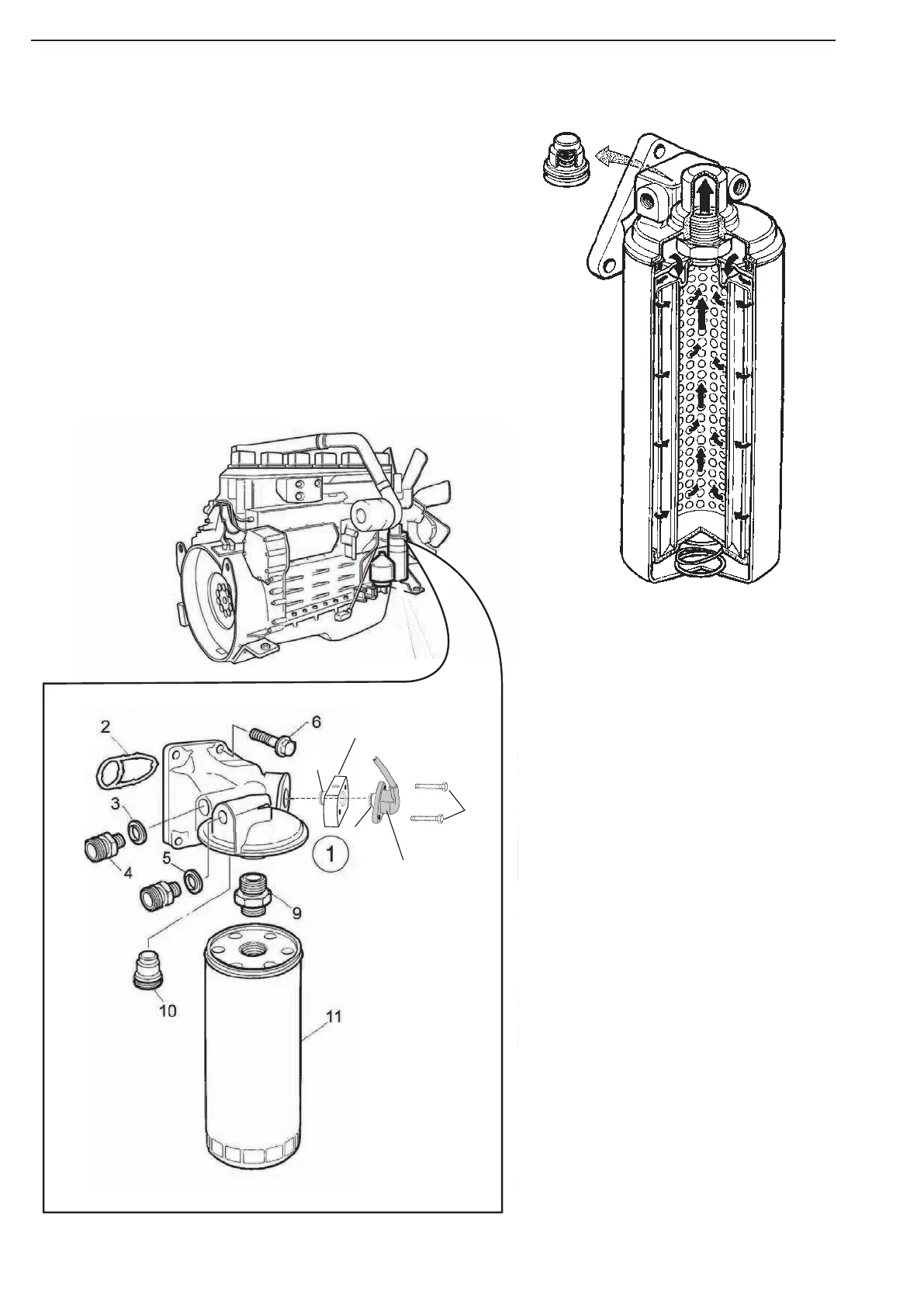

Oil filter
1. Filter head
2. Gasket
3. Seal
4. Straight union
5. Gasket
6. Flange bolt
7. O-ring
8. Pressure censor
9. Union
10. Overflow valve
11. Oil filter
12. Adapter
13. Screw
From the oil cooler, the oil passes through a large-capacity full-
flow filter of paper.
This filter also cleans the oil to the turbocharger.
The oil filter has an overflow valve which opens if the filter be-
comes clogged. Unfiltered oil than continues to the engine and
only some of the oil is cleaned in the centrifugal cleaner.
It is therefore especially important to change the filter at the
intervals recommended in the Operating & Maintenance
Manual.
