Moxy MT 31 - Axle Insert LK; Oil Specification; Oil Change

TRANSMISSION
Ch 2 page 20 Ch 2 page 21
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 20 Ch 2 page 21
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
Oil specification:
Oils according to List of Lubricants TE-ML 05 are allowed to be used.
Oil level check:
- With the vehicle standing in a horizontal plane open the screw plug (2) on the transmission,
the oil level must reach the upper edge of the check hole (2) .
If required, fill up oil acc. to the List of Lubricants TE-ML 05.
- Clean sealing surface on the housing and on the screw plug.
- Place the screw plug with a new O-ring again into the oil level check hole (2)
and tighten it.
Axle insert „LK“:
Oil change:
Pay attention to utmost cleanness, so that no dirt can penetrate inside the axle
insert!
- With the vehicle placed in a horizontal plane open the screw plugs (1 and 2) and drain the
used oil.
- Clean screw plug (1) and sealing surface on the housing, install the screw plug with a new
O-ring and tighten it.
- Fill up the oil according to the ZF List of Lubricants TE-ML 05 on (2) until it starts over-flowing
on the oil level check hole.
- Install the screw plug (2) with a new O-ring and tighten it.

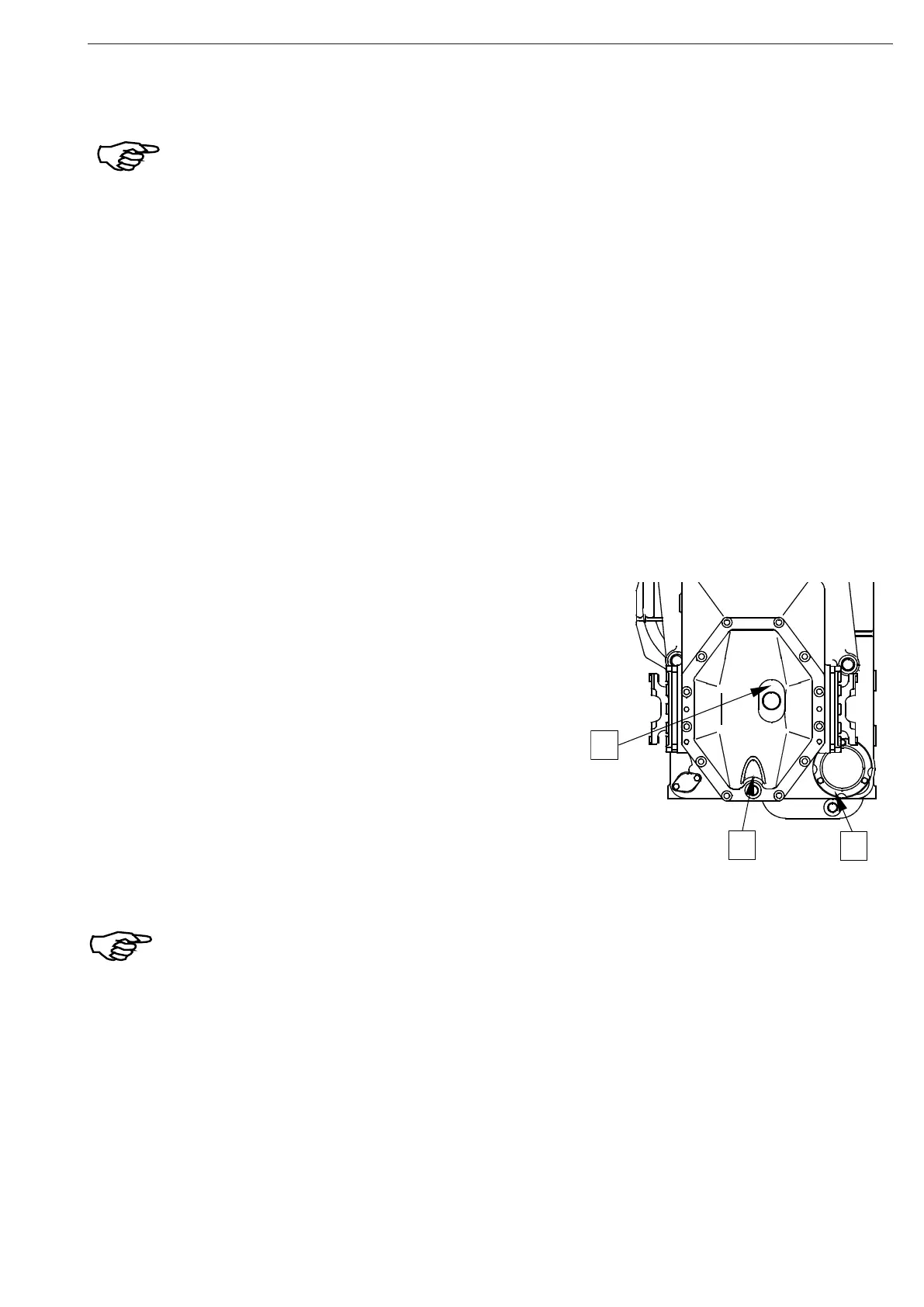

Legend:
1 = Oil drain plug M24x1,5
2 = Oil filler- and oil level plug M42x1,5
3 = Oil drain plug M38x1,5
2
1
3
