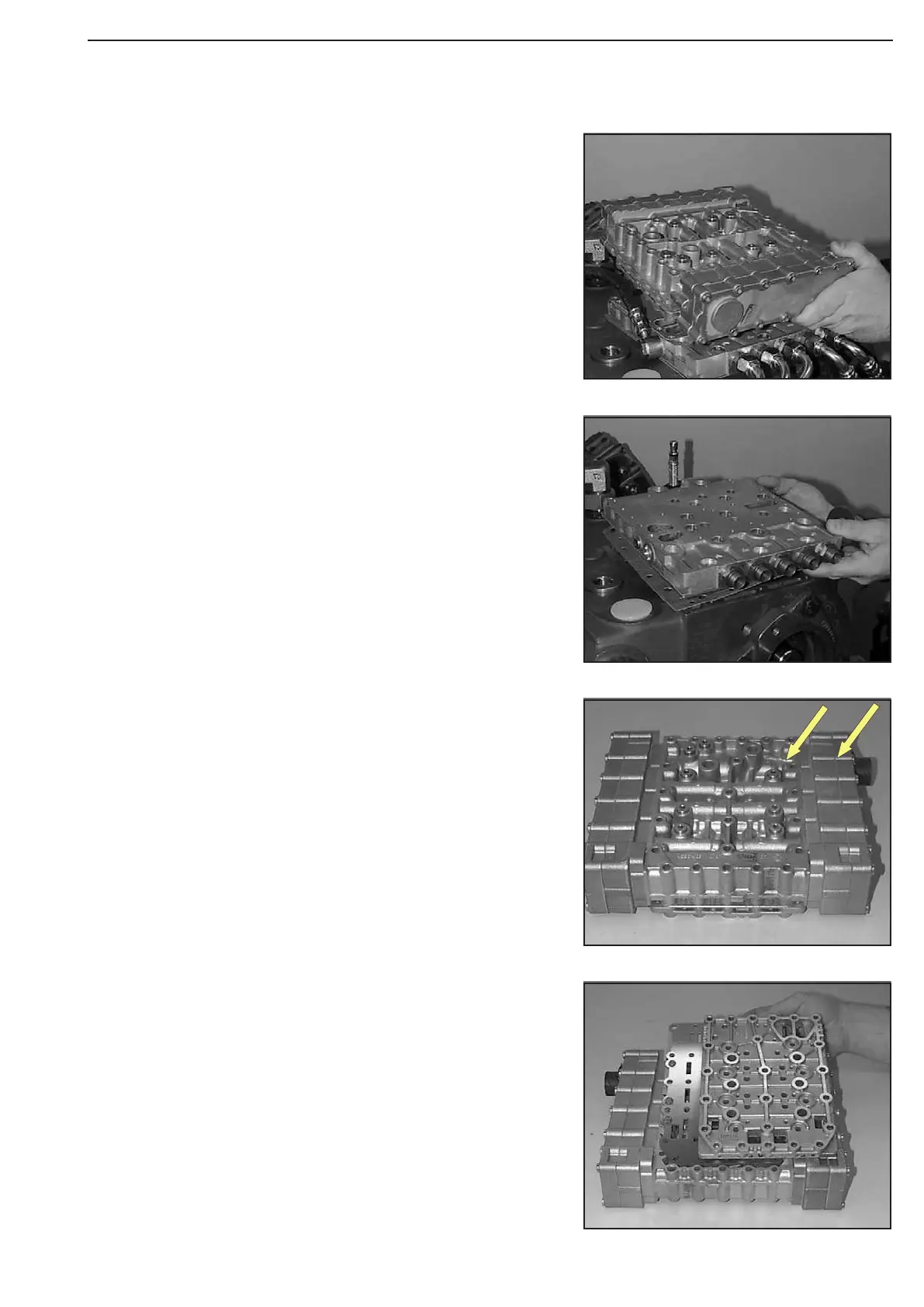

Loosen socket head screws and remove selector housing.
(S) Box spanner TX-27 504253
Loosen socket head screws.
Separate duct plate, gaskets and intermediate sheet from the
valve block.
Mark installation position of the cable harness to the valve
block.
Separate hose lines from the intermediate plate.
Loosen socket head screws and separate intermediate plate as
well as gaskets and intermediate sheet from gearbox housing.
(S) Box spanner TX-40 504254
DISASSEMBLY
Figure1
Figure 4
Figure 3
Figure 2
Summary for the Tool, see chapter 2.0
