TRANSMISSION
Ch 2 page 204 Ch 2 page 205
TRANSMISSION
TRANSMISSION
Ch 2 page 204 Ch 2 page 205
TRANSMISSION
Multi-disc clutch-KR

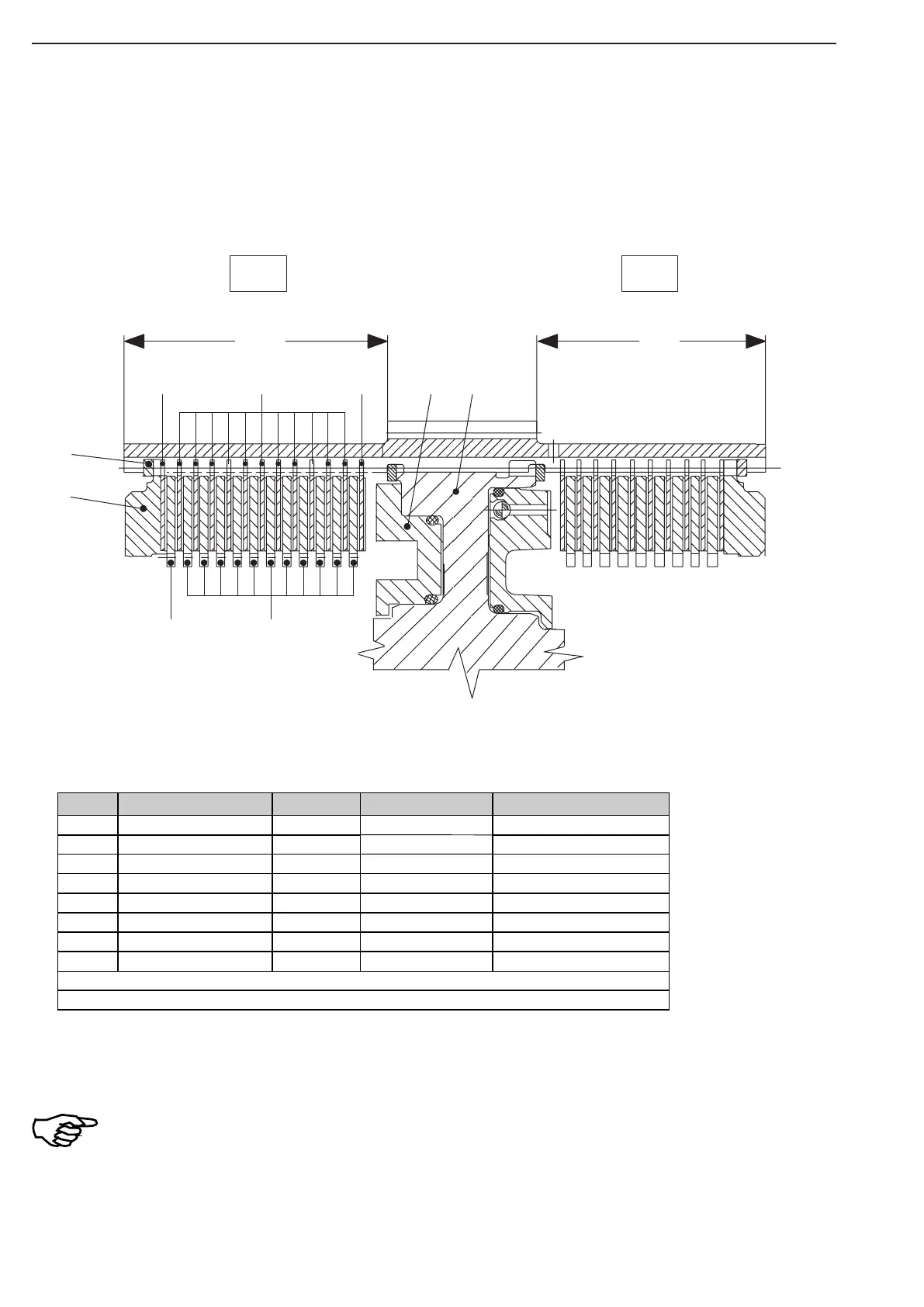

The following sketch or table show plate stacking and installation position of the components!
Figure 283
Install outer plates Item 3 with the uncoated side showing towards the piston or end
shim.
The respective clutch side can be recognised by the length of the plate carrier, see sketch.
KR = Measure Y (long plate carrier side)
K2 = Measure X (short plate carrier side)
Item. Designation Quantity s (mm) Remark
1 Plate carrier 1
2 Piston 1
3 Outer plate 2 1,85 One-side coated
4 Outer plate 11 2,5 Coated on both sides
5 Inner plate 11 2,5
6 Inner plate 1 2,5 ... 4,0 Optionally
7 Snap ring 1 2,55 ... 3,1 Optional
8 End shim 1
Number of friction surfaces: 24
Plate clearance: 2,8... 3,0 mm
Multi-disc clutch-KR
