Moxy MT 31 - Dismantle Multi-Disc Clutch KR;K2

SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 180 Ch 2 page 181
TRANSMISSION
TRANSMISSION
Ch 2 page 180 Ch 2 page 181
TRANSMISSION
504250 504243
504227
504218
504207
504215
504245 504243
504195
504237 504244
504175
504211
504215 504175
504206
504251
504243
Special tool - Coupling
KR + K2
Figure 198
Fasten clutch by means of clamping ring (arrow) on the assembly
car.
(S) Clamping ring 504226
or
(S) Clamping ring 504227

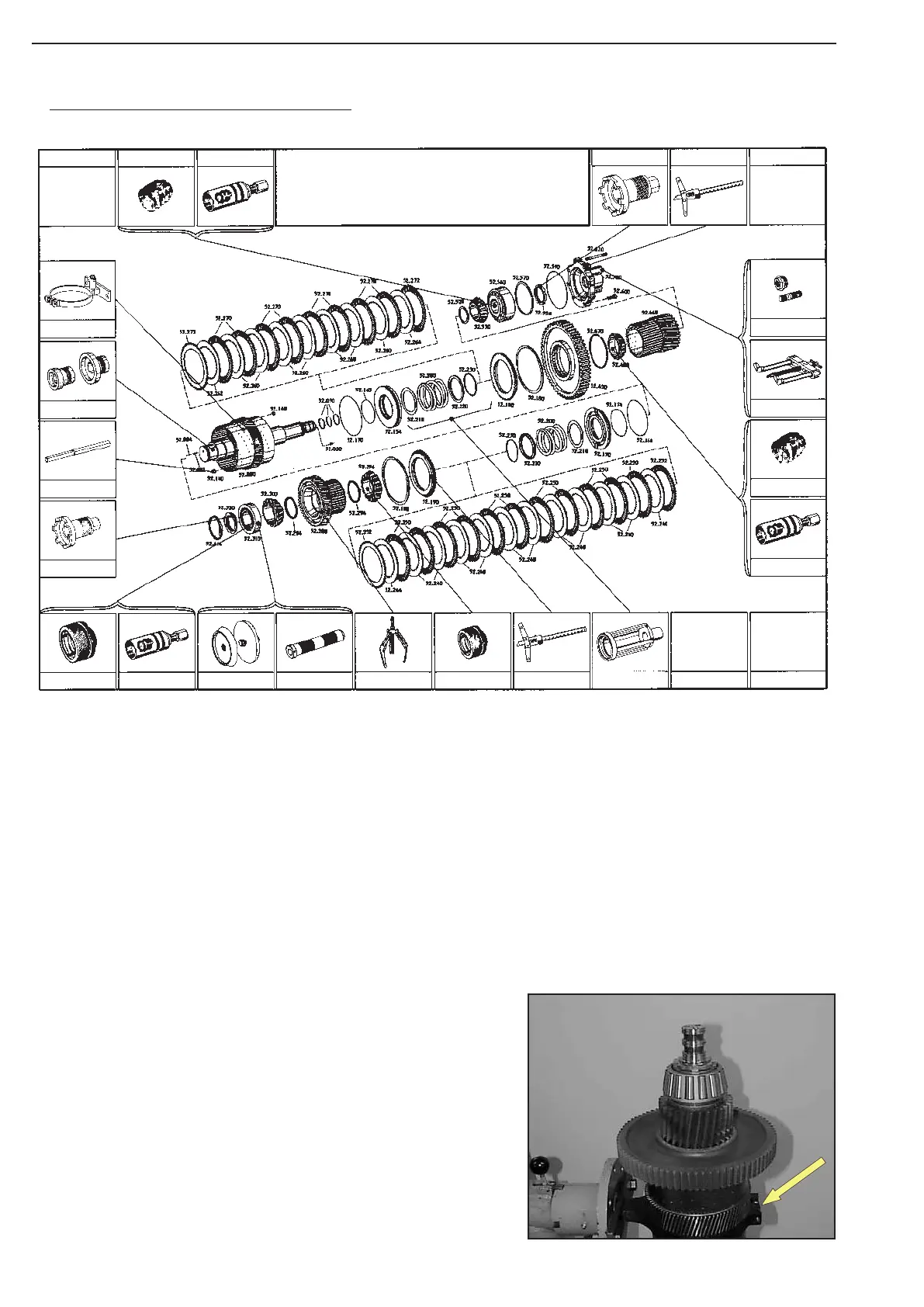

Dismantle multi-disc clutch KR/K2
