TRANSMISSION
Ch 2 page 180 Ch 2 page 181
TRANSMISSION
TRANSMISSION
Ch 2 page 180 Ch 2 page 181
TRANSMISSION

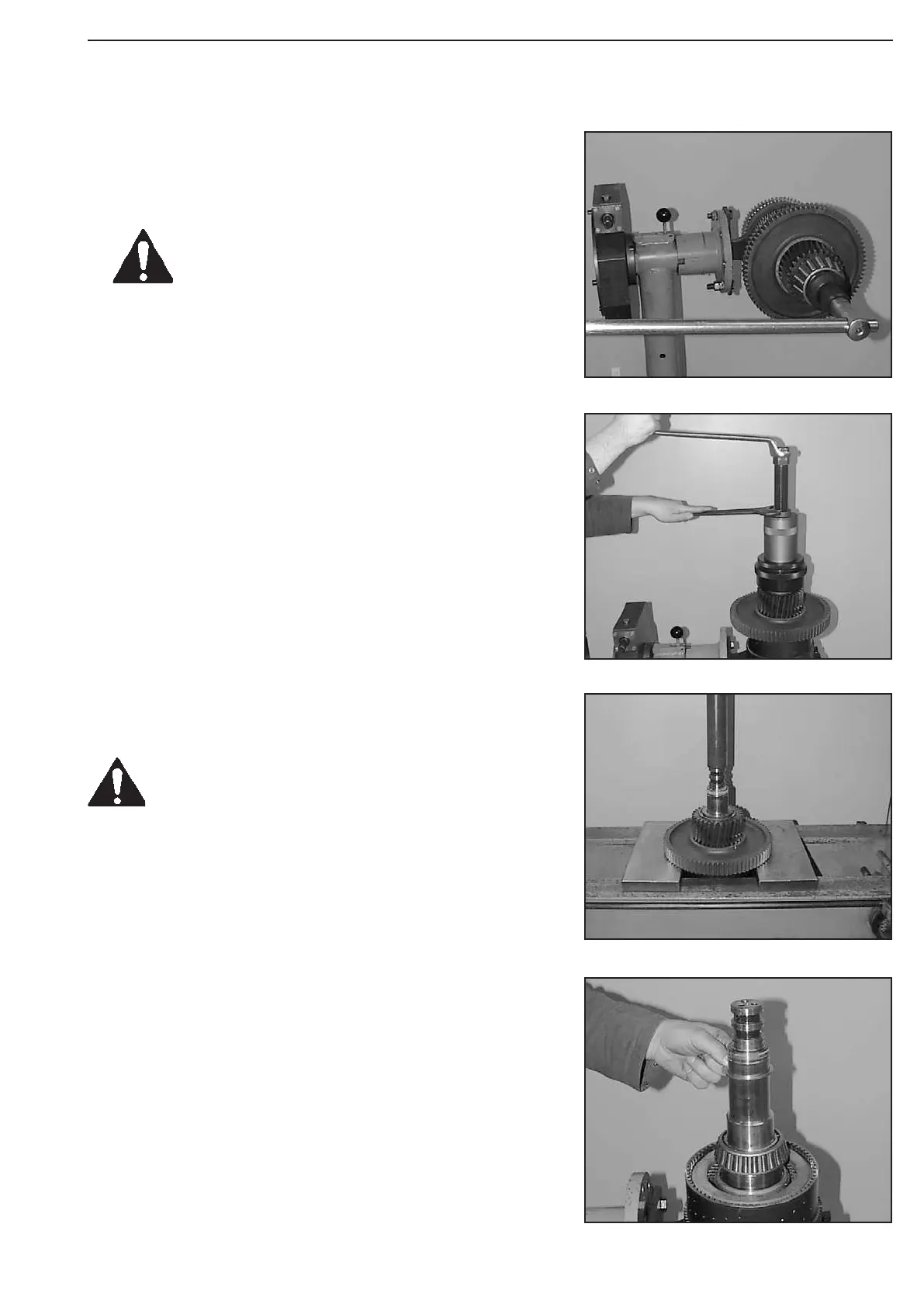

Figure 200
Figure 199
Pull tapered roller bearing off plate carrier.
(S) Grab sleeve 504250
(S) Basic tool 504243
Tilt plate carrier by 90°.
Loosen slotted nut.
Slotted nut is secured with Loctite!
To prevent damage to the thread, heat slotted
nut prior to loosen it (abt. 120° C)!
(S) Hook spanner 504215
Figure 201
Figure 202
Press spur gear K2 from the plate carrier.
Pay attention to released plate carrier!
Fix plate carrier by means of clamping ring (S).
Remove shim.
(S) Clamping ring 504226
or 504227
