SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 168 Ch 2 page 169
TRANSMISSION
TRANSMISSION
Ch 2 page 168 Ch 2 page 169
TRANSMISSION

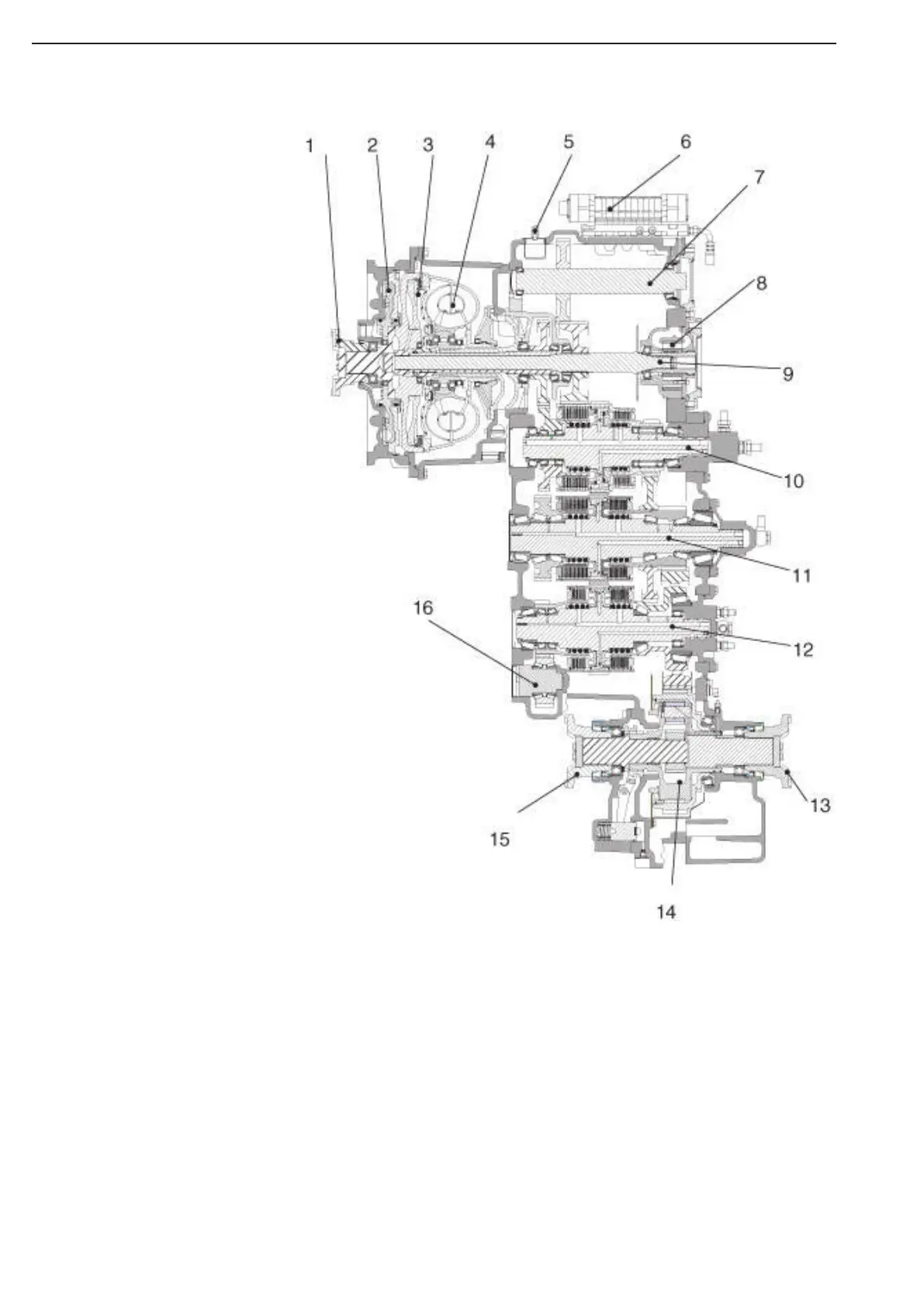

1 = Input flange - Drive via universal shaft
2 = Retarder
3 = WK
2 = Converter
5 = Breather
6 = Electrohydraulic control unit
7 = 2
nd
Power take-off
8 = Transmision pump
9 = 1
st
Pover take off
10 = Clutck axle “KV/K1”
11 = Clutc axle “KR/K2”
12 = Clutch axle “K4/K3”
13 = Output flange rear side
14 = Interaxle differential
15 = Output flange (converter-side)
16 = Countershaft
Clutches, Powershift transmission
