Moxy MT 31 - Pistons and Cylinder Liners

Engine
SHOP MANUAL MT26-31 - 06.2005
Tier-3 710655-
Ch 1 page 73

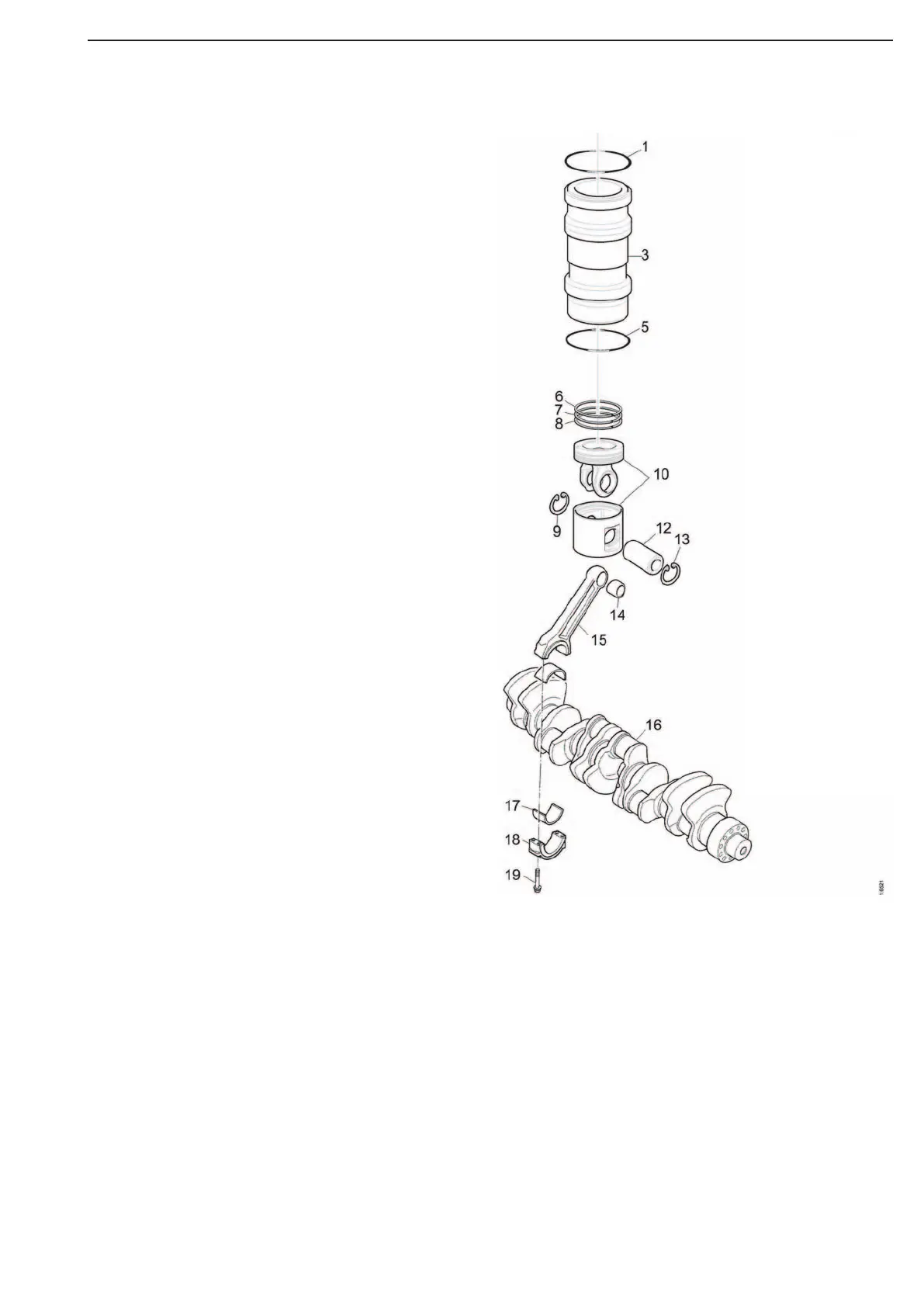

Pistons and cylinder liners
1. O-ring
3. Cylinder liner for steel piston
5. O-ring
6. Compression ring
7. Compression ring
8. Oil scraper ring
9. Circlip
10. Steel piston
12. Gudgeon pin
13. Circlip
14. Bearing bushing
15. Connecting rod
16. Crankshaft
17. Bearing shell
18. Bearing cap
19. Flange bolt
