Moxy MT 31 - Electro Hydr. Shift Control Valve, Cross Section

SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 98 Ch 2 page 99
TRANSMISSION
TRANSMISSION
Ch 2 page 98 Ch 2 page 99
TRANSMISSION

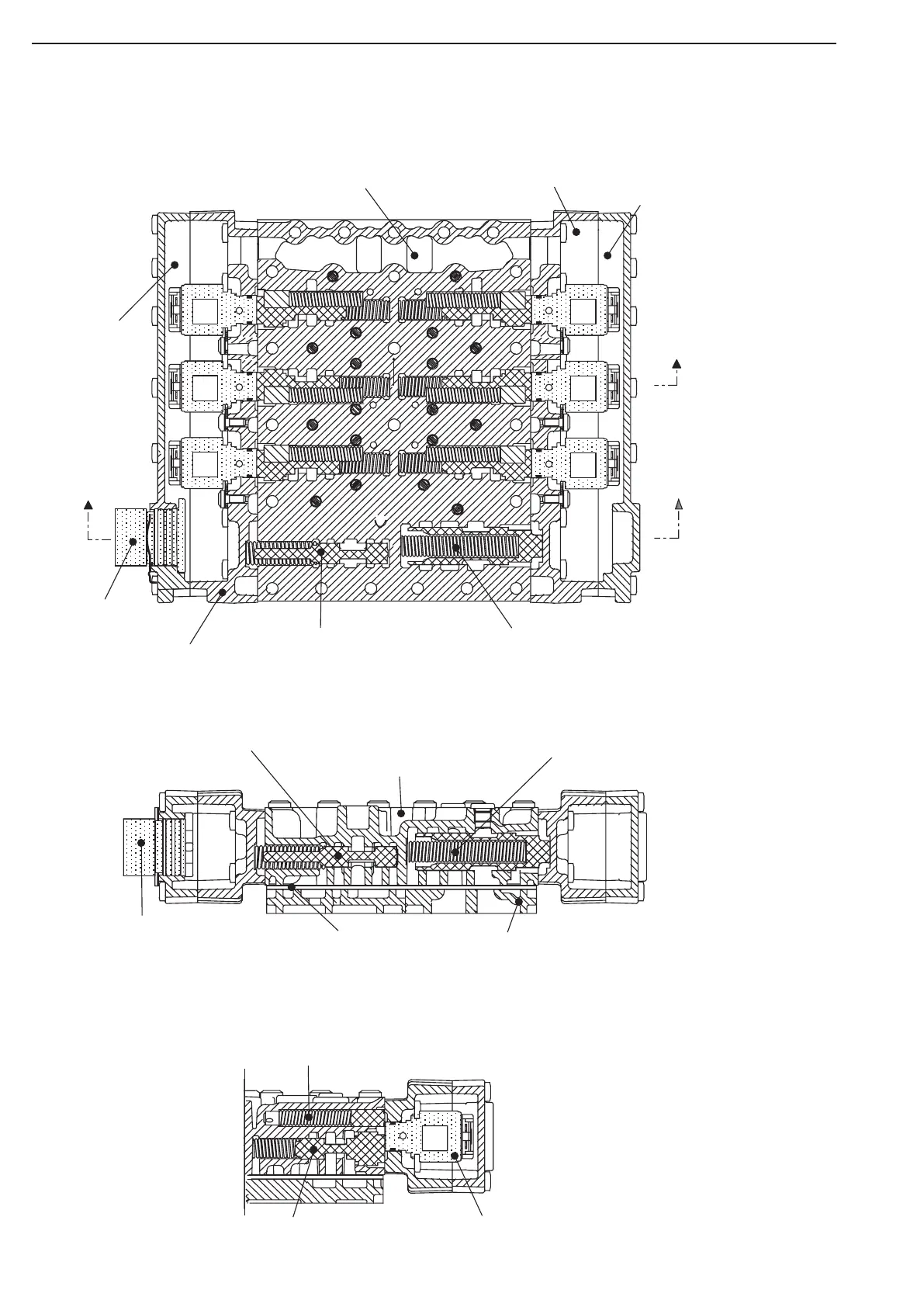

Electro hydr. shift control valve, cross section
Dutch
plate
Main pr essur e
valve 1 6+2ba r
Valve b lock
Pressur e red ucing
valve 9 bar
Plug
(cable harne ss)
Interme diate
plate
Section
A -
A
Section B -
B
Proportional
valve P5
Y5
Vibrati on da mper
Follow- on
slide
Pressur e
regulat or
A
B
Main pressure
valve 16 + 2 bar
Pressure reducing
valve 9 bar
Housing
Plug
(Cable harness)
Cover
Valve block
Housing
Cover
A
Y6
Y5
Y4
Y1
Y2
Y3
The following drafts are showing the sectional Illustrations of the HSG-94
