TRANSMISSION
Ch 2 page 92 Ch 2 page 93
TRANSMISSION
TRANSMISSION
Ch 2 page 92 Ch 2 page 93
TRANSMISSION
Pole 1
Pole 23
Pole 24
Pole 46
Pole 68
1
45
68
23
2
24
46
Pole 45
The basic functions of the automatic system
are the automatic shifting of gears, adaption
of the optimum shifting points, the
comprehensive safety functions in relation
to operating errors and overloads of the
power-transmitting components with a
comprehensive fault storage.
Due to the great number of the available
TCU, the exact Technical Data must be
taken from the respective installation
drawing.
Description of the Basic functions:
The Powershift transmission of the Ergopower-
Series 6 WG-310 is equipped with the Electronic
transmission control EST-37A, developped for it.
The system is processing the desire of the driver accord
-
ing to the following criteria:
• Gear determination dependent on controller
position driving speed and load condition.
• Protection from operating error as far as
necessary, is possible via electronic protection
(programming).
• Protection from over-speeds (on the base of
engine and turbine speed).
• Automatic reversing (driving speed-dependent,
depending on vehicle type).
• Pressure cut-off possible (vehicle-specific, only
after contact with ZF).
• Change-over possibility for Auto- / Manual
mode.

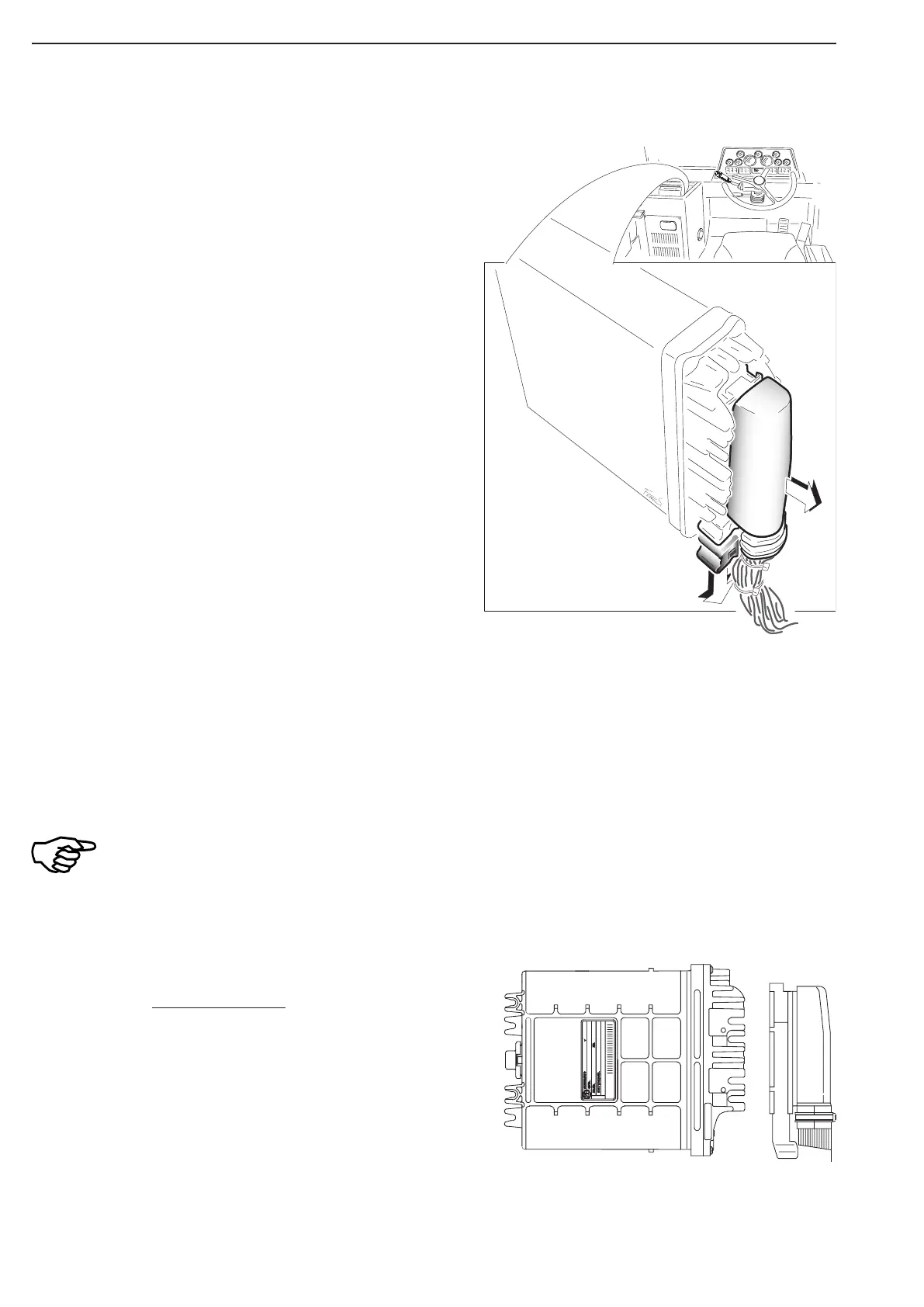

Electronic Control unit EST-37A
If the Transmission 6WG310 is to be returned to Moxy Trucks AS or ZF for repair or any
others reasons, the Transmission controller EST-37A is to be returned together with the
Transmission.
1.
Fasten the controller to the Transmission.
2.
Indicate in the delivery note the serial number of the
Transmission and the controller.
This information will help us if the controller should be
separated from the Transmission under transport.
3.
If the Transmission shoud have a waranty repair at
other workshop, it is necessery that the testreport
printing are following with the claim.
Important parts information
EST-37A; with filterbypass; Smart Software;
CAN; engine brake; AutoRetarder; KD only
via ED7
(TCU must be ordered separate)
