Moxy MT 31 - Oil Cooler View

SHOP MANUAL MT26-31 - 06.2005
Engine
Tier-3 710655-
Ch 1 page 118

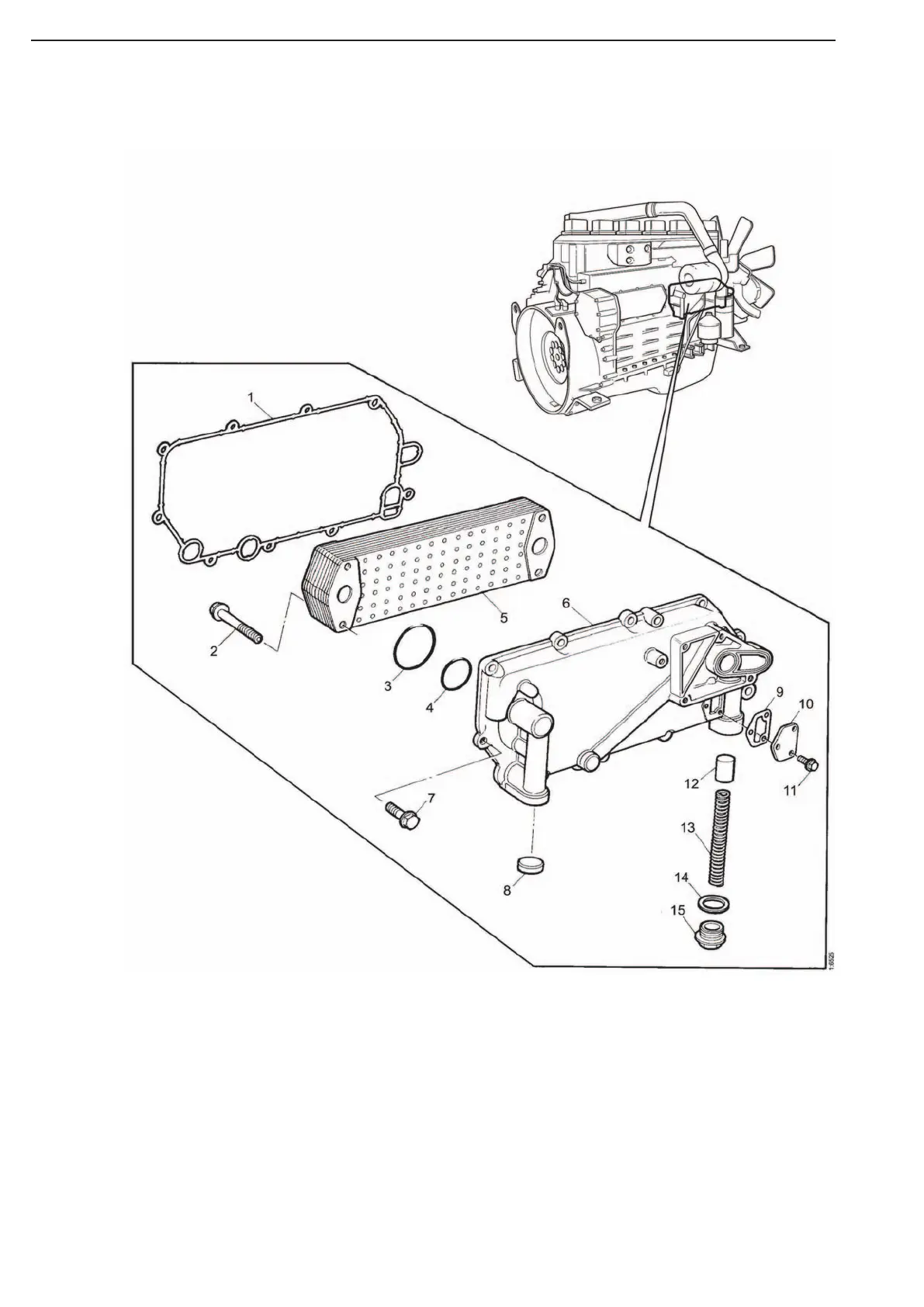

Oil cooler view
1. Gasket
2. Flange bolt
3. O-ring
4. O-ring
5. Oil cooler
6. Oil cooler cover
7. Flange bolt
8. Core plug
9. Gasket
10. Cover
11. Bolt
12. Piston
13. Spring
14. Gasket
15. Plug
