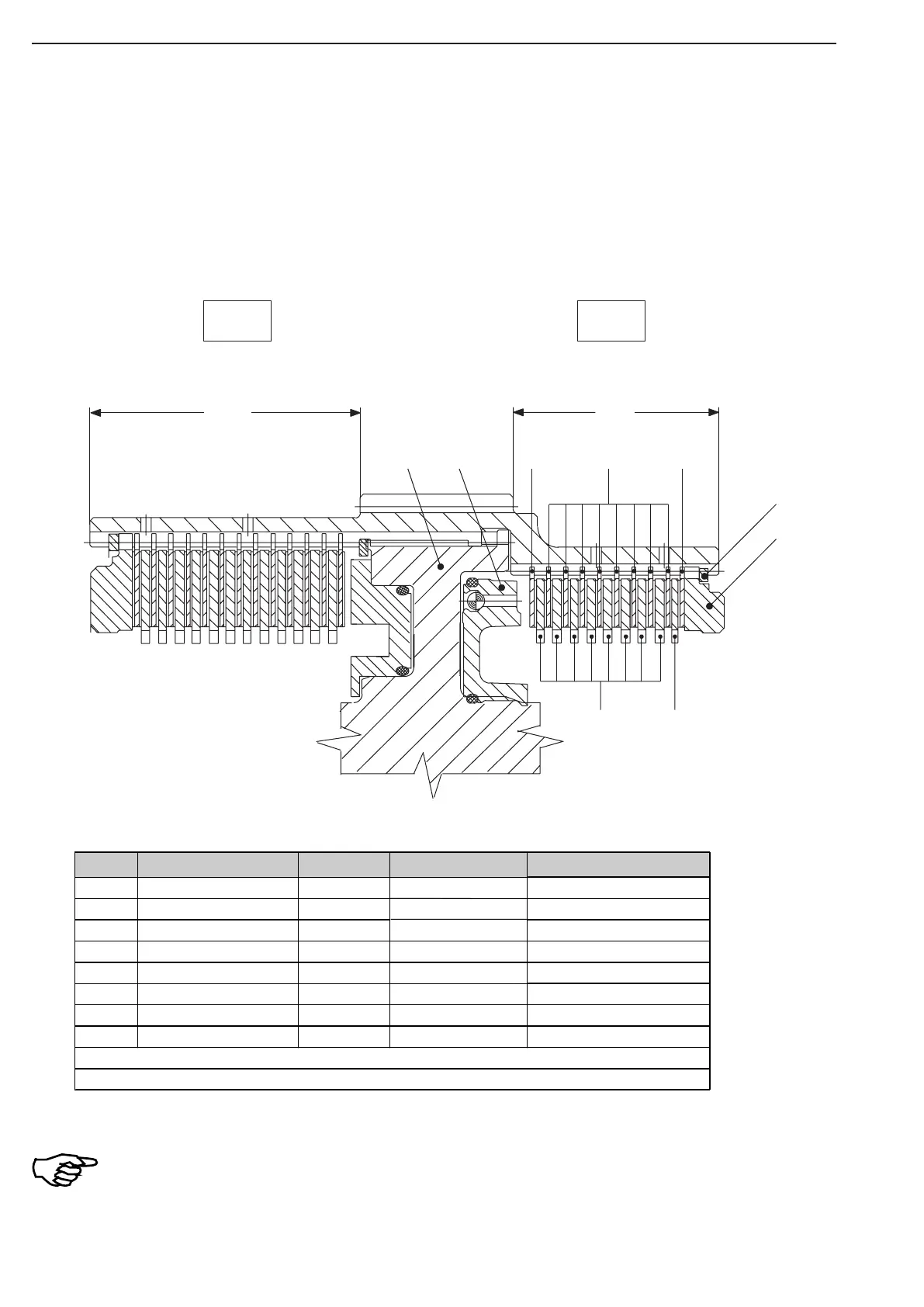

The following sketch or table show plate stacking and installation position of the components!
Install outer plate Item 3 with the uncoated side facing the piston or the end shim!
The respective clutch side can be recognized by the length or the Æ of the plate carrier,
see sketch!
K1 = Measure X (short plate carrier side or small Ø)
KV = Measure Y (long plate carrier side or great Ø)
Figure 348
K1
KV
K1
X
Y
1
2
3
3
4
5
6
7
8
Item
Designation
Number
s (mm)
Remark
1 Plate carrier 1
2 Piston 1
3 Outer plate 2 1,85 One-side coated
4 Outer plate 8 2,5 Coated on both sides
5 Inner plate 8 2,5
6 Inner plate 1 2,5 ... 3,5 Optional
7 Snap ring 1 2,1 ... 2,5 Optional
1
Number of friction surfaces: 18
Plate clearance: 2,6... 2,8 mm
8
End shim
Multi-disc clutch-K1
