Moxy MT 31 - Transmission Cross Section

TRANSMISSION
Ch 2 page 10 Ch 2 page 11
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 10 Ch 2 page 11
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006

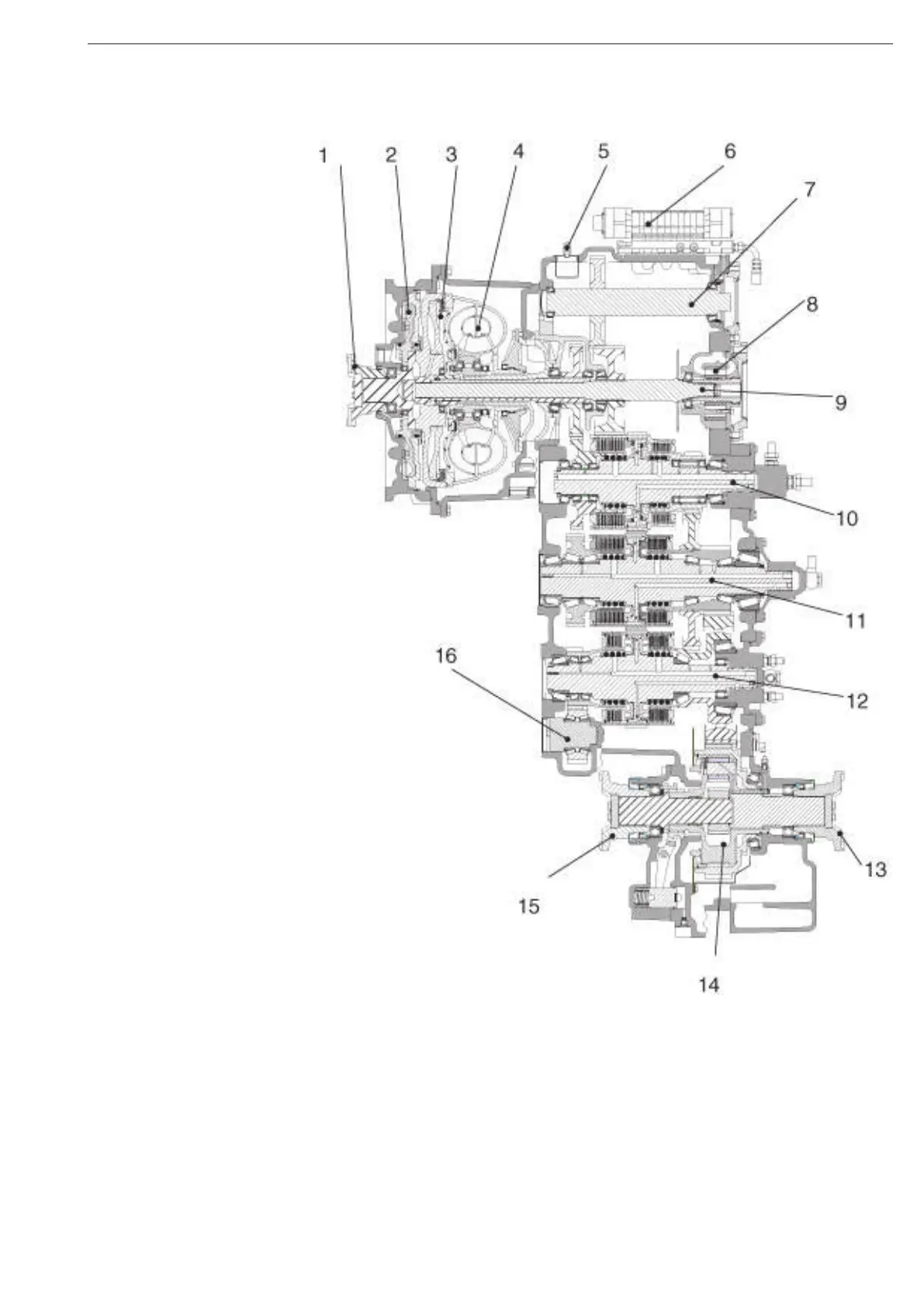

Transmission cross section
1 = Input flange - Drive via universal shaft
2 = Retarder
3 = WK
4 = Converter
5 = Breather
6 = Electrohydraulic controll unit
7 = 2nd Power take- off
8 = Transmission pump
9 = 1st Power take- off
10 = Clutch axle “KV/K1”
11 = Clutch axle “KR/K2”
12 = Clutch axle “K4/K3”
13 = Output flange (rear side)
14 = Crawler speed
15 = Output flange (converter side)
16 = Countershaft
