SHOP MANUAL MT26-31 - 06.2005
Engine
Tier-3 710655-
Ch 1 page 14

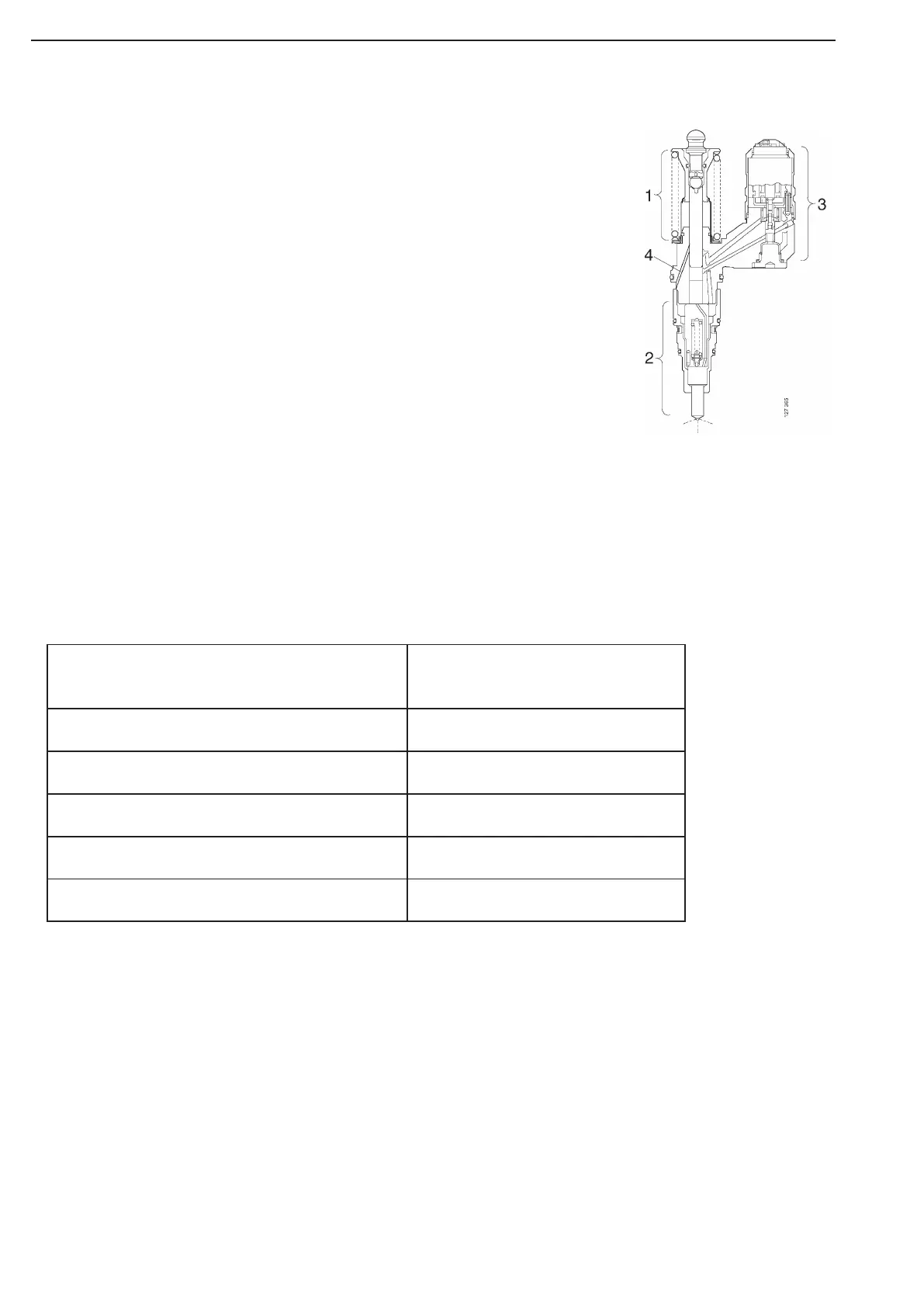

Apart from fuel lines and a fuel tank, a PDE
(Pumpe-Düse-Einheit) fuel system with unit
injectors consists of the following items:
• a feed pump
• a hand pump
• a fuel filter
• one fuel rail.
• a pressure relief valve
• One PDE type unit injector per cylinder.
The fuel system also includes an electronic
control system. The control system includes an
electronic control unit, the unit injector
solenoid valves and sensors.
General
PDE
Diesel fuel oil
The composition of the diesel fuel oil has a great influence on the functioning and
the service life of the engine and the injection system.
The engine output and exhaust emissions are also dependent on the fuel quality.
The diesel fuel must meet European standard EN 590.
The table below shows the requirements for some of the most important properties:
Environmentally favourable fuels (low sulphur fuels)
There are three classes of so called environmentally favourable fuels (SS15 54 35).
Class 1 is sulphur-free and class 2 is low in sulphur. Compared with class 3 (normal fuel), these fuels are less
dense and this reduces engine power output.
FUEL
Property Requirement
Viscosity at 40°C 2.0 - 4.5 mm2/s (cSt)
Density at 15°C 0.82 - 0.86 kg/dm3
Sulphur (concentration by mass) max. 0.3%
Ignitability (CET rating) min. 49
Flashpoint 56°C
