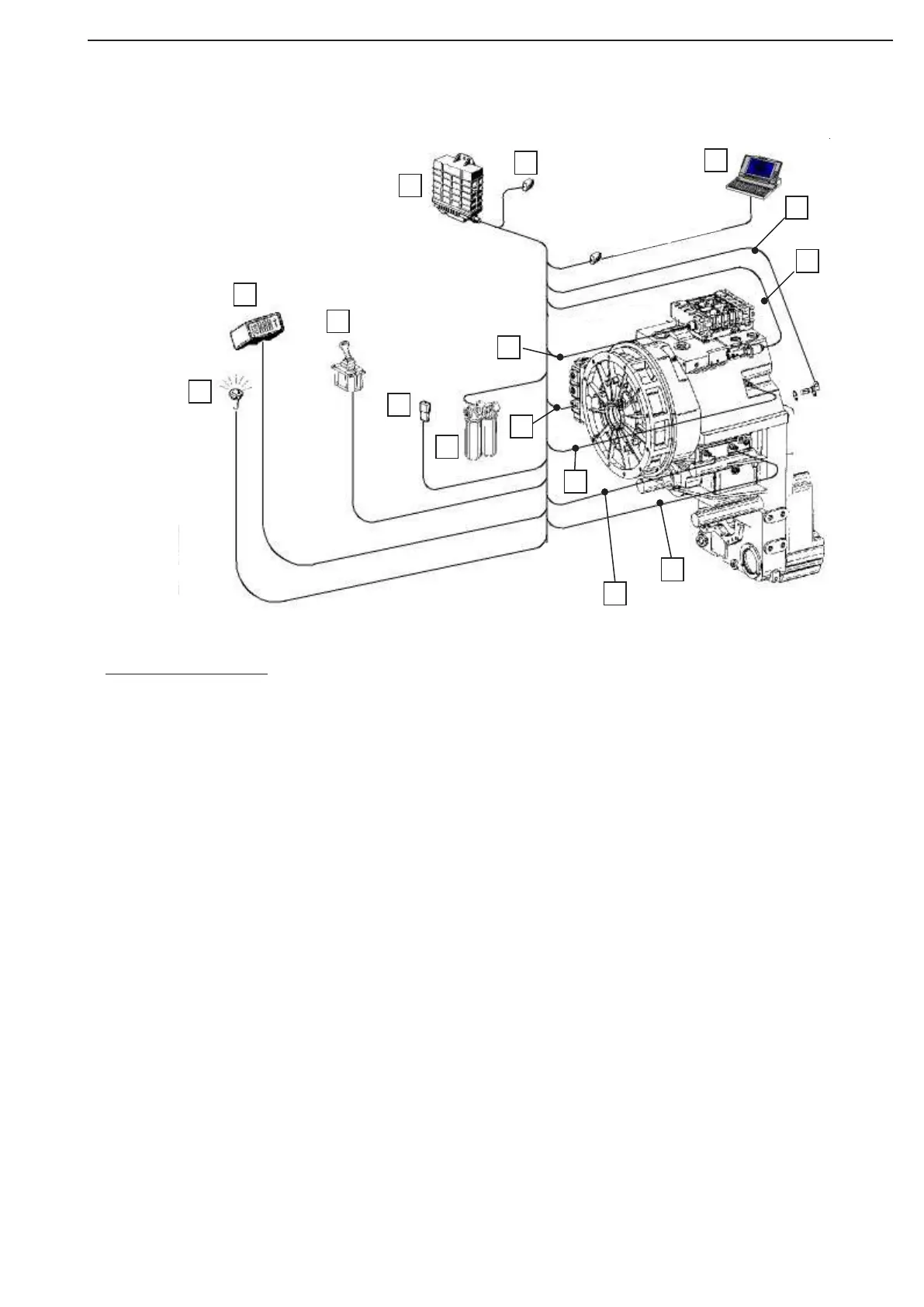

Family package of the EST-37A
Legend ref. Figure
3 = Warning lamp
4 = Display
5 = Controller VST-3
6 = Supply system connection
7 = Fine filter with maintenance switch / Cable to filter contamination switch
9 = Electro control unit EST37
10 = CAN-connection
12 = Diagnosis Laptop with ZF-Diagnostic system Testmann and AEB
13 = Cable to speed sensor output and speedometer
14 = Cable to lock-up
16 = Cable to Electro hydraulic control with proportional valves
17 = Cable to temperature measuring point behind the converter
18 = Cable to inductive transmitter – speed engine
19 = Cable to inductive transmitter – speed turbine
20 = Cable to inductive transmitter – speed central gear train
