TRANSMISSION
Ch 2 page 170 Ch 2 page 171
TRANSMISSION
TRANSMISSION
Ch 2 page 170 Ch 2 page 171
TRANSMISSION

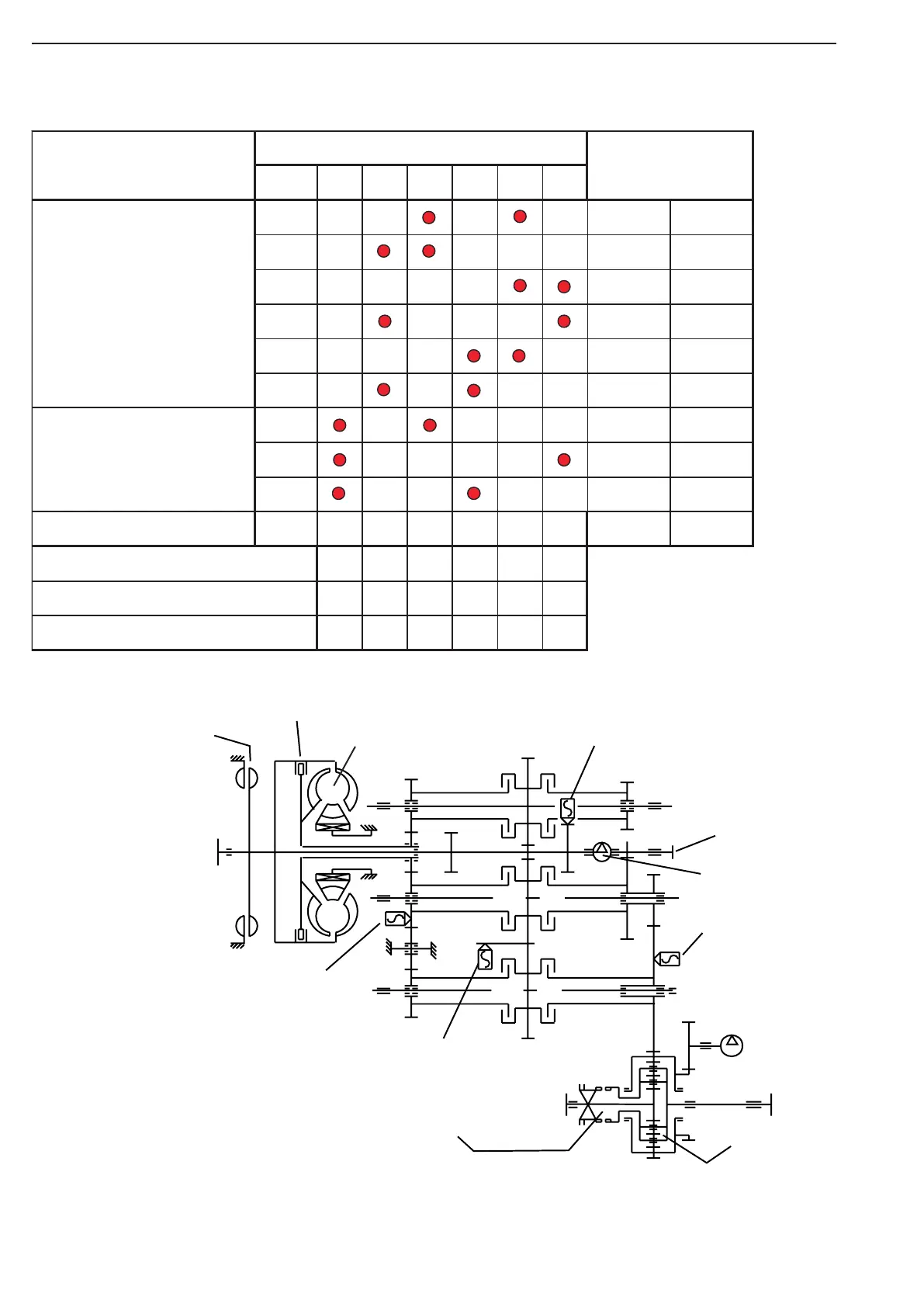

Clutch chart
606 = Inductive transmitter
n – Engine
608 = Inductive transmitter
n – Central gear train
610 = Speed sensor
n – Output
612 = Inductive transmitter
n – Turbine
Retarder
WK
Converter
606
Main pump
Pump
610
Output
Differential
Engagement and
Disangagement
Differential lock
612
608
Input
KV
K1
KR
K2
K4
K3
PRESSURE REGULATOR UNDER VOLTAGE ENGAGED CLUTCHES
DRIVING DIRECTION
Speed
Y1 Y2 Y3 Y4 Y5 Y6
1 K 1 KV
2 K 4 K1
FORWARD 3 KV K2
4 K 4 K2
5 K 3 KV
6 K
4 K3
1 K
R
K1
REVERSE 2
KR
K2
3 K
R
K3
NEUTRAL
ENGAGED CLUTCH
KR K4 K1 K3 KV K2
POSTITIONS ON VALVE BLOCK
F E D C B A
CONSEC. NO. OF MEAS. POINTS 55 60 56 58 53 57
