TRANSMISSION
Ch 2 page 52

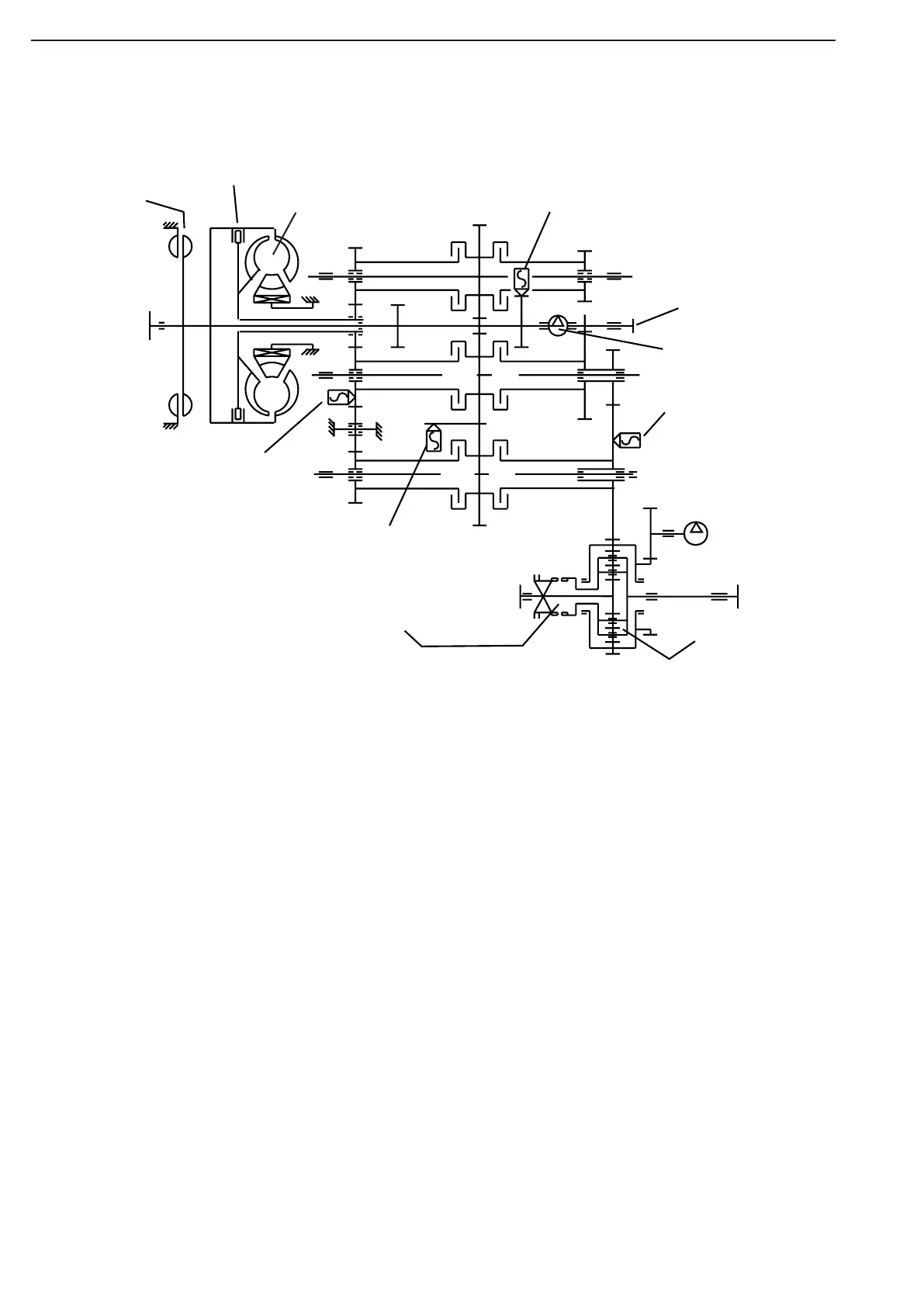

Transmission diagram
606 = Inductive transmitter
n – Engine and
608 = Inductive transmitter
n – Central gear train
610 = Speed sensor
n – Output
612 = Inductive transmitter
n – Turbine
Retarder
WK
Converter
606
Main pump
Pump
610
Output
Differential
Engagement and
Disangagement
Differential lock
612
608
Input
KV
K1
KR
K2
K4
K3
