TRANSMISSION
Ch 2 page 182 Ch 2 page 183
TRANSMISSION
TRANSMISSION
Ch 2 page 182 Ch 2 page 183
TRANSMISSION

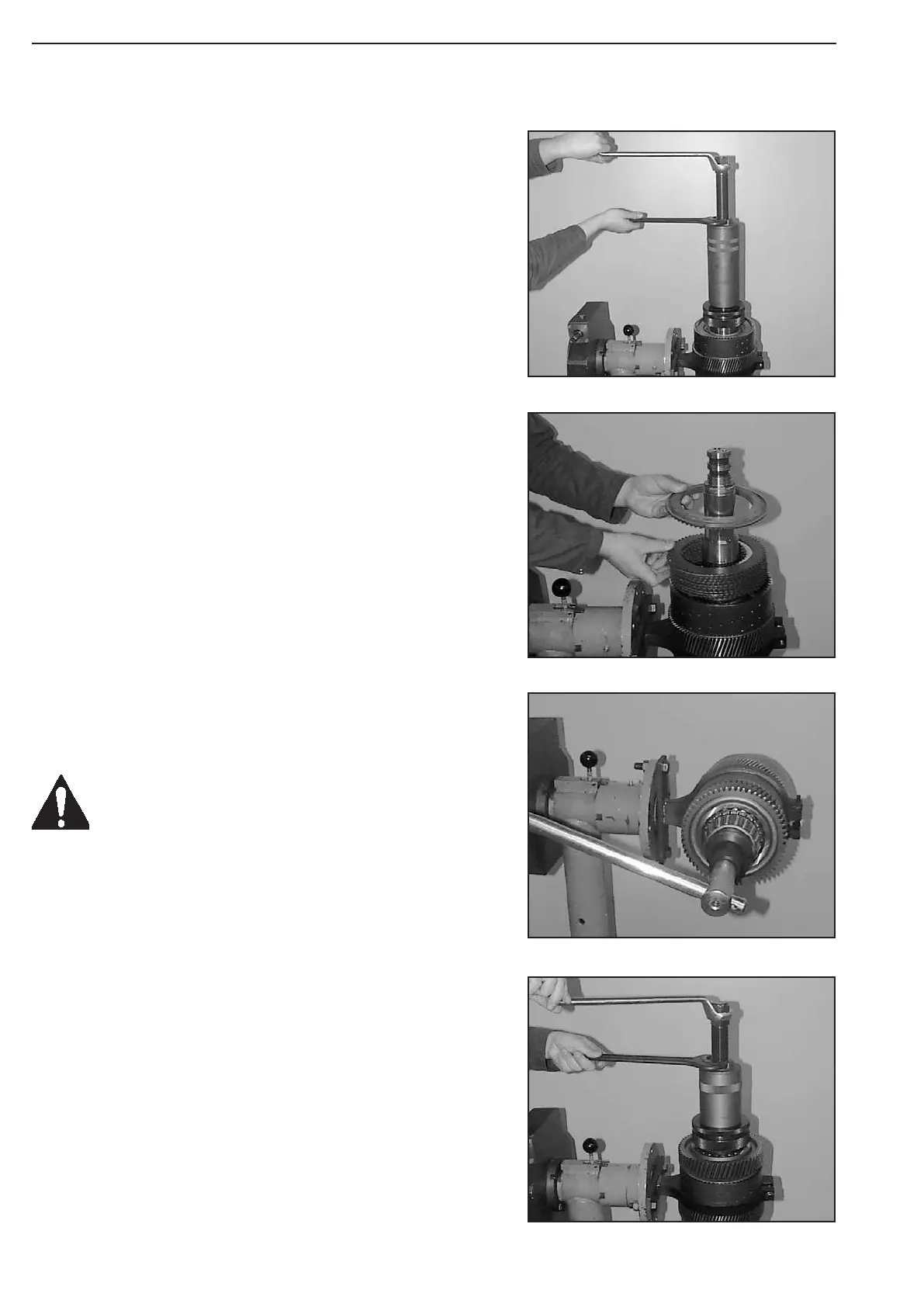

Figure 205
Figure 206
Tilt plate carrier by 90°.
Loosen slotted nut.
Slotted nut is secured with Loctite!
To prevent damage to the thread, heat slotted
nut prior to loosen it (abt. 120° C)!
(S) Hook spanner 504215
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
Pull tapered roller bearing from plate carrier.
(S) Grab sleeve 504245
(S) Basic tool 504243
Figure 204
Figure 203
Squeeze snap ring out.
Disassemble end shim and plate pack K2.
Pull tapered roller bearing off plate carrier.
(S) Grab sleeve 504251
(S) Basic tools 504243
