TRANSMISSION
Ch 2 page 182 Ch 2 page 183
TRANSMISSION
TRANSMISSION
Ch 2 page 182 Ch 2 page 183
TRANSMISSION

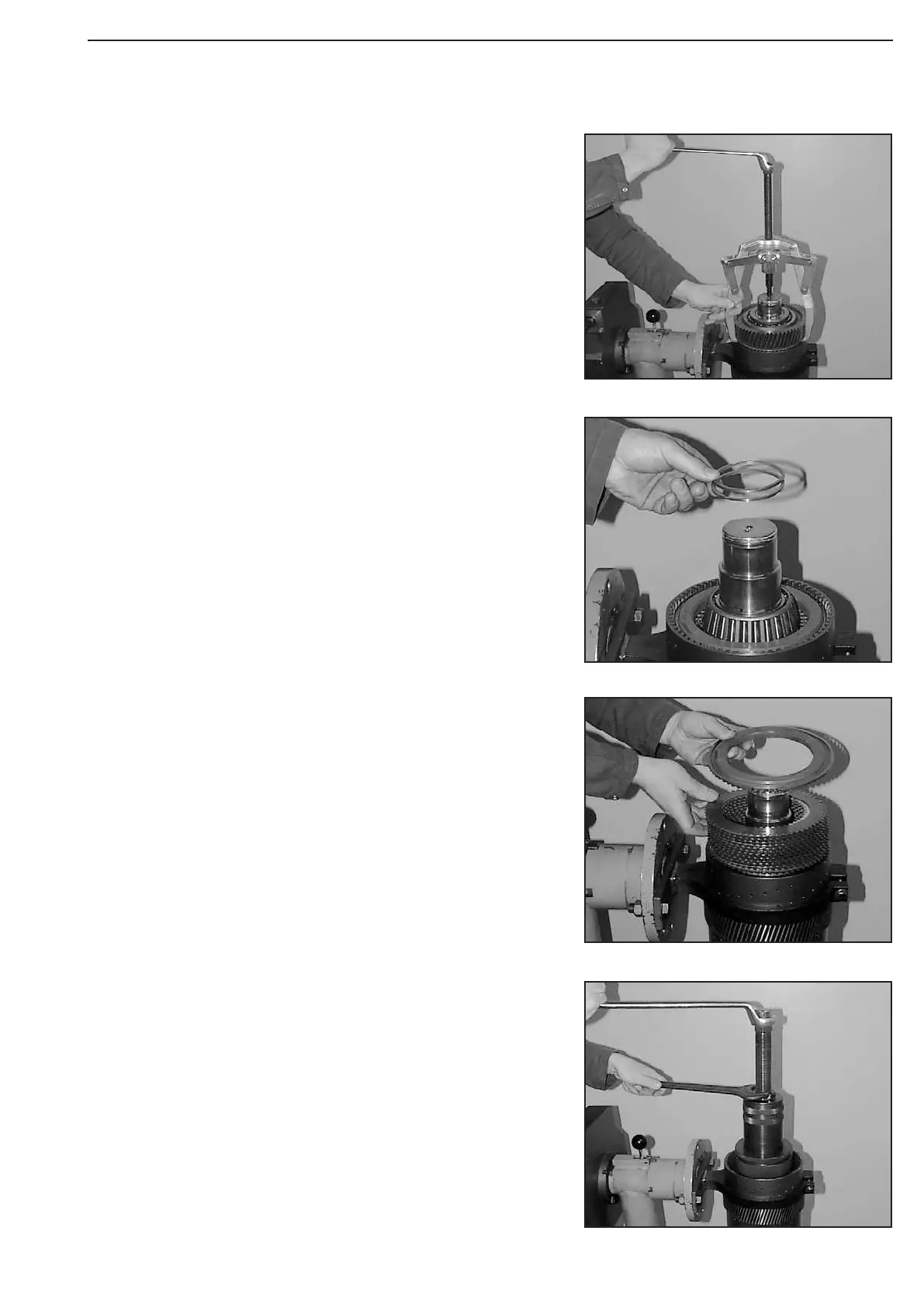

Figure 208
Figure 207
Remove adjusting rings.
Pull tapered roller bearing from plate carrier.
(S) 3-leg puller 504237
Figure 209
Figure 210
Squeeze out snap ring.
Disassemble end shim and plate pack KR.
Pull tapered roller bearing off plate carrier.
(S) Grab sleeve 504244
(S) Basic tool 504243
Then, disassemble both pistons (as described in Figure 196 and
197).
