Oil O-rings and piston bearing surfaces.
Uniformly insert K2-piston until contact is obtained.
Pay attention to the installation position of the
piston, see figure!
Lift plate carrier out of the clamping ring (S).
Pre-load compression spring by means of special device (S) and
squeeze snap ring into the annular groove of the plate carrier (ar
-
row), see Figure 282!
(S) Pressure piece 504211
Analogously install purge valve, piston and
compression spring on the opposite
side (KR-clutch) (see Figure 277-282)!
Now, lift plate carrier with the KR-side showing downwards into
the clamping ring (S) and fix it.
Tilt plate carrier by 180°.
Lay guide ring with the chamfer (arrow) showing upwards over the
compression spring and line up snap ring.
Introduce intermediate plate and compression spring.

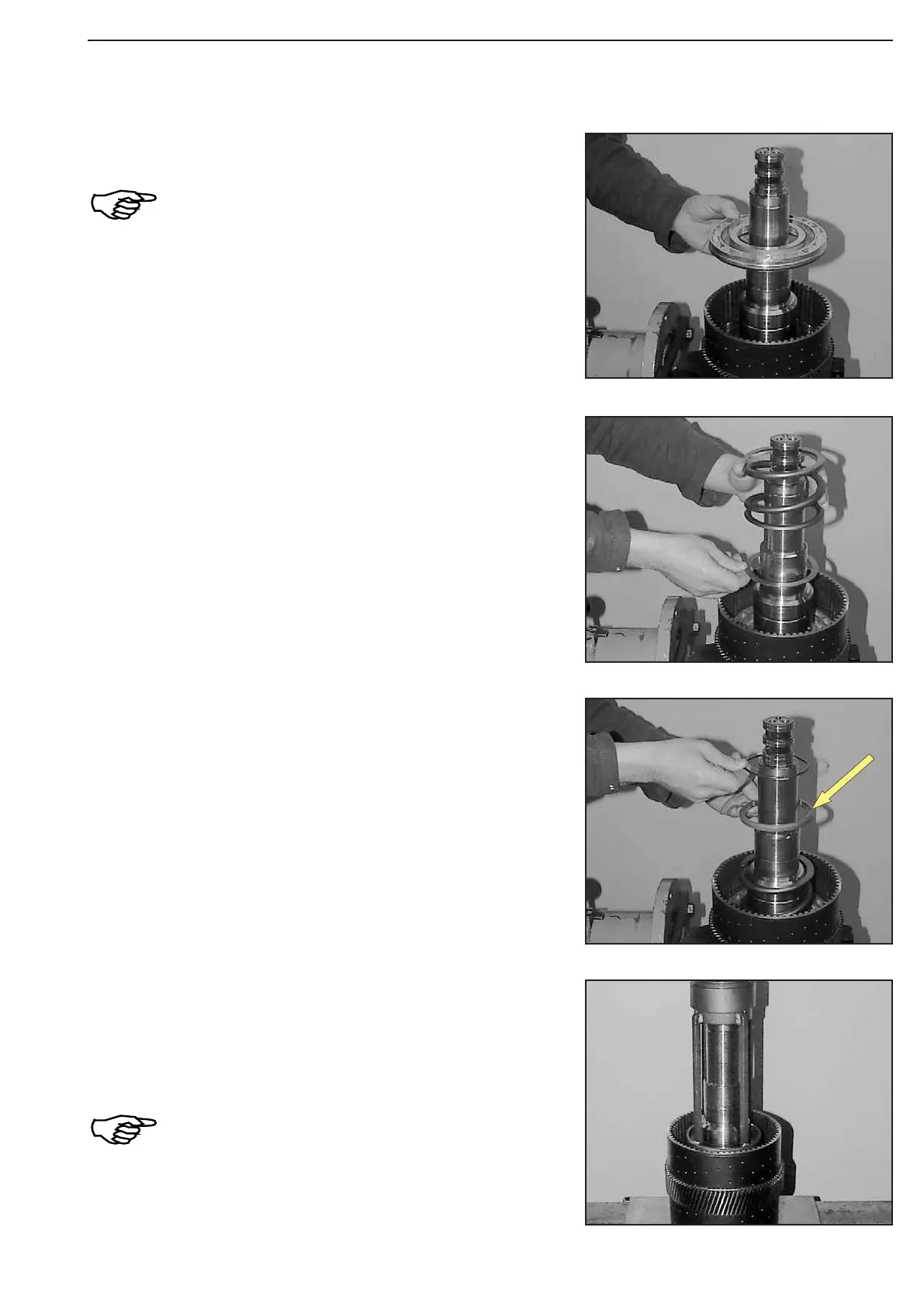

Figure 279
Figure 282
Figure 281
Figure 280
