SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 204 Ch 2 page 205
TRANSMISSION
TRANSMISSION
Ch 2 page 204 Ch 2 page 205
TRANSMISSION

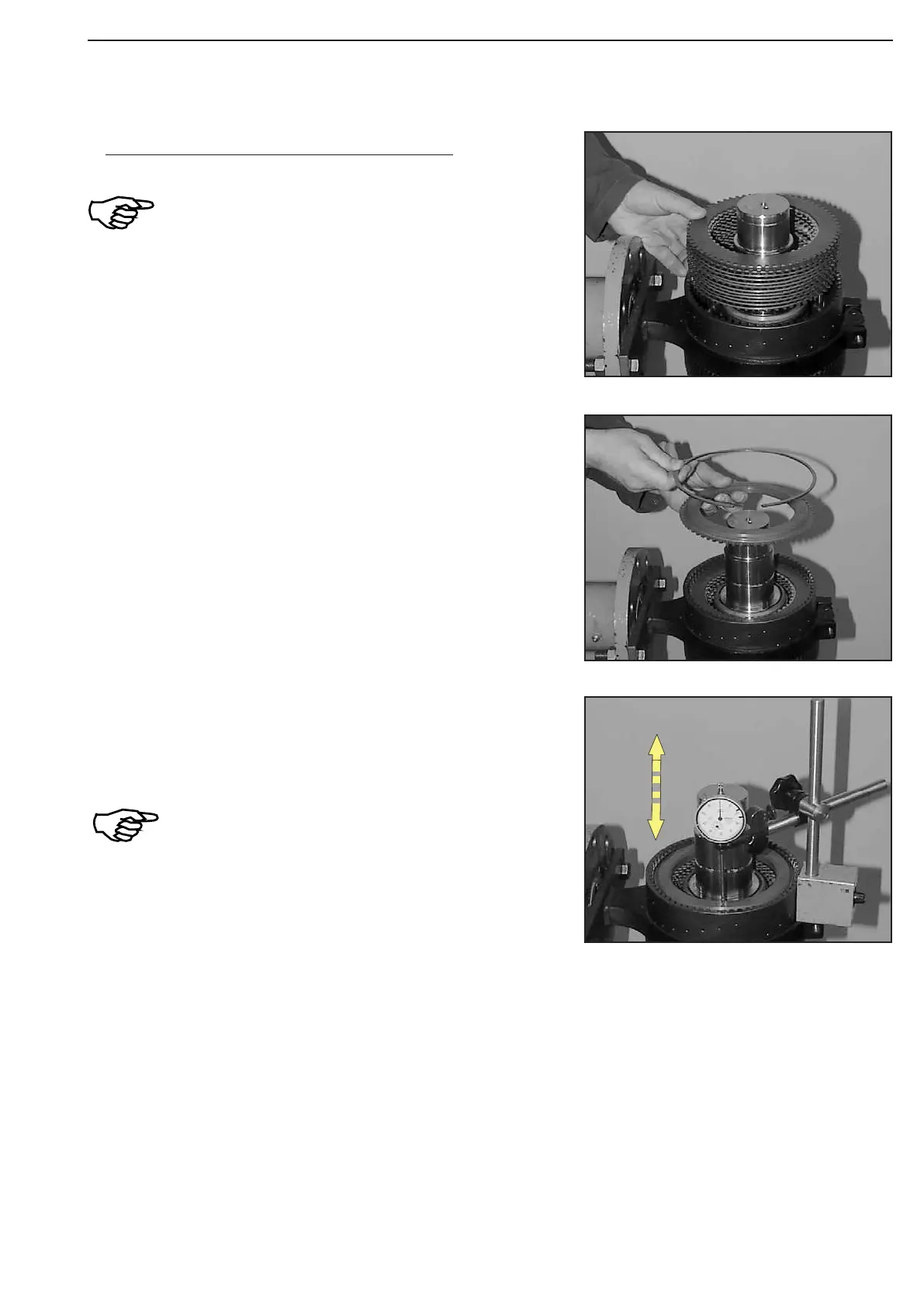

Figure 285
Figure 287
Figure 286
Check plate clearance-KR (Figure 285 ... 287) !
To ensure a correct measuring result, initially
install plate pack without oil!
Install plate pack according to the sketch or table
(Figure 283).
Press on end shim with about 100 N (10 kg) and set dial indicator
to „Zero“.
Now, press end shim against snap ring (upwards) and read plate
clearance from the dial indicator.
In case of deviations from the required plate
clearance correct with suitable inner plate
(optionally 2,5 to 4,0 mm)
or and snap ring Item 7 (optionally).
(S) Magnetic stand 504171
(S) dial indicator 504172
After the adjustment of the plate clearance, disassemble plate
pack. Oil plates according to ZF-list of lubricants TE-ML 03 and
install them again.
Insert end shim and fix it by means of snap ring.
