TRANSMISSION
Ch 2 page 140 Ch 2 page 141
TRANSMISSION
TRANSMISSION
Ch 2 page 140 Ch 2 page 141
TRANSMISSION

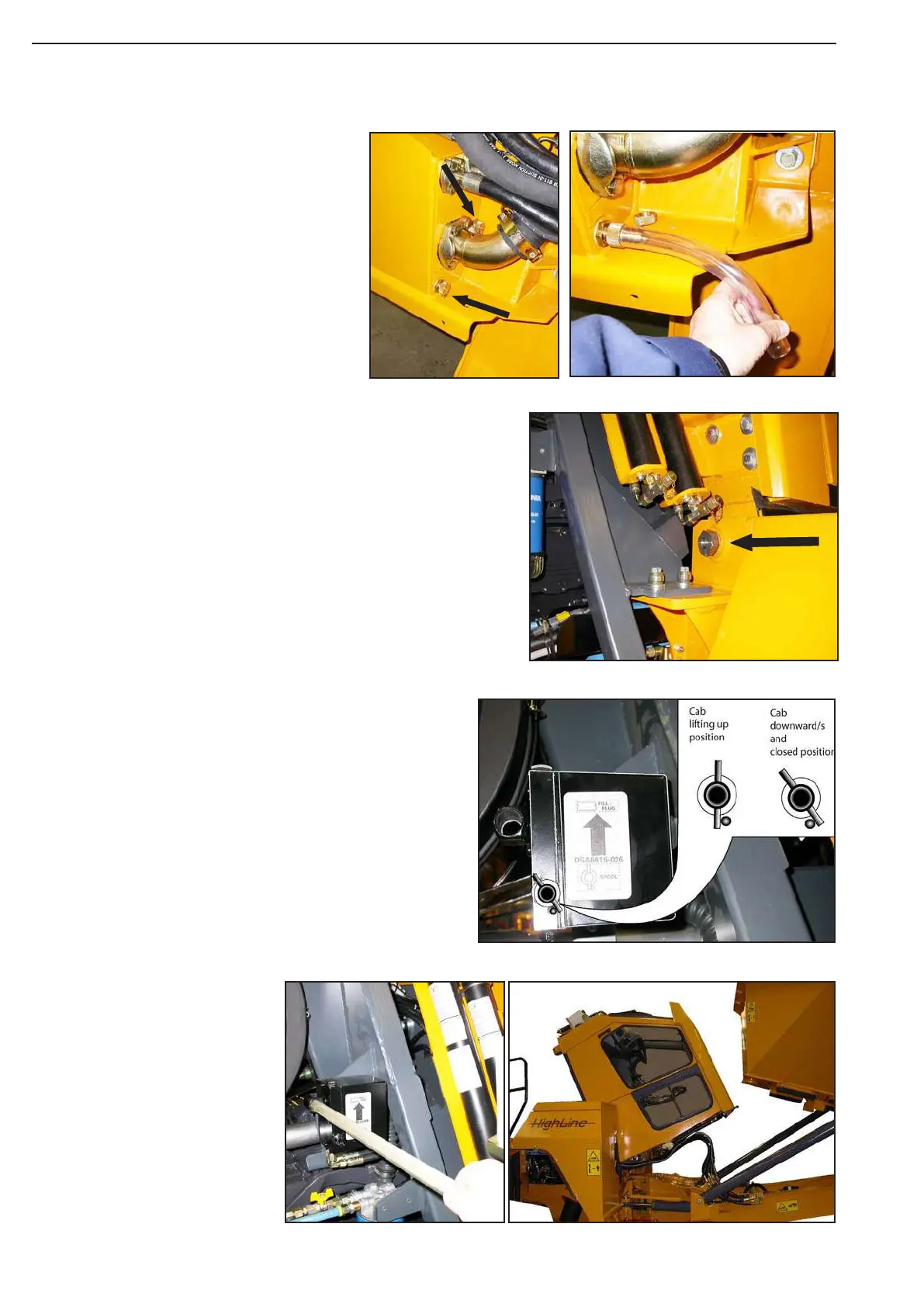

Tilting the cab:
Open the bonnet and take away the cab bolt, left and right
hand side.
Nv 46 mm
Turn the direction valve on the pump in lifting up
position.
With the handle, pump and
raise the cab.
When lower the cab, turn the
direction valve to the down
position and with the handle
lower the cab.
Drain both hydraulic oil reservoirs, see
chapter 7 maintenance - 2000 hour service
in the Operating & Maintenance Manual.
1 Main reservoir
2 Emergency steering reservoir
(Oil capacity approx. 190-200 l.)
NOTE
:
See in the hydraulic chapter about the filling
procedure.
1
2
