Engine
SHOP MANUAL MT26-31 - 06.2005
Tier-3 710655-
Ch 1 page 11
- Fasten the lifting chain 8373 to the rear
lifting eyes.
- Fasten the lever block 8394 to the front
lifting eye.
With attention, lift the engine out from the frame
Note:
The lifting eyes are sized to cope
with a maximum angle of 30°.

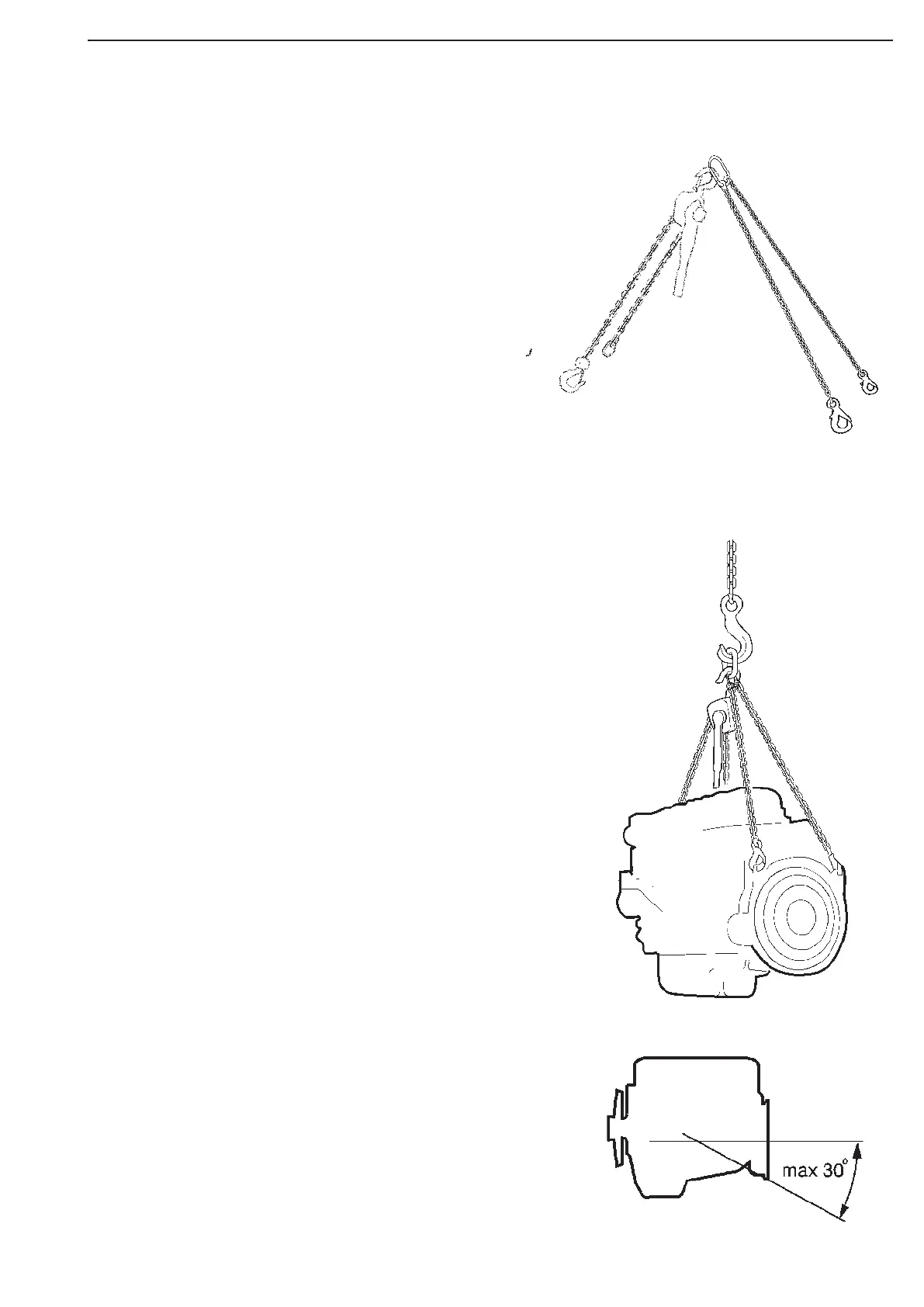

Lifting the engine
Note:
The engine lifting eyes are designed
for lifting the engine only, not the
engine together with its ancillary
equipment (alternator, gearbox etc.)
or fram
8394 8373
Lever block Lifting chain
