TRANSMISSION
Ch 2 page 154 Ch 2 page 155
TRANSMISSION
TRANSMISSION
Ch 2 page 154 Ch 2 page 155
TRANSMISSION

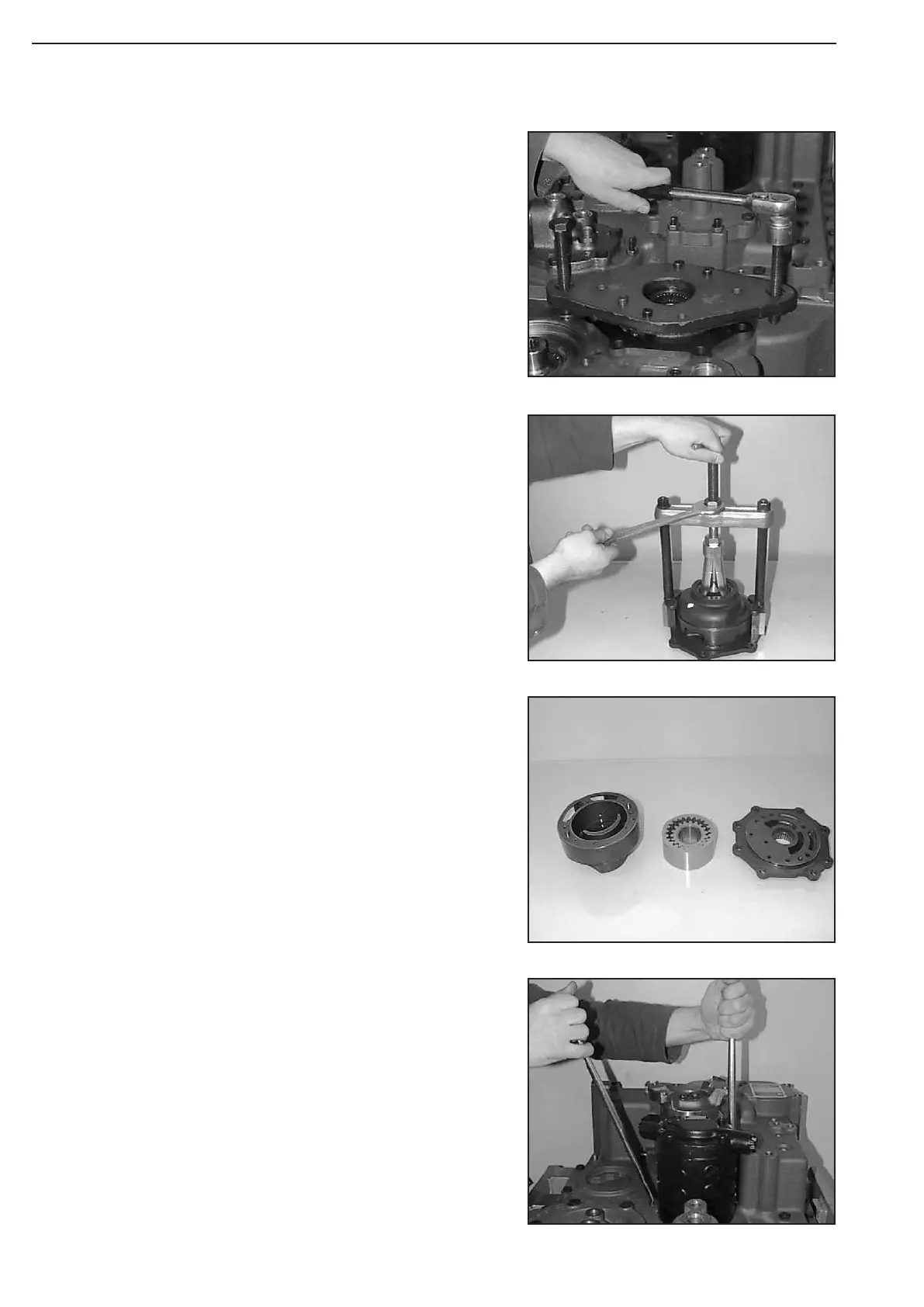

Figure 139
Figure 142
Figure 141
Figure 140
Loosen socket head screws (M8) and position puller device.
Pull transmission pump out of the housing bore.
Tapping onto the housing face will support pulling out!
(S) Puller device 504160
3.1.3 Emergency steering pump
Loosen hex. head screws and pry emergency steering pump out of
the housing.
(S) Crow bar 504210
Mark installation position!
Loosen socket head screw, dismantle pump cover and remove
rotor set
If traces of wear should be encountered in the pump housing or
the housing cover, the complete pump has to be renewed!
Now, introduce the rotor set with the chamfer on the tooth crest
showing downwards and install housing cover again.
Torque limit (M8/8.8) ..................... M
A
= 23 Nm
Torque limit (M6/8.8) ..................... M
A
= 9,5 Nm
Pull bearing outer race out of the bore and remove spacer.
(S) Internal puller 504204
(S) Counter support 504203
To Next Page
