TRANSMISSION
Ch 2 page 194 Ch 2 page 195
TRANSMISSION
TRANSMISSION
Ch 2 page 194 Ch 2 page 195
TRANSMISSION

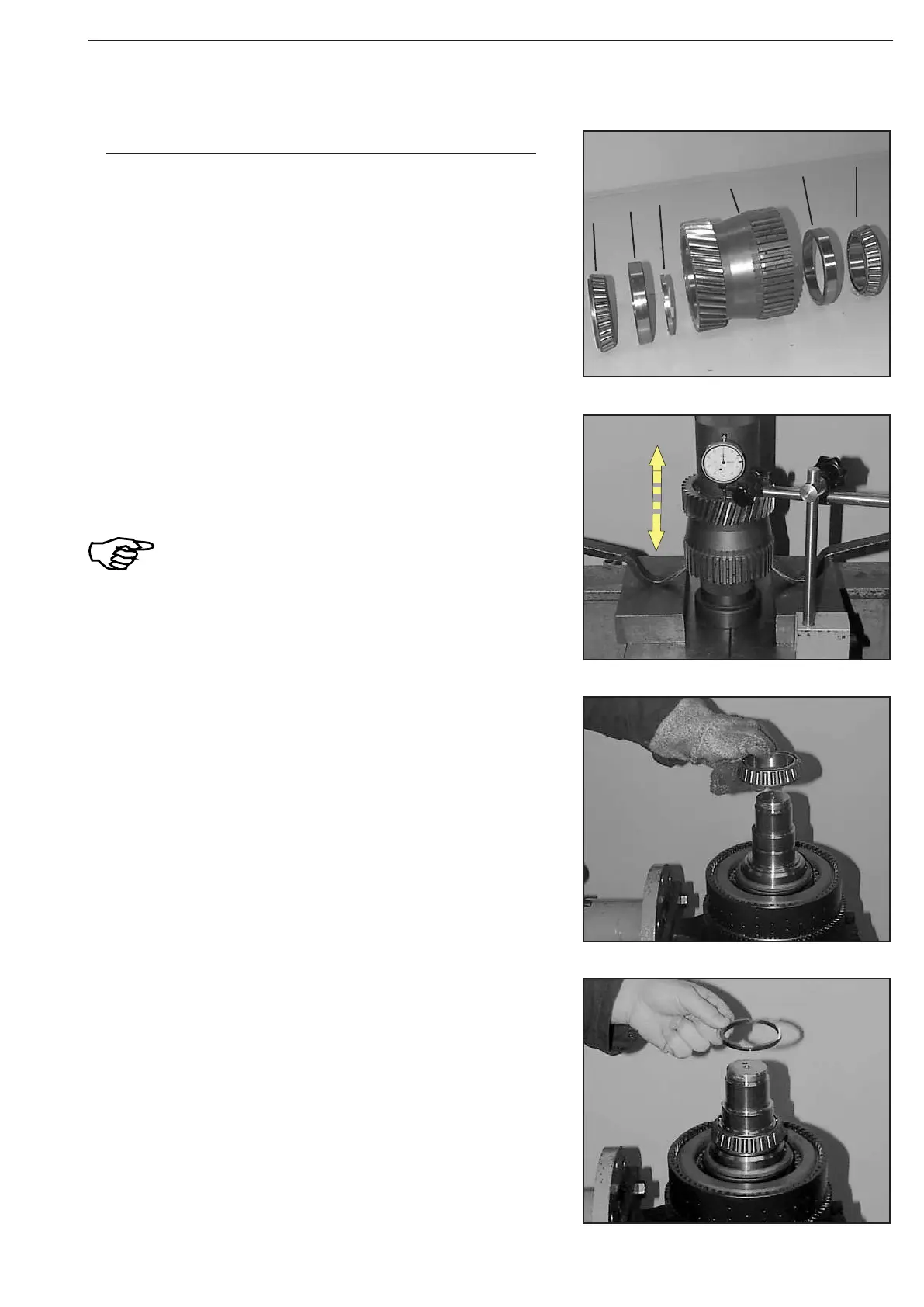

Pre-assemble and install spur gear -K4 (Figure 252 ... 257):
The figure on the left shows the components of the spur gear-K4
1 = Bearing inner race
2 = Bearing outer race
3 = Shim (optional, empirical value s = 5,4 mm)
4 = Spur gear
Line up the determined shim (see Figure 252 and 253) with the oil
groove showing upwards.
Heat bearing inner race and line it up until contact is obtained.
Check axial gap – spur gear bearing 0,0 ... 0,05 mm!
Install components according to Figure 252.
Pre-load tapered roller bearing with about 50.000 N (5 To.) and
determine axial gap with dial indicator
In case of deviations from the required axial
gap, correct with suitable shim
(Item. 3/Figure 252)!
(S) Pry bar 504209
(S) dial indicator 504172
(S) Magnetic stand 504171
Figure 252
Figure 255
Figure 254
Figure 253
1
3
1
4
2
2
