TRANSMISSION
Ch 2 page 220 Ch 2 page 221
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 220 Ch 2 page 221
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
Figure 339
Figure 342
Figure 341
Figure 340

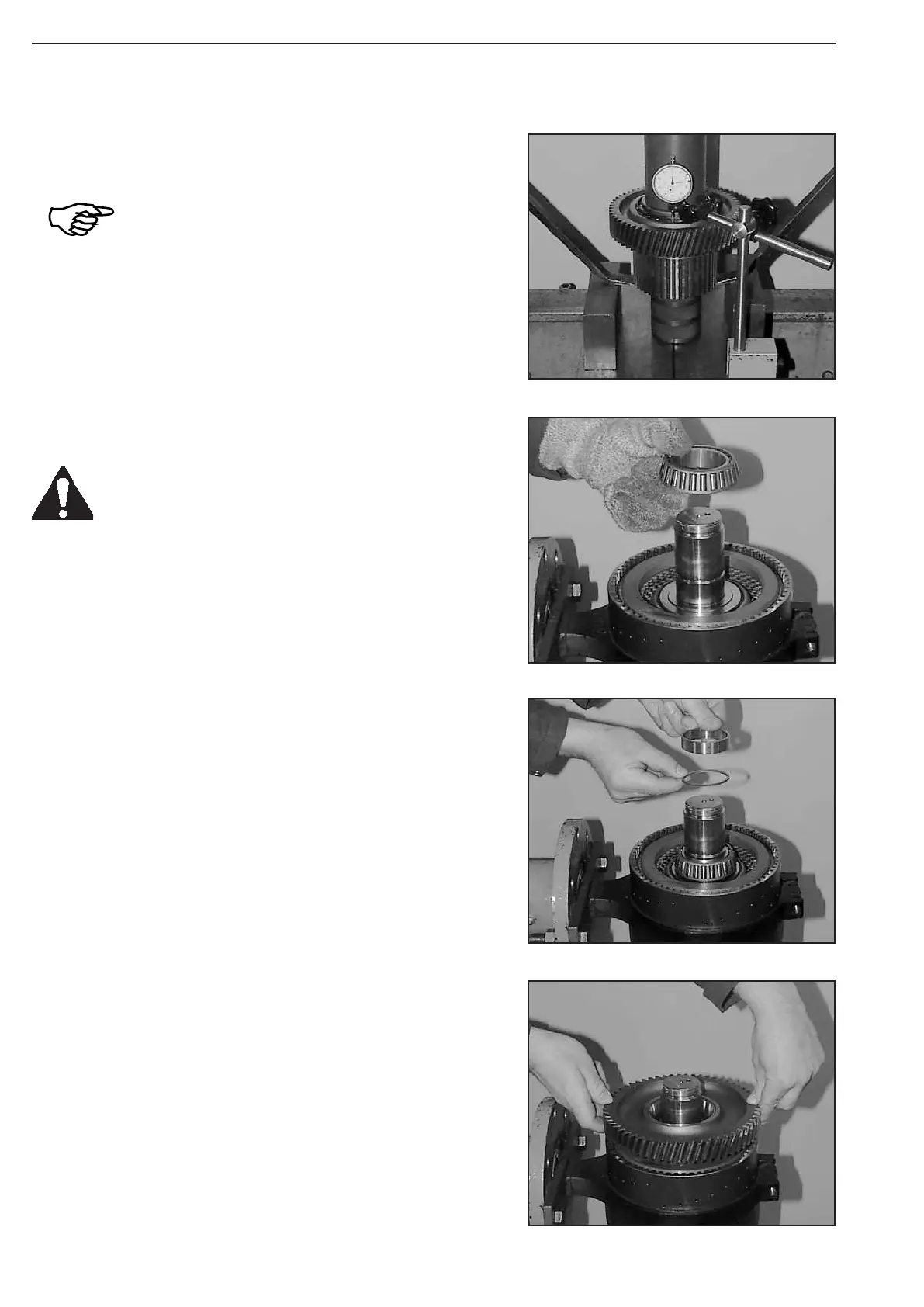

Pre-load tapered roller bearing with about 50 000 N (5 t) and de-
termine axial gap with the dial indicator
In case of deviations from the required axial
gap, correct with suitable shim
(Item 4/Figure 335)!
(S) Pry bar 504209
(S) Magnetic stand 504171
(S) Dial indicator 504172
Heat up bearing inner race and position it until contact is obtained.
Use protective gloves!
Introduce spur gear until all inner plates are accommodated.
Introduce determined shim ( Figure 335 ... 339) and ring 3.
