Figure 412
Figure 416
Figure 415
Figure 413

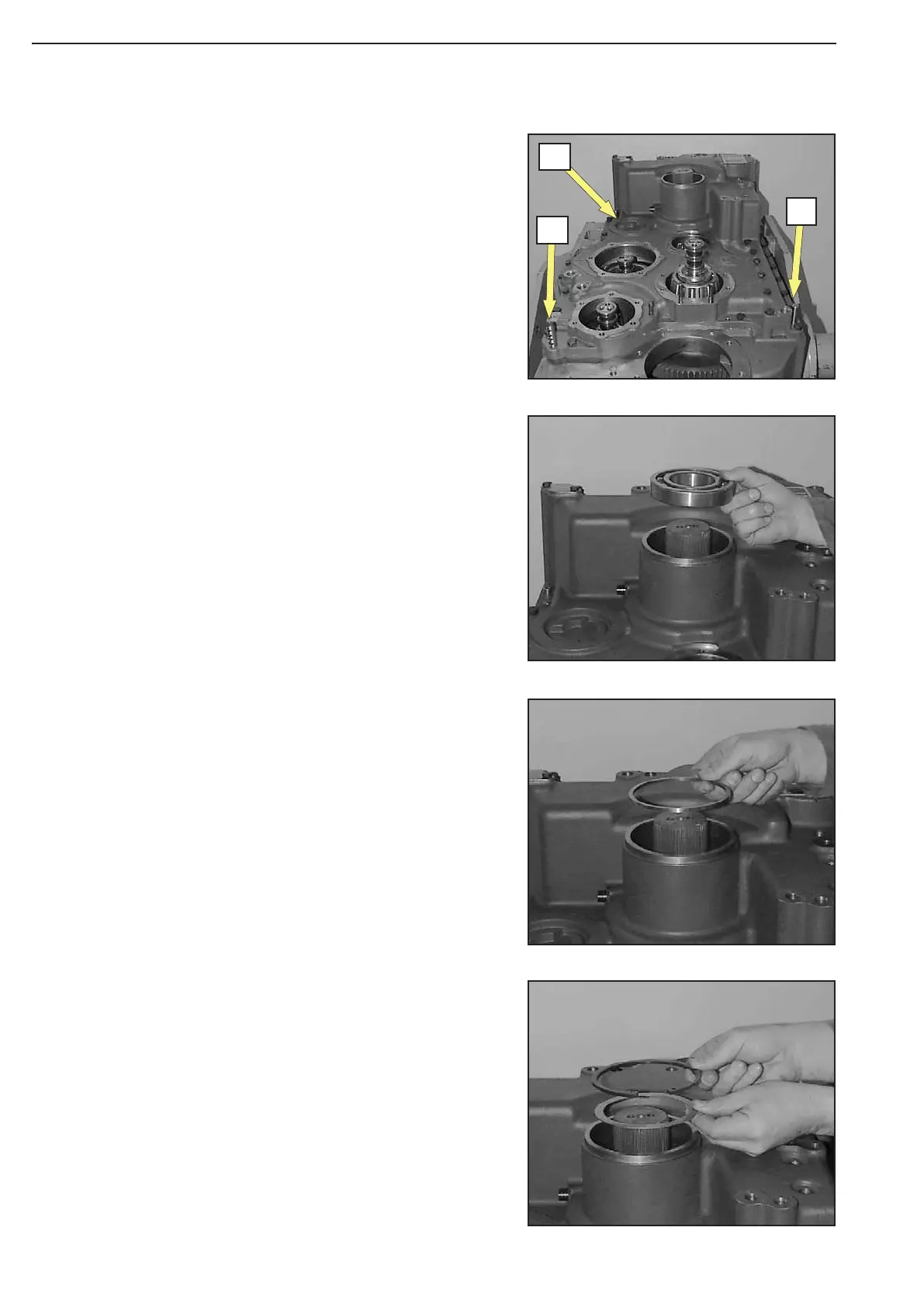

Insert both cylindrical pins (arrow 1 and 2) until contact is obtained.
Fasten housing cover by means of screw connection.
Drive in roll pin (arrow 3) flush-mounted.
Torque limit (M10/8.8) ................................... = 46 Nm
Fix ball bearing without gap by means of shim and circlip.
(S) Clamping pliers 504233
Introduce shim s = 4,0 mm .
Insert ball bearing until contact is obtained.
1
3
2
