TRANSMISSION
Ch 2 page 284 Ch 2 page 285
TRANSMISSION
TRANSMISSION
Ch 2 page 284 Ch 2 page 285
TRANSMISSION

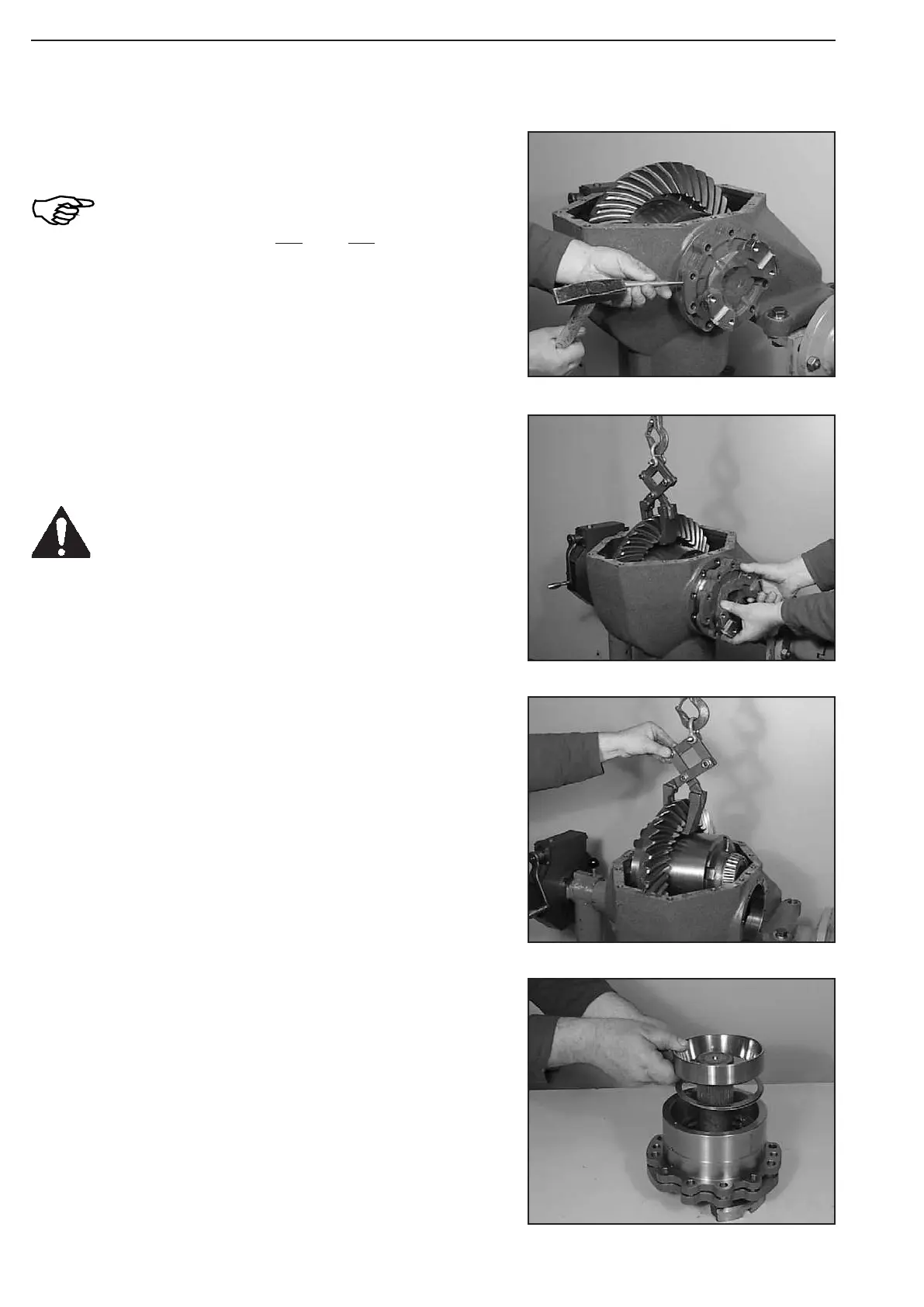

Figure 557
Figure 560
Figure 559
Figure 558
Mark radial installation position of the seal retainer as well as of
the bearing cover to the axle drive housing.
The LH resp. RH seal retainer as well as the
bearing cover are different; mark the
components with
one resp. two punch marks!
Now, loosen hex. head screws.
Separate bearing outer race and shim from bearing cover.
Lift the differential out of the housing, using lifting device.
Locate differential by means of lifting device and separate the
flange shaft along with bearing cover from the housing.
Disassemble the opposite flange shaft accordingly.
Pay attention to the Note of Figure 557 !
(S) Lifting device 505155
