TRANSMISSION
Ch 2 page 302 Ch 2 page 303
TRANSMISSION
TRANSMISSION
Ch 2 page 302 Ch 2 page 303
TRANSMISSION
Figure 618
Figure 619

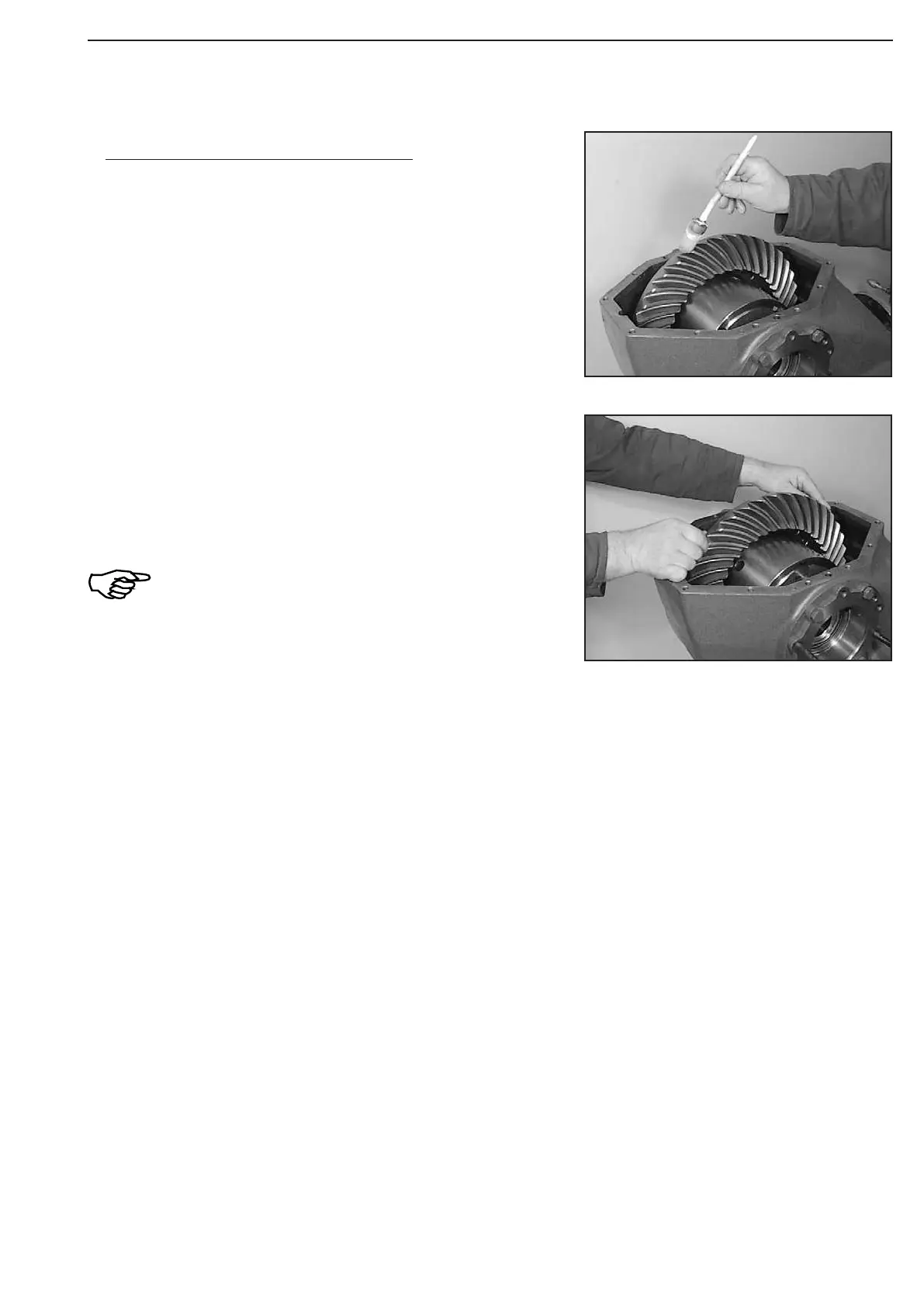

Check Contact pattern (Figure 618 and 619):
Wet some coasting flanks and traction flanks of the crown wheel
with marking ink.
Roll the crown wheel several times in both directions over the drive
pinion.
Compare the obtained contact pattern with the Examples of Con
-
tact patterns, Page 0.06 and 0.07.
In case of a contact pattern deviation, a
measuring error has been made at the
determination of the shim (Figure 581), which
has to be absolutely corrected !
