TRANSMISSION
Ch 2 page 308 Ch 2 page 309
TRANSMISSION
TRANSMISSION
Ch 2 page 308 Ch 2 page 309
TRANSMISSION

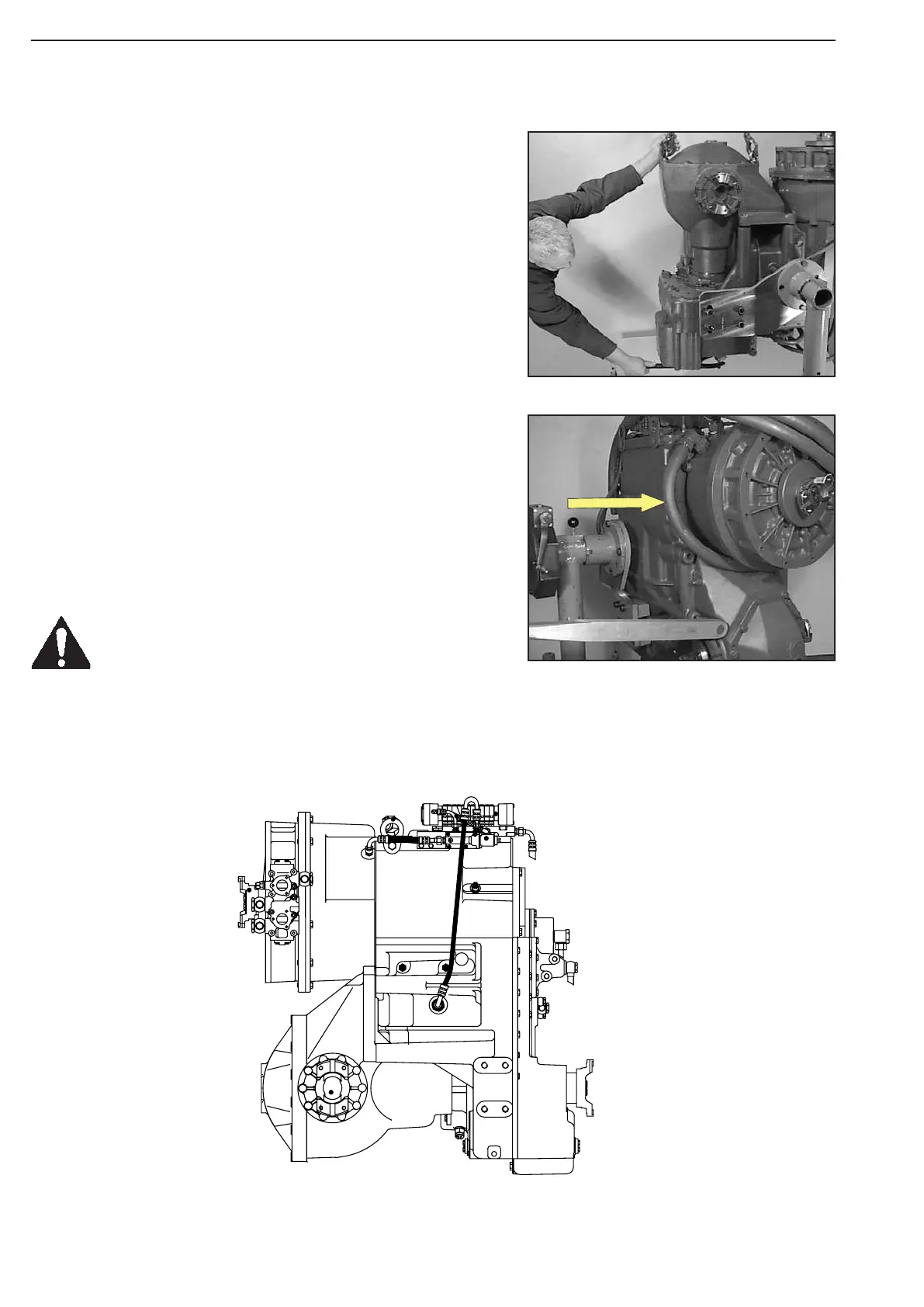

Figure 634
Figure 635
Introduce differential carrier until contact is obtained, using lifting
device.
(S) Lifting chain 504198
Prior to the commissioning of the unit, carry
out the oil filling according to the Operating
Instructions !
Tilt transmission 90°.
Fasten differential carrier on the gearbox housing, using socket
head screws.
Torque limit (M30/10.9) .............................. 1900 Nm
