Engine
SHOP MANUAL MT26-31 - 06.2005
Tier-3 710655-
Ch 1 page 29
1. Oil pressure sensor
2. Sensor for charge air temperature and pressure
3. Coolant temperature sensor
4. Engine speed sensor (2)

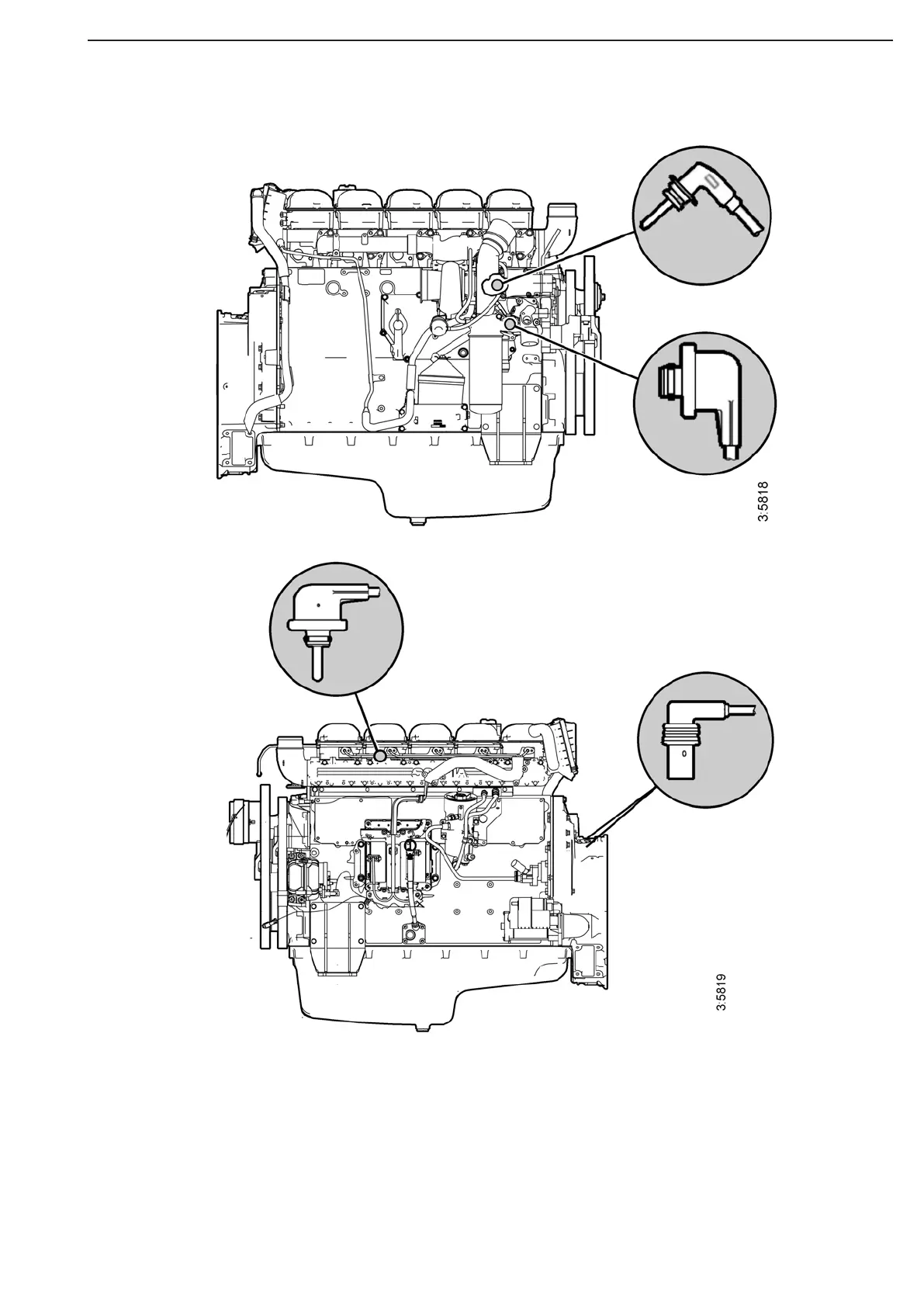

Positions of sensors for ECU
2005-11:1 © Scania Industrial & Marine Engines 13
Positions of sensors for EMS with S6 on DC9
1. Coolant temperature sensor
2. Oil pressure sensor
3. Sensor for charge air temperature and
pressure
4. Engine speed sensor (2)
5. Coolant level monitor (located in the
expansion tank)
1
2
3
4
