Engine
SHOP MANUAL MT26-31 - 06.2005
Tier-3 710655-
Ch 1 page 63
Take care when carrying out the
adjustment if the dimension is well
outside the adjustment dimension.
The spring is pre-tensioned and can cause
personal injury if it is released.
PDE32
1.

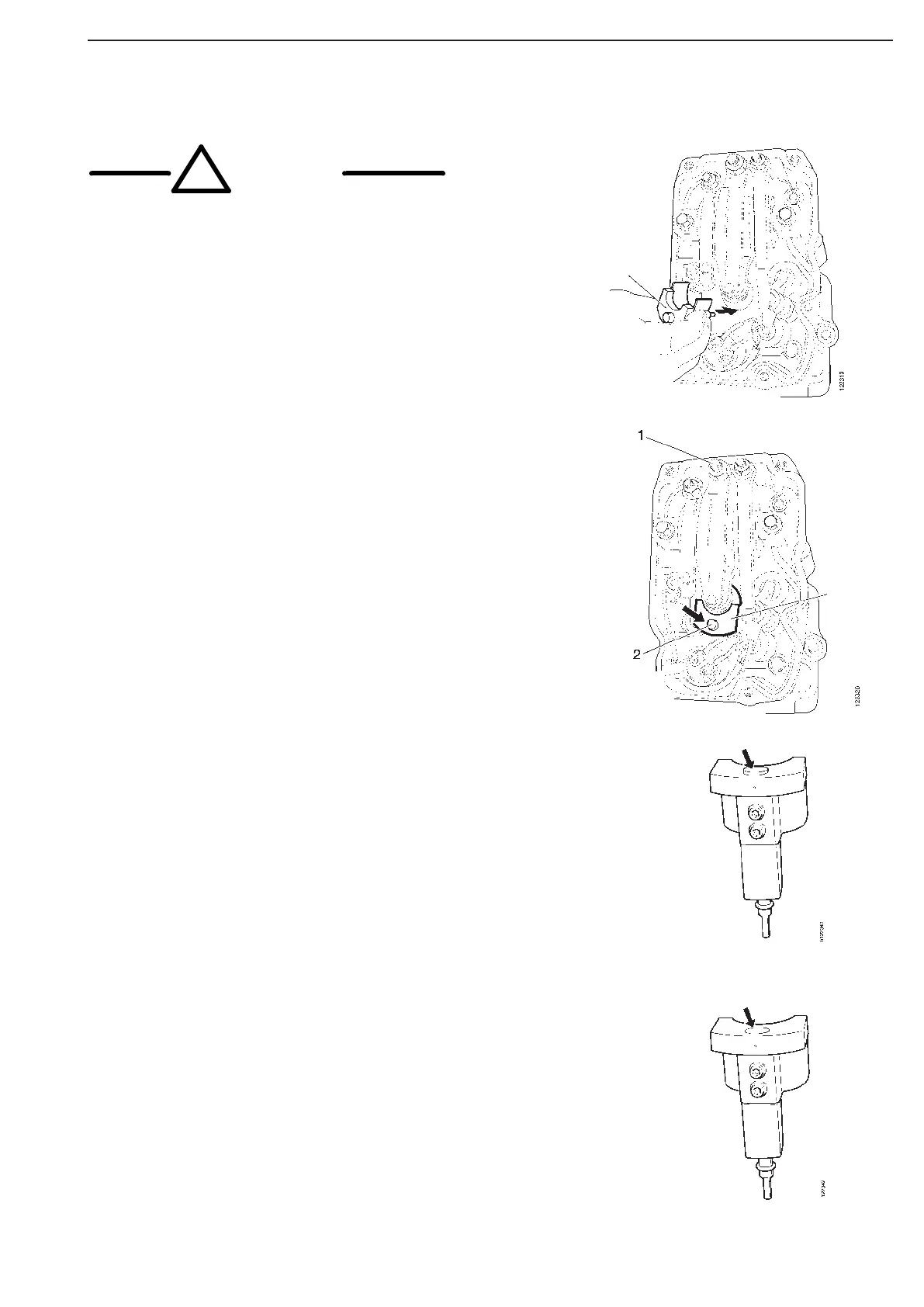

Position setting tool 512264 with the metal
plate around the injector spring.
2.
Finely adjust dimension A by simultaneously using a finger to
sense that the small piston 2 is level with the flat upper surface of
the tool.
It is possible to sense differences of less than a tenth of a
millimetre.
3.
If tool 512264 is not available:
Measure the distance between plane a and the top of the valve
spring collar using a digital sliding caliper. Adjust the rocker posi-
tion by means of the adjusting screw until the dimension is 69.9
+/- 0.1 mm.
4.
Tighten the lock nut to 39 Nm.
512264
512264
WARNING!
!
