REAR WAGON
If tilt bearings only are going to be replaced it is not necessary to disconnect the tilt cylinders, tail gate operating
chains, and remove the body.
Remove the six bolts securing each tilt bearing bolt to the dumper body..
Disconnect lubrication lines if equipped.
Lift by the two rear lifting points to release the weight of the dumper body, and drive the bolts out, using a soft
dowel. Retrieve the thrust washers.
Lift clear, and place wooden blocks between body and rear frame.
WARNING!__________________________________________
Be aware of the risk of injury to people and equipment when
handling heavy objects!
Installation
Check the condition of bolts, bushings, thrust washers and seals, renew if necessary.
Place, seal ring and thrust washer on bearing bolts, and position dust seals in rear frame.
Position dumper body to align the tilt bearings, and drive the bolts in, taking care to line up the holes for the
securing screws.
Tighten securing screws and replace lubrication lines if equipped.
Lubricate the bearings by grease gun or lubrication system.
Control
Check that all parts are located as before removal, and that hoses are correctly routed.
Tilt dumper body, and check the operation of the tilt bearings.
Seal
Ring
Thrust
Washer
Bushing
Tilt Bearing
Bolt
Dust Seal
Rear
Frame
Dumper
Body

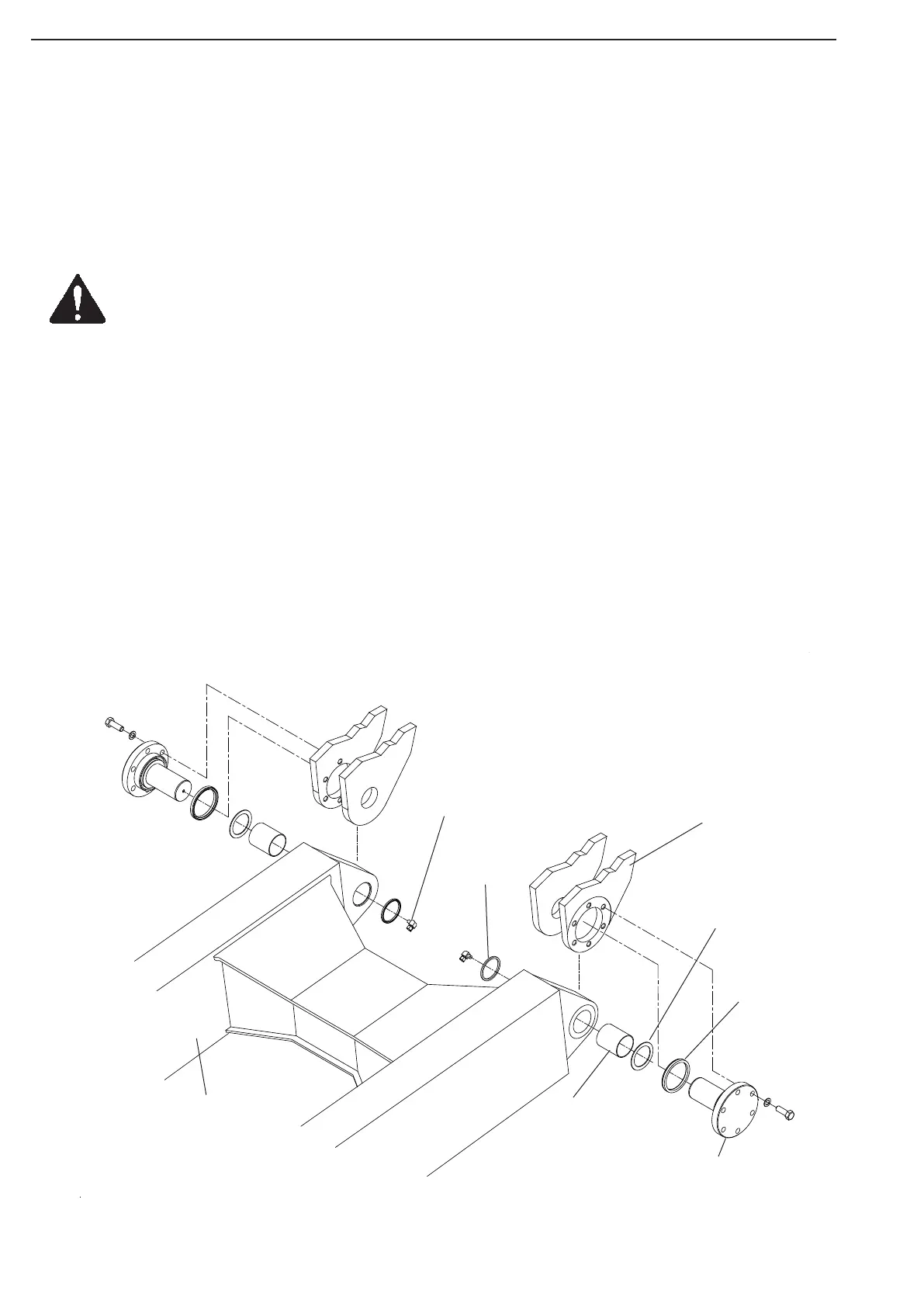

Fig 8.3 Tilt Bearing
Lubrication
Line
8.2.2 Tilt Bearing
