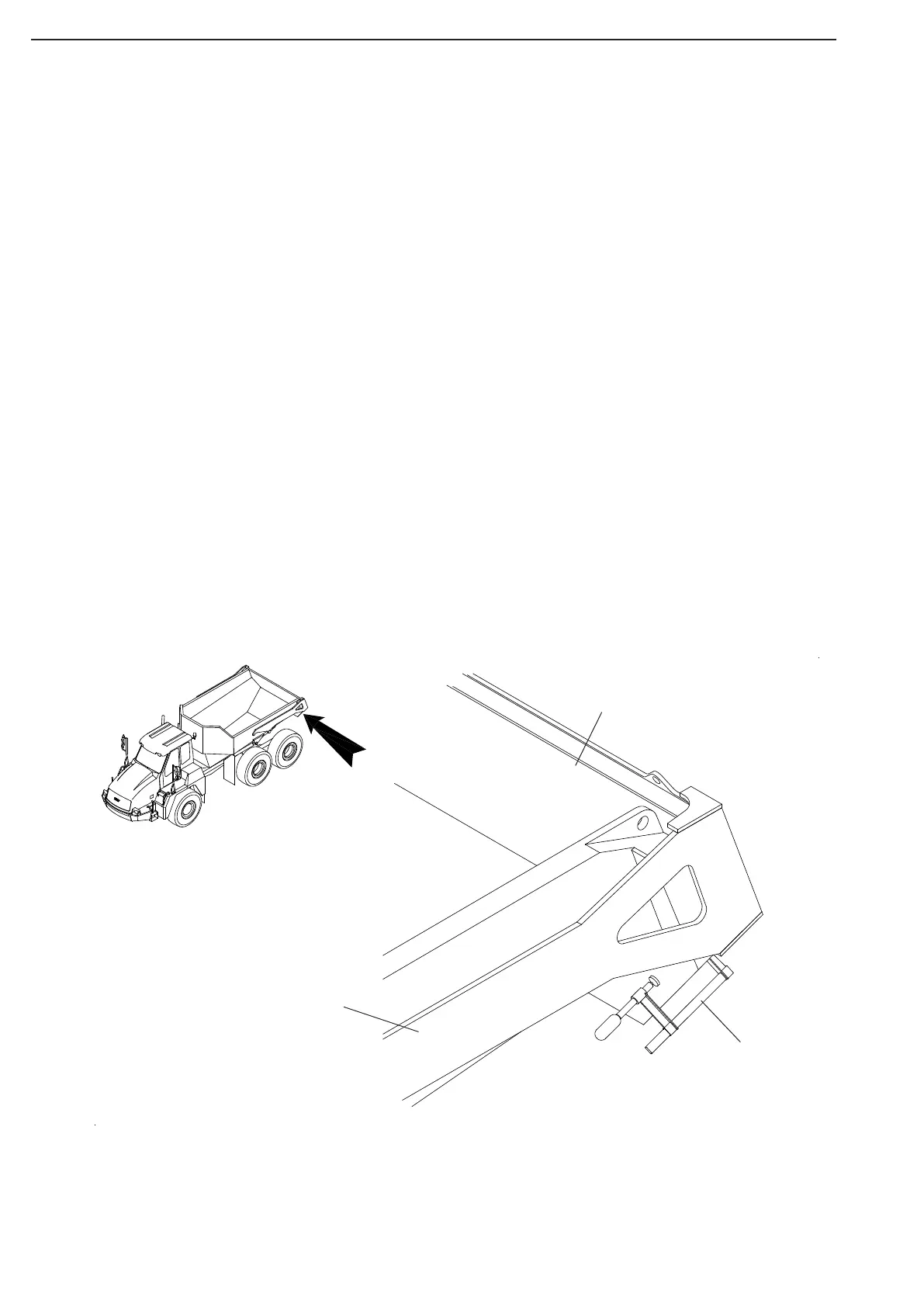

Fig 9.1 Securing Tail Gate
Tail Gate
Tail Gate
Arm
Clamp
9 Optional Equipment
The MOXY trucks are usually equipped with a number of options.
For maintenance purposes the more complex of these options will be described in this chapter.
The optional automatic tail gate is closed when dumper body is down in transport position, and opens as the
body is tilted.
The tail gate consists of the gate itself, and two arms pivoting in the tail gate bearings.
Removal
Thoroughly clean the tail gate and area around for any accumulated dirt
Dumper body must be in the down position for removal of the tail gate.
Secure the tail gate to the dumper body by using heavy clamps.
