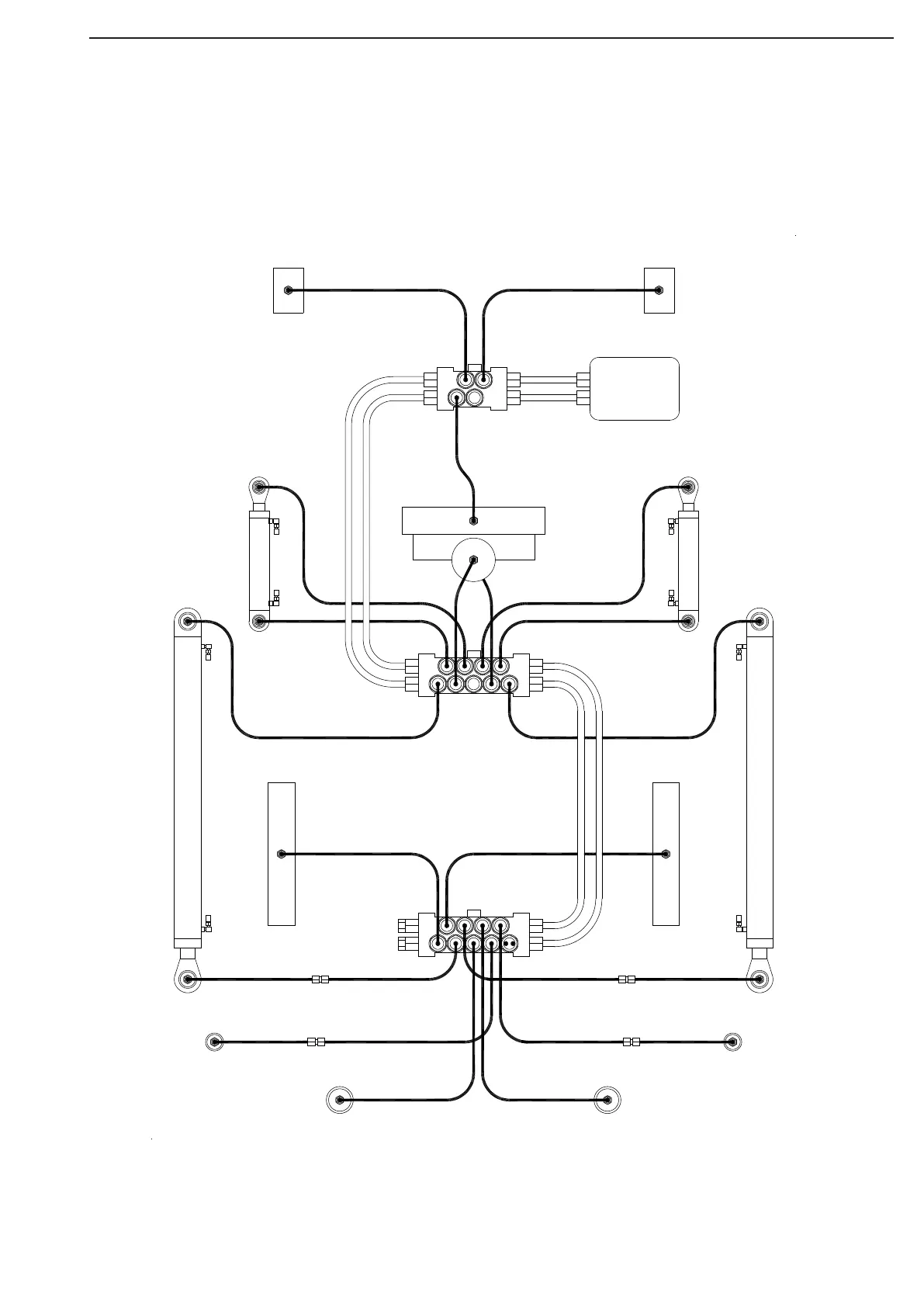

Fig 9.4 Central Lubrication System
Left Front
Suspension
Bearing
Right Front
Suspension
Bearing
Lubrication
Unit
Right
Steering
Cylinder
Articulation
Bearing
Articulation
Hinge
Right
Dumper
Body
Tilt Bearing
Right
Tail gate
Bearing
Right
Tilting
Cylinder
Right
Tandem
Bearing
Metering
Block 1
Metering
Block 2
Metering
Block 3
Left
Tilting
Cylinder
Left
Tandem
Bearing
Left
Tail gate
Bearing
Left
Dumper
Body
Tilt Bearing
Left
Steering
Cylinder
The Central Lubrication System takes care of some of the daily maintenance, and greases a number of loca-
tions automatically as the dumper is running.
9.2 Automatic Central Lubrication
