SHOP MANUAL MT26-31 - 06.2005
Engine
Tier-3 710655-
Ch 1 page 66

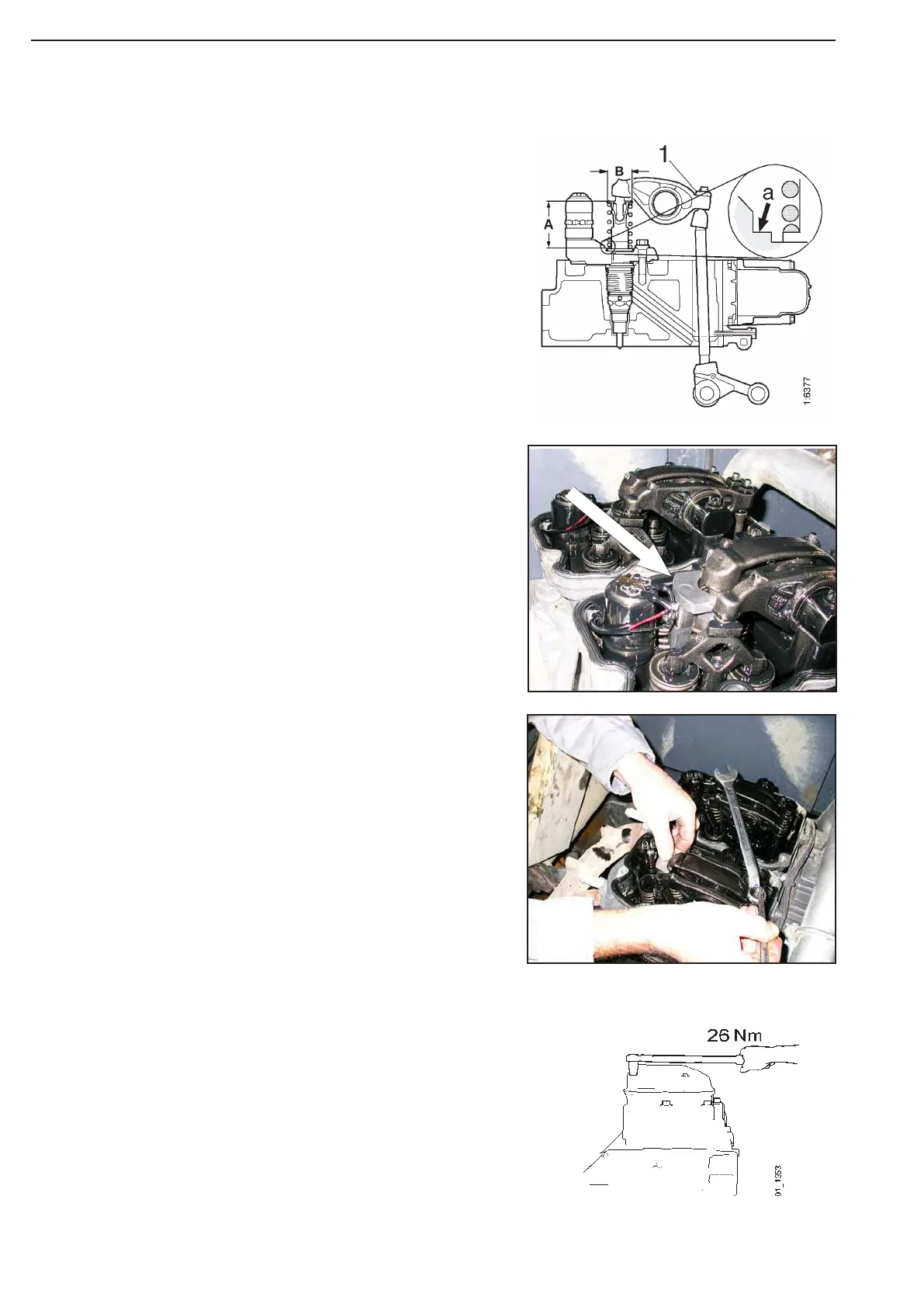

Dimension A= PDE32: 69.9±0.1 mm
Dimension B= PDE32: 38.5 mm
Placing of the tool 512264
Check the clearanse, using a finger to sense that the small
piston is level with the flat upper surface of the tool.
It is a good idea to mark the rocker arm with a
pen after adjustment to keep track of what has
already been adjusted.
Torque tighten the lock nut to 39 Nm after
adjusting.
