Subject to modifications
User Manual
Operation Instructions
2.1A-30008-A04
Page 27 of 48
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259
Setting and Operation, continuation
Programming Mode, continuation
P3: Setting number of cycles
If lube points are divided via sub-divider valves (SSV 6) and
a main divider valve (SSV 6, SSV 8), never exceed a maxi-
mum of 18 (24) lube points.
Display Press
4218a99
4214a99
4219a04
4219a99
4222a99
6001a02
IMPORTANT
Settings are only possible in connection
with progressive divider block SSV 6 or
SSV 8 KNQLS (connected as a main
divider block) and a jumper attached to
the p.c.b.
Press button so that “P3“ appears in the display.
Max. cycle time VDC …………………………………… 1 to 5
When releasing the button, the currently set value appears
(here the factory-set value: 1 cycle).
Press button.
Settings are made in one direction: 1, 2, 3, 4, 5
6252b04
4214a99
6254b04
6253b04
4222a99

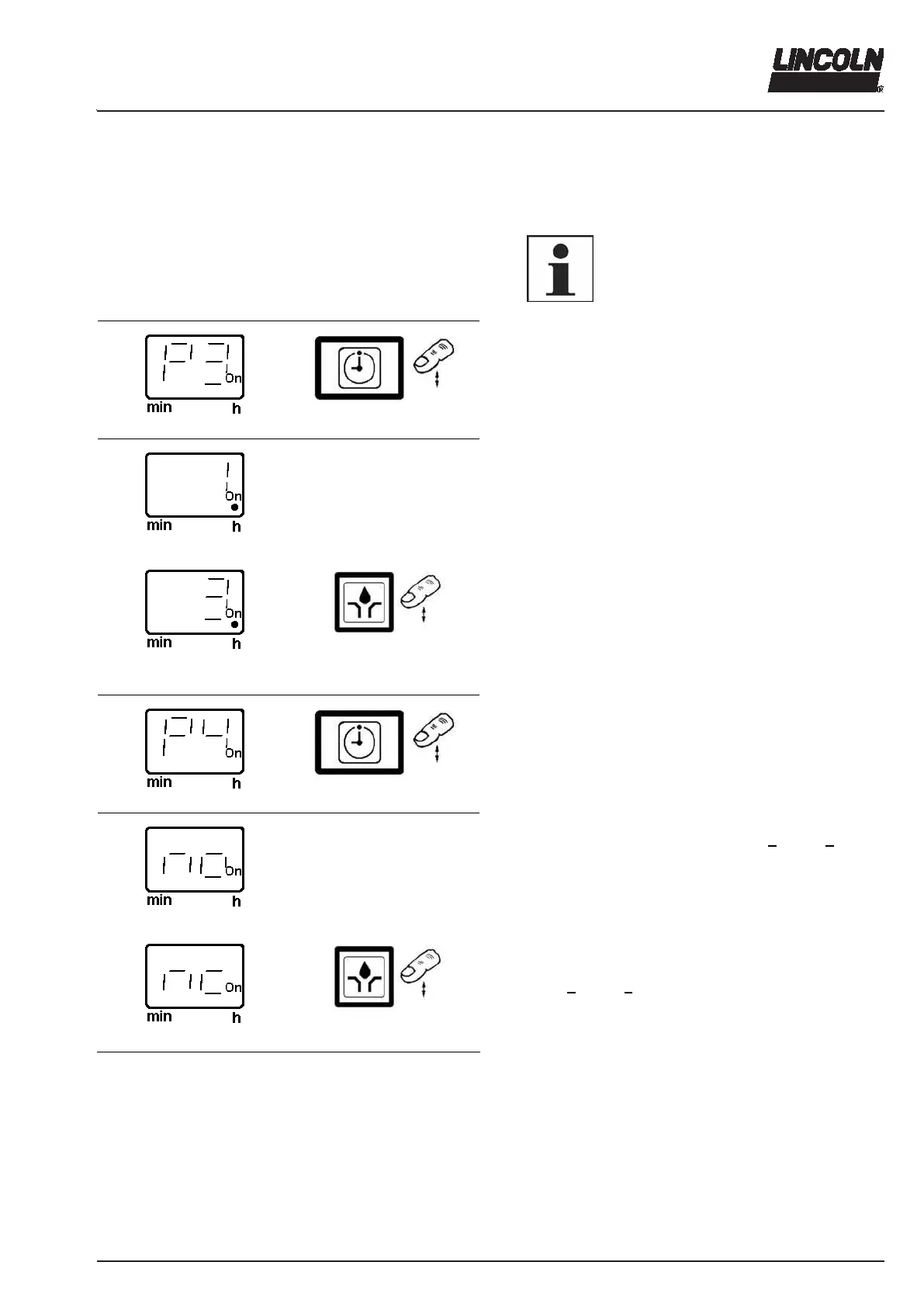

Fig. 42 Programming mode (continuation next page)
P4: Programming of the output signal on the monitoring
relay for external fault indication (external fault contact)
Press button so that “P4“ appears in the display.
When releasing the button, the currently set value appears in
the display (here the factory-set value NO, n
ormally open
contact).
Press button.
The external fault contact is modified by programming it
as NC n
ormally closed contact.
