Issue 2.0
SV9100 Networking Manual 3-13
Step 3: K-CCIS Activation

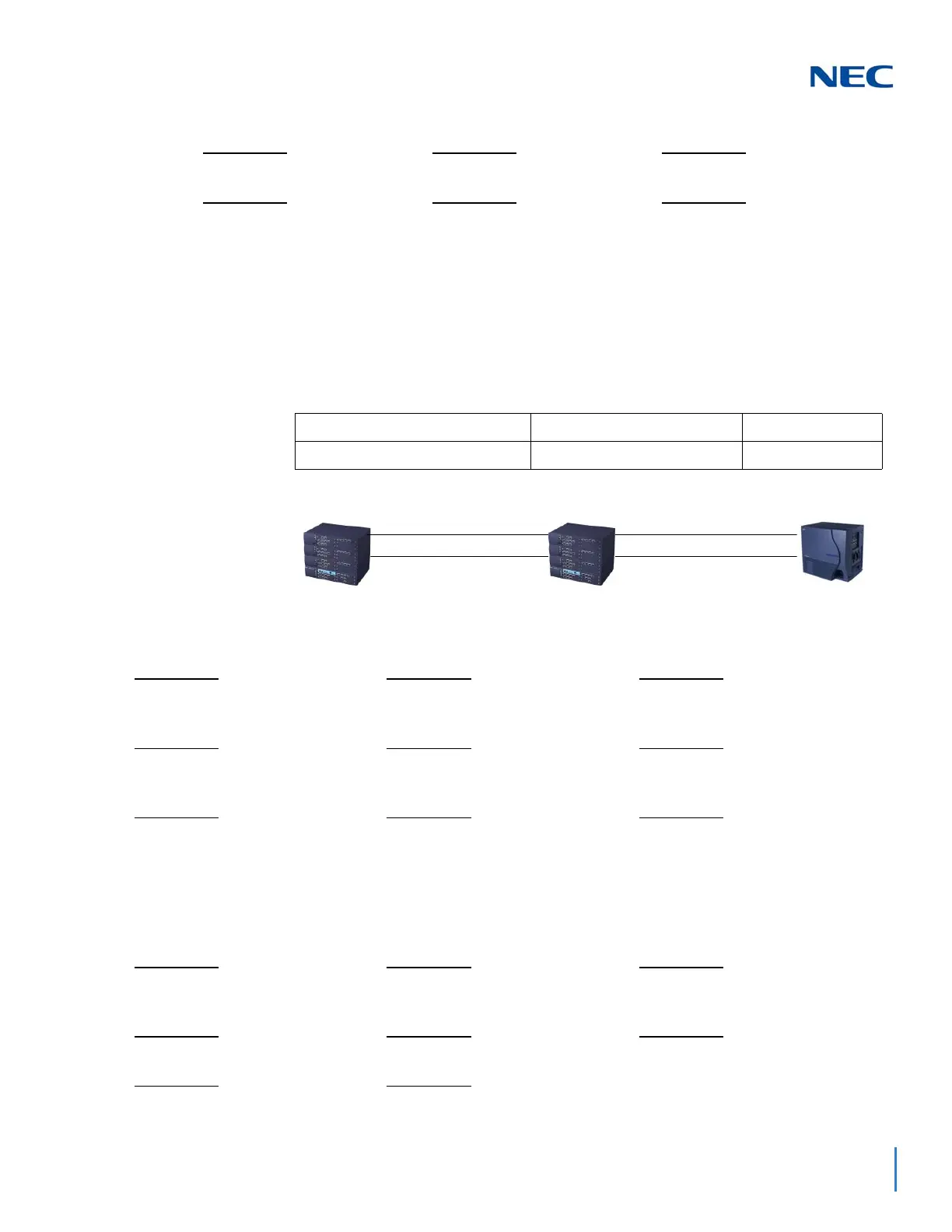

The following diagram provides an example of Programs and item numbers that
are assigned for K-CCIS. The example assumes that Step 1: T1 Tie Lines and
Step 2: Open Number Plan are completed.
PRG 44-05-02 PRG 44-05-02 PRG 44-05-02
F-Route TBL1; Delete Digit = 3 F-Route TBL2: Delete Digit = 3 F-Route TBL2; Delete Digit = 3
PRG 44-05-09 PRG 44-05-09 PRG 44-05-09
F-Route TBL2; Max Digit = 6 F-Route TBL1: Max Digit = 6 F-Route TBL2; Max Digit = 6
F-Route TBL3: Max Digit = 6
 Before moving to the next step, test the T1 Tie lines and the Open Numbering Plan.
DSTCCH = Destination Point Code CCH = Control Channel Handler TRK = Trunk
ORGCCH = Originating Point Code TG = Trunk Group PRG = Program
PC00001
101~130
PC00002
201~230
PC00003
301~330
TG 10 TG 10
UNIVERGE
SV9100
UNIVERGE
SV9100
Electra Elite
IPK II
(101s) (201s) (301s)
TG 11 TG 10
TG 10 TG 10 TG 11 TG 10
CCH
CCH
PRG 14-13-01 PRG 14-13-01 PRG 14-13-01
TG10 = CCIS Route ID 1 TG10 = CCIS Route ID 1 TG10 = CCIS Route ID 1
TG11 = CCIS Route ID 2
PRG 14-14-01 PRG 14-14-01 PRG 14-14-01
TRK 001~023 = 1~23 TRK 001~023 = 1 ~ 23 TRK 001~023 = 1~23
TRK 025~047 = 1 ~ 23
PRG 14-05-01 PRG 14-05-01 PRG 14-05-01
TRK 001~024 = 10 TRK 001~023 = 10 TRK 001~024 = 10
TRK 024 = 00 TRK 024 = 00 TRK 024 = 00
Priority = TRK 001~024 = 024~001 Priority = TRK 001~024 = 024~001 Priority = TRK 001~024 = 024~001
TRK 025~048 = 11
TRK 048 = 00
Priority = TRK 025~048 = 048~025
PRG 22-02-01 PRG 22-02-01 PRG 22-02-01
TRK 001~024 = Tie TRK 001~024 = Tie TRK 001~024 = Tie
TRK 025~048 = Tie
PRG 50-01-01 PRG 50-01-01 PRG 50-01-01
CCIS Availability = Yes CCIS Availability = Yes CCIS Availability = Yes
PRG 50-02-01 PRG 50-02-01
CCIS Route ID1 = TRK 024 CCIS Route ID1 = TRK 024
CCIS Route ID2 = TRK 048
