Introduction
18
NETGEAR ProSAFE VPN Firewall FVS318G v2
temperatures for the VPN firewall, see Appendix A, Default Settings and Technical
Specifications.
Wall-Mount the VPN Firewall with the Mounting Kit
Use the mounting kit for the VPN firewall to install the appliance on a wall. Attach the
mounting brackets using the hardware that is supplied with the mounting kit.

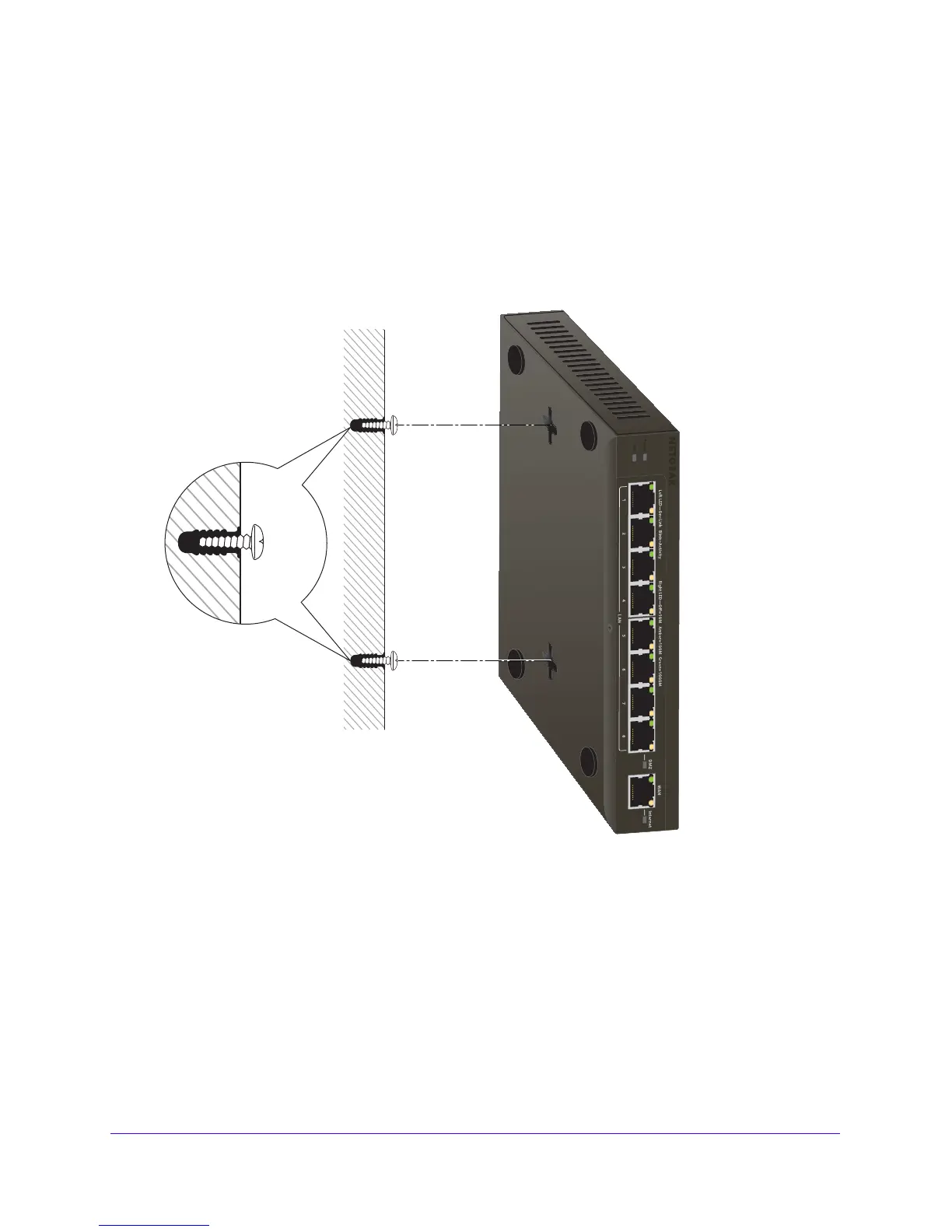

Figure 5. Wall mounting
Before mounting the VPN firewall to a wall, verify the following:
• You are using the correct screws (supplied with the installation kit).
• The wall on wh
ich you plan to mount the VPN firewall is suitably located.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR FVS318G and is the answer not in the manual?

NETGEAR FVS318G Specifications

General IconGeneral
Power requirements12V DC, 1.5A
Firewall throughput250 Mbit/s
Maximum data transfer rate1000 Mbit/s
HTTP performance6000 transactions/sec
Wi-FiNo
DHCP serverYes
Number of VLANs256
VPN tunnels quantity12
WAN connectionEthernet (RJ-45)
Connectivity technologyWired
Ethernet LAN (RJ-45) ports9
Ethernet DMZ ports quantity1
Routing protocolsRIP-1, RIP-2
Supported network protocolsTCP/IP, UDP, ICMP, PPPoE
VPN supportIPsec (ESP), IKE, PKI, HTTPS
Security algorithms128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1
Internal memory128 MB
Flash memory32 MB
Storage media typeFlash
Processor frequency300 MHz
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 45 °C
Cables includedLAN (RJ-45)
Weight and Dimensions IconWeight and Dimensions
Weight590 g
Dimensions (WxDxH)190 x 125 x 35 mm
