IPv4 and IPv6 Internet and Broadband Settings
51
NETGEAR ProSAFE VPN Firewall FVS318G v2

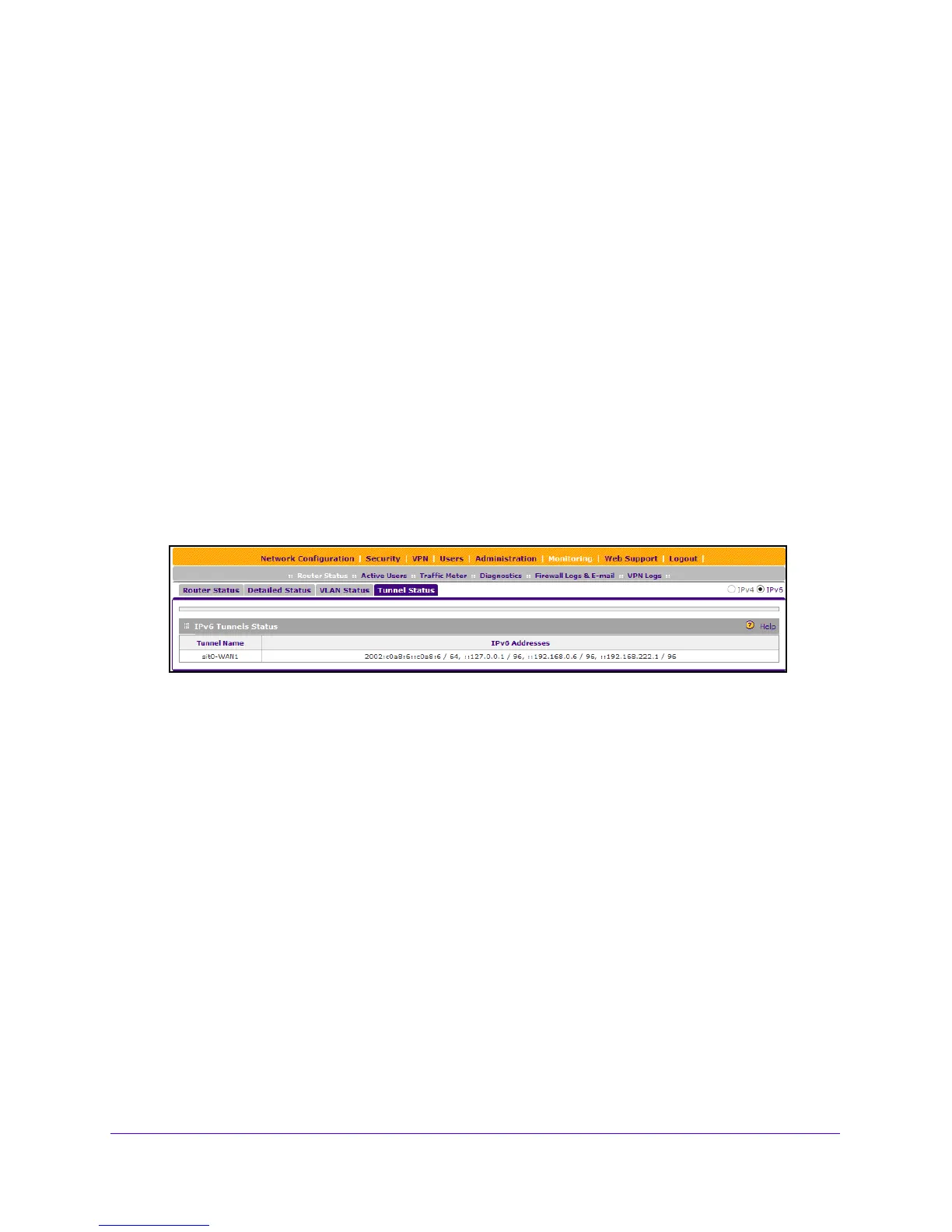

View the Tunnel Status and IPv6 Addresses
The IPv6 Tunnel Status screen displays the status of all active 6to4 and ISATAP tunnels and
their IPv6 addresses.
To view the status of the tunnels and IPv6 addresses:
1. Log in to the unit:
a. In the address field of any of the qualified web browsers, enter
https://192.168.1.1.
The NETGEAR Configuration Manager Login screen d
isplays.
b. In the Username
field, enter admin and in the Password / Passcode field, enter
password.
Use lowercase letters. If you changed the password, enter your personalized
password. Leave the domain as it is (geardomain).
c. Click
the Logi
n button.
The Router Status screen displays. After five minutes of inactivity
, which is the default
login time-out, you are automatically logged out.
2. Select Moni
toring
> Router Status > Tunnel Status.
3. View the IPv6 Tunnel Status table fields:
• Tunnel Name. The tunnel name for the 6to4 tunnel is always sit0-WAN1 (SIT st
ands
for simple Internet transition); the tunnel name for an ISATAP tunnel is isatapx-LAN,
in which x is an integer.
• IPv6 Address. T
he IPv6 address of the local tunnel endpoint.
Configure Stateless IP/ICMP Translation
Stateless IP/ICMP Translation (SIIT) is a transition mechanism algorithm that translates
between IPv4 and IPv6 packet headers. Using SIIT, an IPv6 device that does not use a
permanently assigned IPv4 addresses can communicate with an IPv4-only device.
SIIT functions with IPv4-translated addresses, which are addresses in the format
0
::ffff:0:0:0/96 for IPv6-enabled devices. You can substitute an IPv4 address in the format
a.b.c.d for part of the IPv6 address so that the IPv4-translated address becomes
0::ffff:0:a.b.c.d/96.
For SIIT to function, the routing mode must be IPv4 / IPv6. NETGEAR’
s implementation of
SIIT lets you enter a single IPv4 address on the SIIT screen. This IPv4 address is then used
