LAN Configuration
69
NETGEAR ProSAFE VPN Firewall FVS318G v2

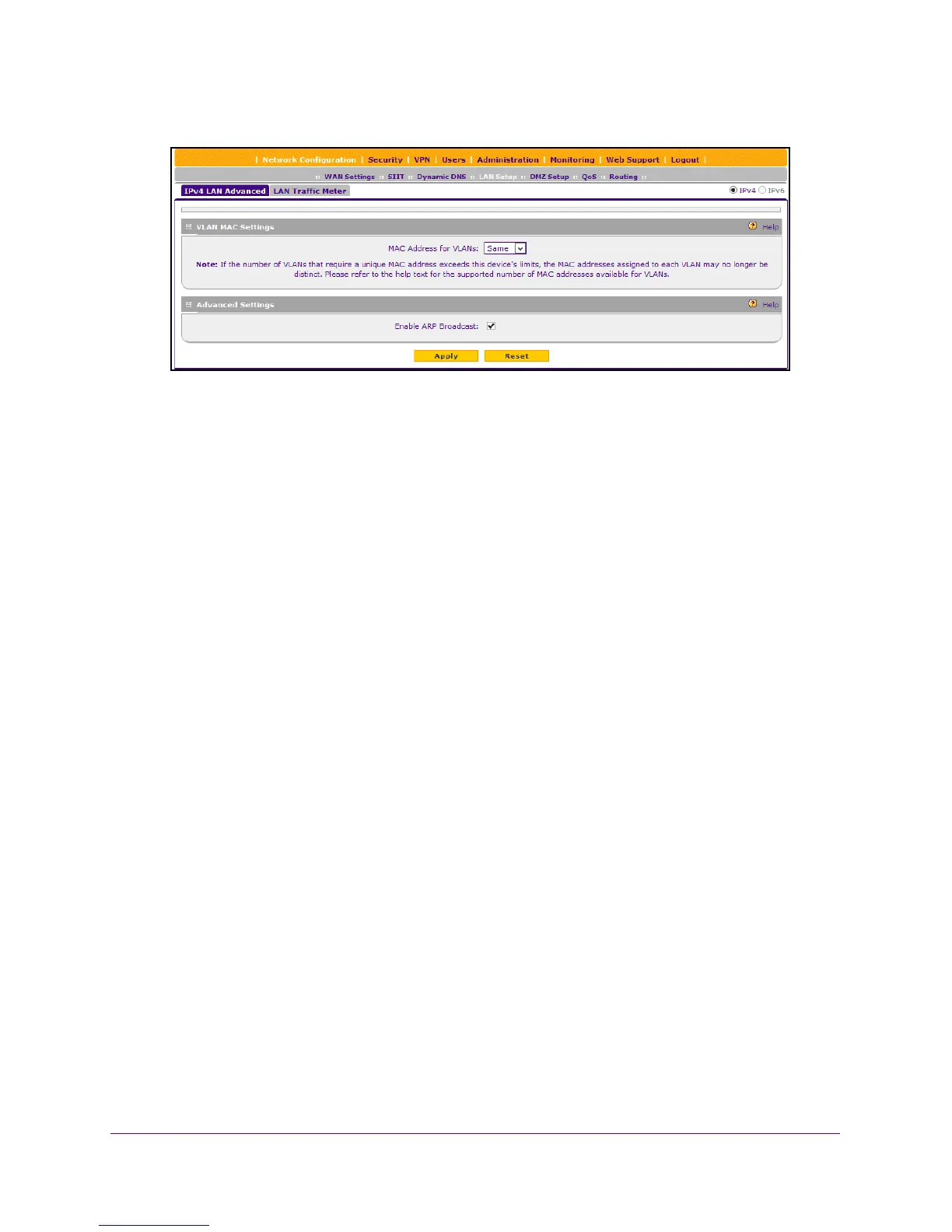

3. In the upper middle of the LAN Setup screen, click the Advanced option arrow.
4. From the MAC
Address for VLANs list, select Unique.
The default is Same.
5. (Optional) Disable
the broadcast of ARP packets for the default VLAN by clearing the
Enable ARP Broadcast check box.
The broadcast of ARP packets is enabled by default for the default VLAN.
6. Click the Ap
ply button.
Your settings are saved.
Configure IPv4 Multihome LAN IP Addresses on the
Default VLAN
If computers on your LAN use different IPv4 networks (for example, 172.124.10.0 or
192.168.200.0), you can add aliases to the LAN ports and give computers on those networks
access to the Internet, but you can do so only for the default VLAN. The IP address that is
assigned as a secondary IP address must be unique and cannot be assigned to a VLAN.
Secondary IP addresses cannot be configured in the DHCP server. The host
s on the
secondary subnets must be manually configured with the IP addresses, gateway IP address,
and DNS server IP addresses.
Make sure that any secondary LAN addresses are different from the
primary LAN, WAN, and
DMZ IP addresses and subnet addresses that are already configured on the VPN firewall.
The following is an example of correctly configured IPv4 addresses:
• W
AN IP address. 10.0.0.1 with subnet 255.0.0.0
• DMZ IP address
. 176.16.2.1 with subnet 255.255.255.0
• Primary LAN IP address. 1
92.168.1.1 with subnet 255.255.255.0
• Secondary LAN IP address. 192
.168.20.1 with subnet 255.255.255.0
To add a secondary LAN IPv4 address:
1. Log in to the unit:
