LAN Configuration
94
NETGEAR ProSAFE VPN Firewall FVS318G v2
• WAN IP address. 2000::e246:9aff:fe1d:1a9c with a prefix length of 64
• DMZ IP address
. 176::e246:9aff:fe1d:a1bc with a prefix length of 64
• Primary LAN IP address. FEC0::1 with
a prefix length of 10
• Secondary
LAN IP address. 2001:db8:3000::2192 with a prefix length of 10
To add a secondary LAN IPv6 address:
1. Log in to the unit:
a. In the address field of any of the qualified web browsers, enter
https://192.168.1.1.
The NETGEAR Configuration Manager Login screen displays.
b. In the User
name field, enter admin and in the Password / Passcode field, enter
password.
Use lowercase letters. If you changed the password, enter your persona
lized
password. Leave the domain as it is (geardomain).
c. Click
the L
ogin button.
The Router Status screen displays. After five minutes of inactivity,
which is the default
login time-out, you are automatically logged out.
2. Select Network
Confi
guration > LAN Setup > LAN Multi-homing.

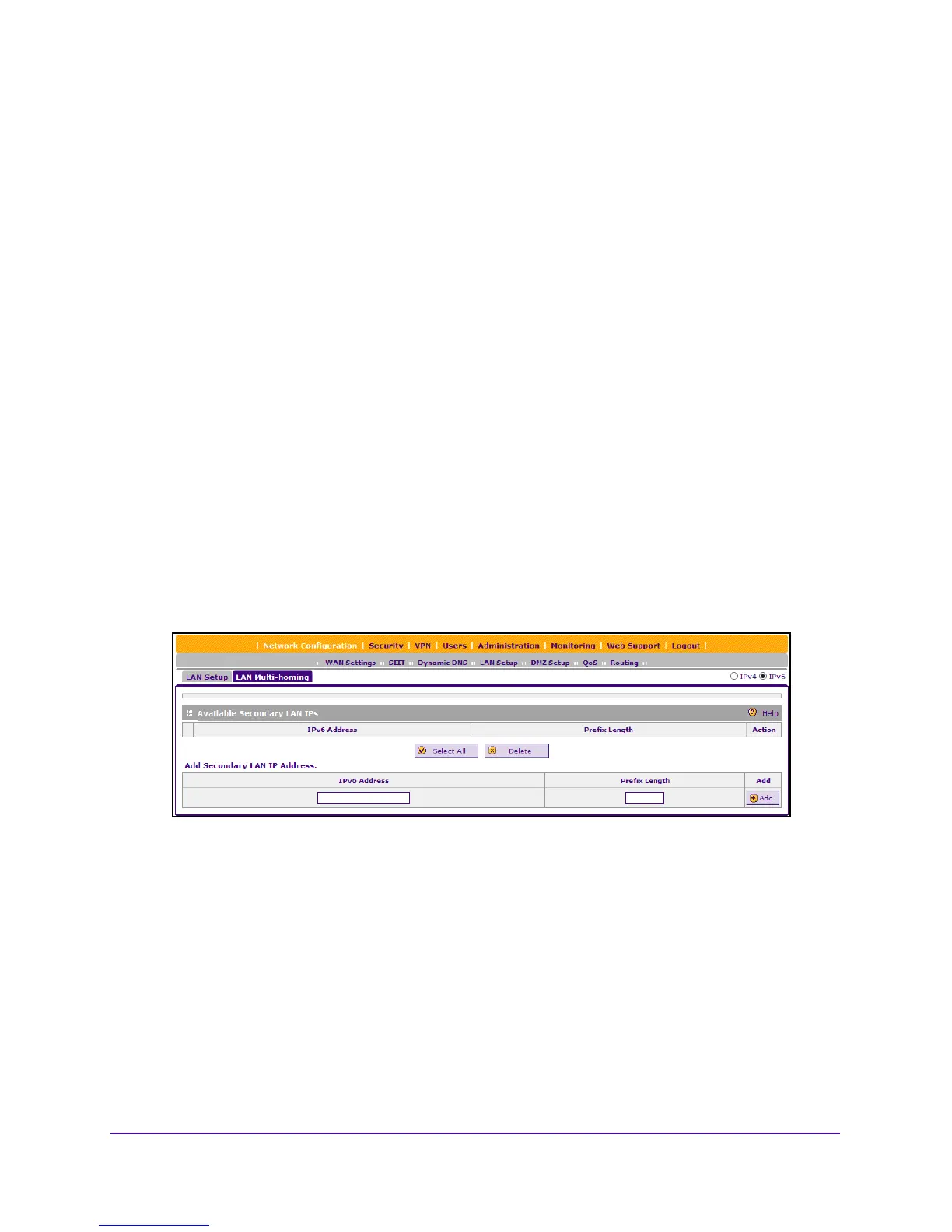

The LAN Multi-homing screen displays.
3. In the upper right of the screen, select the IPv6
radio button.
The Available Secondary LAN IPs table displays the secondary LAN IP
addresses added
to the VPN firewall.
4. In the Add Secondary LAN IP Address section, enter the following
settings:
• IPv6 Address. Enter the secondary address that you want to assign to the LAN
ports.
• Prefix Length. Enter th
e prefix length for the secondary IP address.
5. Click the Add
table button.
6. Repeat St
ep 3 and Step 4 for each secondary IP address that you want to add to the
Available Secondary LAN IPs table.
To edit a secondary LAN IP address:
1. Log in to the unit:
