Servicing Processors (FRU)
Servicing FRUs 123

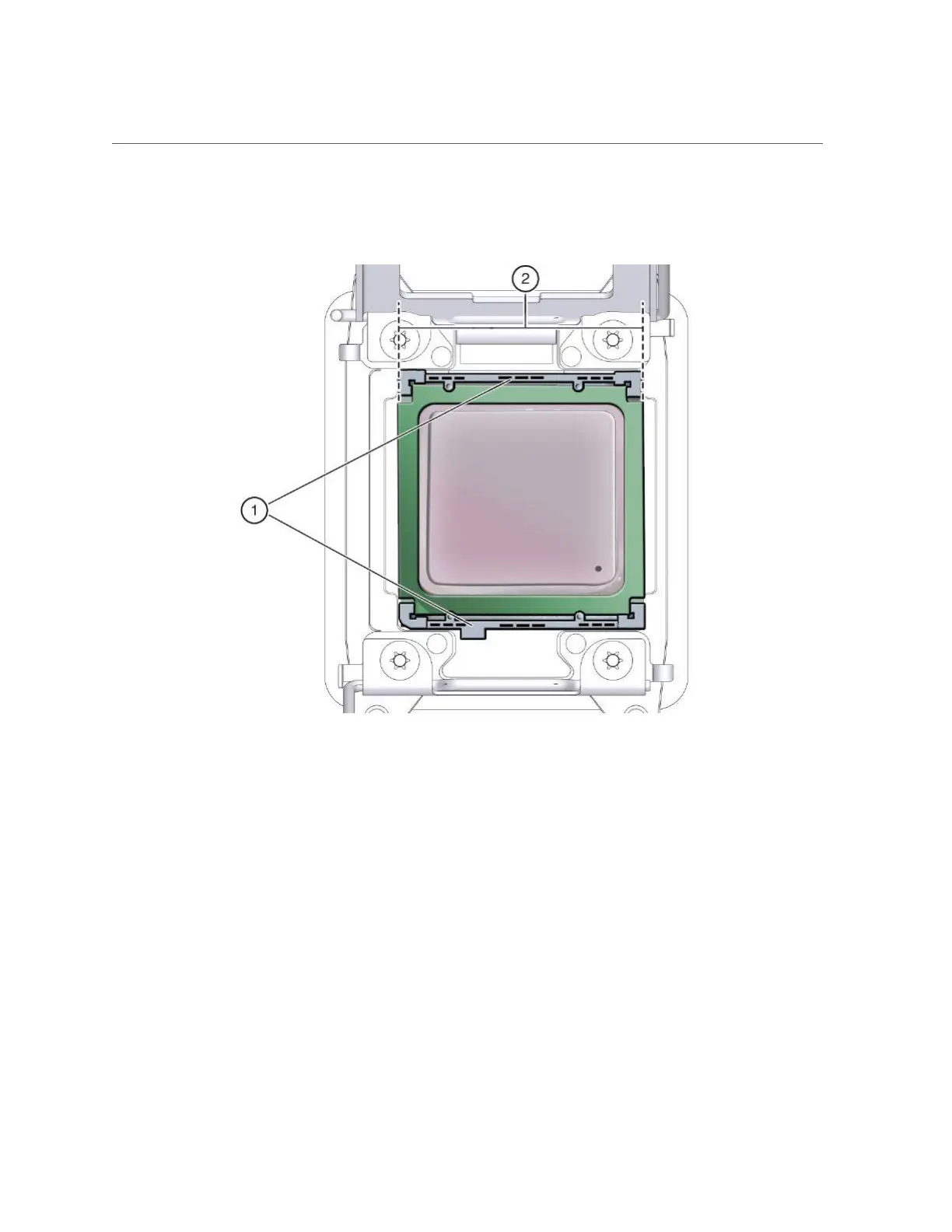

FIGURE 25
Larger Processor Installed in a Motherboard Processor Socket
Figure Legend
1
Processor alignment brackets
2
Processor left and right edges extend beyond alignment bracket boundaries
After you have determined the size of the processor installed in your server, select the correct
processor removal and replacement tool. Like the processors, the processor removal and
replacement tool also comes in two sizes. The tool for the smaller processors (processors with
10 or fewer cores) is color-coded green. The tool for the larger processors (12 or more cores) is
color-coded pink. See Figure 26.
