Servicing Processors (FRU)
124 Oracle Server X6-2 Service Manual • June 2016

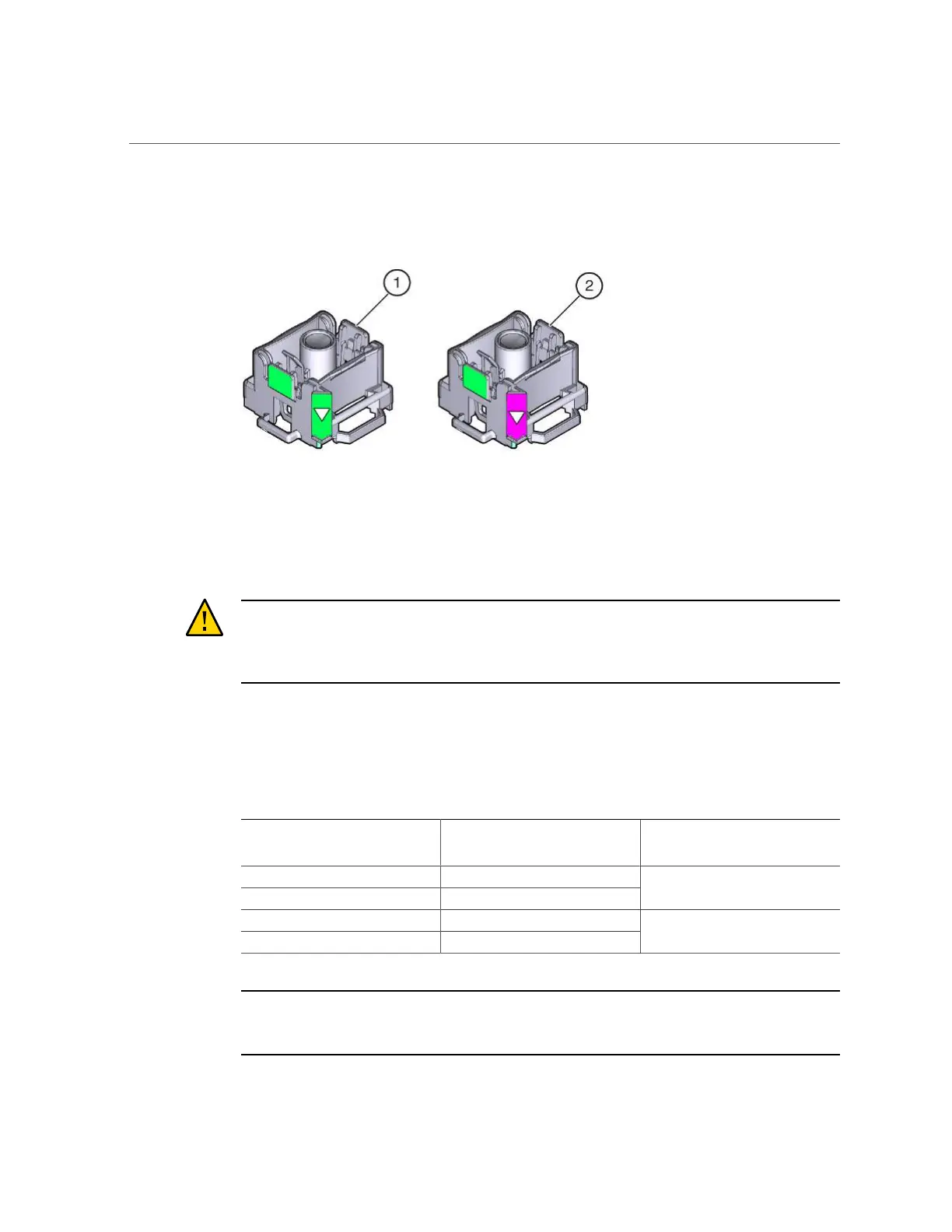

FIGURE 26
Color-Coded Processor Removal and Replacement Tools
Figure Legend
1
Green, color-coded removal and replacement tool for the smaller processors-models (10 cores or less)
2
Pink, color-coded removal and replacement tool for the larger processor-models (12 cores or more)
Caution - The pink color-coded processor removal and replacement tool must be used only
with the larger processors (12 cores or more). Likewise, the green color-coded removal and
replacement tool must be used only with smaller processors (10 cores or less); otherwise, the
processor or the processor socket might be damaged.
The following table provides an easy reference for matching a processor (by number of cores or
model number) to the correct processor removal and replacement tool. The processor removal
and replacement tool part number is also recorded on the tool.
TABLE 15
Processor Model Numbers by Number of Cores
Processor Cores Processor Model Number Processor Removal and
Replacement Tool Color Code and
Part Number
6-core E5-2643 V4
10-core E5-2630 V4
Green, part number G29477-002 or
later
14-core E5-2690 V4
22-core E5-2699 V4
Pink, part number G54233-001 or
later
Note - The correct processor removal and replacement tool is included in the box with the
replacement processor. Additionally, both removal and replacement tools ship with replacement
motherboards.
