Remove a Processor
126 Oracle Server X6-2 Service Manual • June 2016
Note - When the Fault Remind button is pressed, a LED located next to the Fault Remind
button lights green to indicate that there is sufficient voltage present in the fault remind circuit
to light any fault LEDs that were lit due to a failure. If this LED fails to light when you press
the Fault Remind button, it is likely that the capacitor powering the fault remind circuit has
lost its charge. This can happen if the Fault Remind button is pressed for a long time with fault
LEDs lit or if power has been removed from the server for more than 15 minutes.
The processor fault LEDs are located next to the processor(s).
■
If the processor fault LED is off, then the processor is operating properly.
■
If the processor fault LED is on (amber), then the processor is failed and should be replaced.

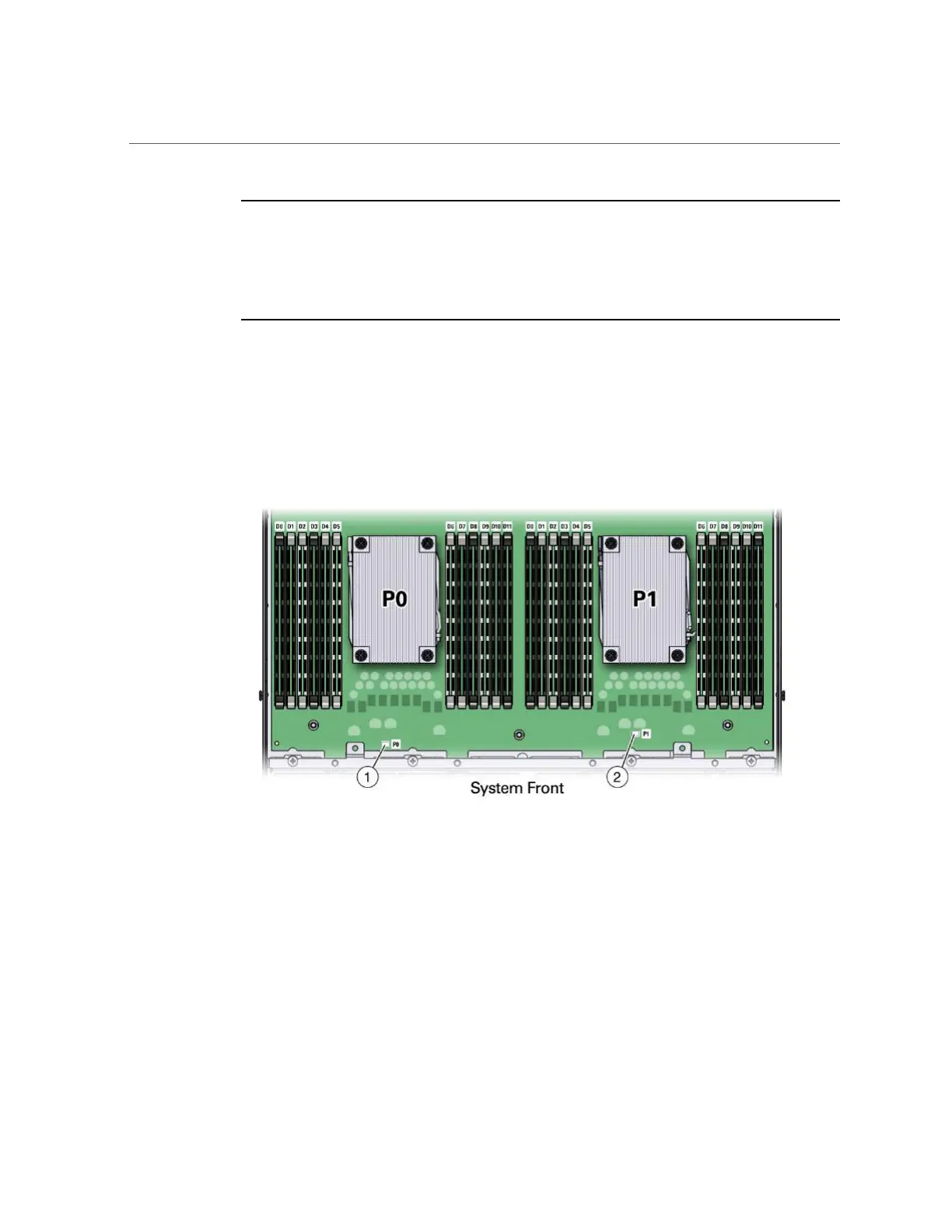

FIGURE 27
Processor Fault LEDs Locations
Figure Legend
1
Processor 0 (P0) fault LED
2
Processor 1 (P1) fault LED
6.
Gently press down on the top of the heatsink to counteract the pressure of the
captive spring-loaded screws that secure the heatsink to the motherboard and
To Next Page
