Install the Internal HBA Card in PCIe Slot 4
Servicing FRUs 147
3.

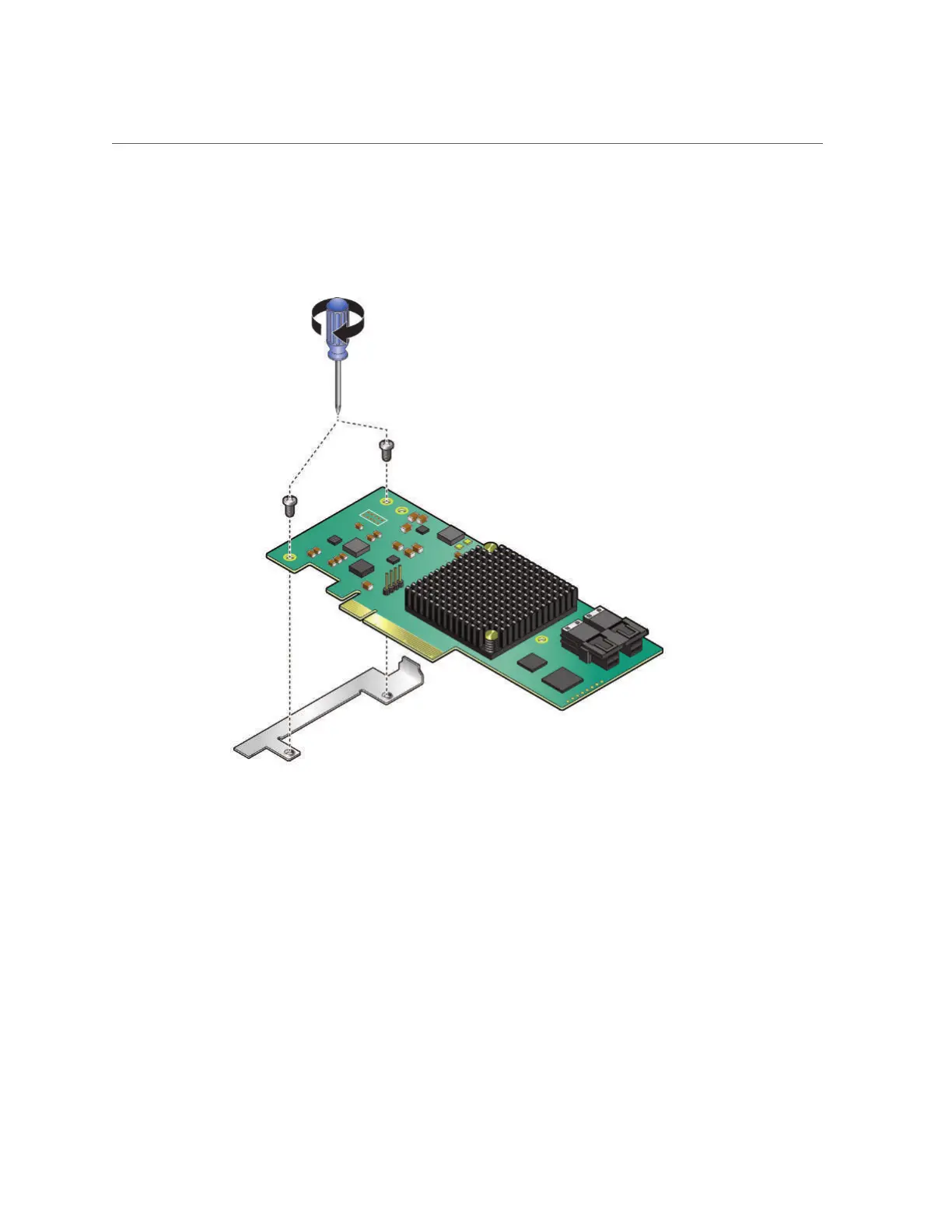

Install the special fitted bracket that was removed in Step 5 in “Remove the
Internal HBA Card From PCIe Slot 4” on page 141.
4.
Carefully guide the SAS cables and super capacitor cable that connect to the
disk backplane and the super cable through the chassis mid-wall toward the
front of the server.
5.
Install the super capacitor into the server.
a.
Attach the reclosable fasteners supplied with the replacement super
capacitor to its underside.
b.
Connect the super capacitor cable to the super capacitor [1].
